GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

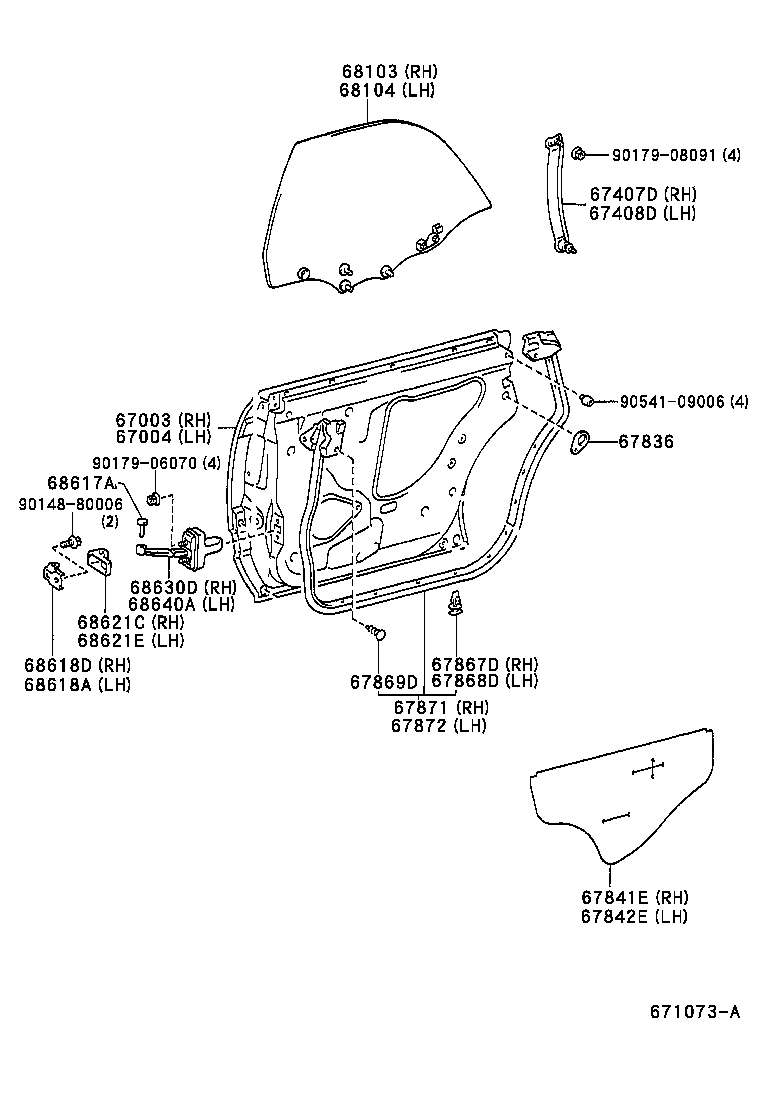

ILLUST NO. 2 OF 2(9707- )HT

Click highlighted areas on diagram

diagram 67003 67004 67407D 67408D 67836 67841E 67842E 67867D 67868D 67869D 67871 67872 68103 68104 68617A 68618A 68618D 68621C 68621E 68630D 68640A 9014880006 9017906070 9017908091 9054109006
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-30510

GS151,JZS155..HT

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-30480

GS151,JZS155..HT

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-30140

GS151,JZS155..HT

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-30130

GS151,JZS155..HT

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-32010

GS151,JZS155..HT

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-30350

GS151,JZS155..HT

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-30210

GS151,JZS155..HT

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

GS151,JZS155..HT

 16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

GS151,JZS155..HT

 16
67869D - CLIP, DOOR WEATHERSTRIP
67869-30050

GS151,JZS155..HT

 10
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-30210

GS151,JZS155..HT

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-30220

GS151,JZS155..HT

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-30490

GS151,JZS155..HT

*UVCTT,T=5.0,BRONZE

 1
68103-30500

GS151,JZS155..HT

*UVCTT,T=5.0,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-30500

GS151,JZS155..HT

*UVCTT,T=5.0,GREEN

 1
68104-30490

GS151,JZS155..HT

*UVCTT,T=5.0,BRONZE

 1
68617A - PIN, REAR DOOR CHECK
68617-50010

GS151,JZS155

 2
68618A - BRACKET, REAR DOOR CHECK ARM, LH
68618-50010

GS151,JZS155

 1
68618D - BRACKET, REAR DOOR CHECK ARM, RH
68618-50010

GS151,JZS155

 1
68621C - COVER, REAR DOOR CHECK, RH
68621-50030

GS151,JZS155

 1
68621E - COVER, REAR DOOR CHECK, LH
68621-50030

GS151,JZS155

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-30140

GS151,JZS155..HT

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-30050

GS151,JZS155..HT

 1
Common parts
90148-80006
90179-06070
90179-08091
90541-09006

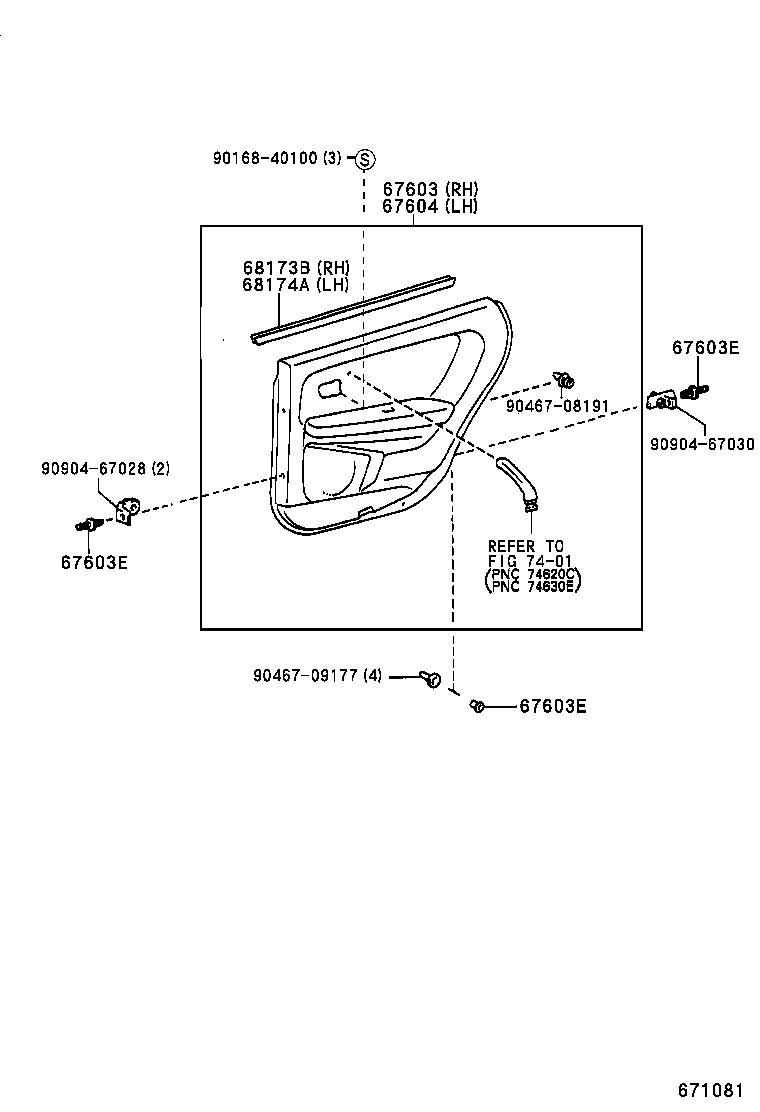

ILLUST NO. 1 OF 2(9707- )HT

Click highlighted areas on diagram

diagram 67603 67603E 67603E 67603E 67604 68173B 68174A 7401 9016840100 9046708191 9046709177 9090467028 9090467030
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3F310E0

GS151

ANTELOPE,TRIM4#

 1
67630-3F310B0

GS151

DK.BLUE GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3F330B0

GS151

DK.BLUE GRAY,TRIM1#

 1
67640-3F330E0

GS151

ANTELOPE,TRIM4#

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-30080

GS151,JZS155..HT

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-30080

GS151,JZS155..HT

 1
Common parts
90168-40100
90467-08191
90467-09177
90904-67028
90904-67030
Linked diagrams
7401
