GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )HT

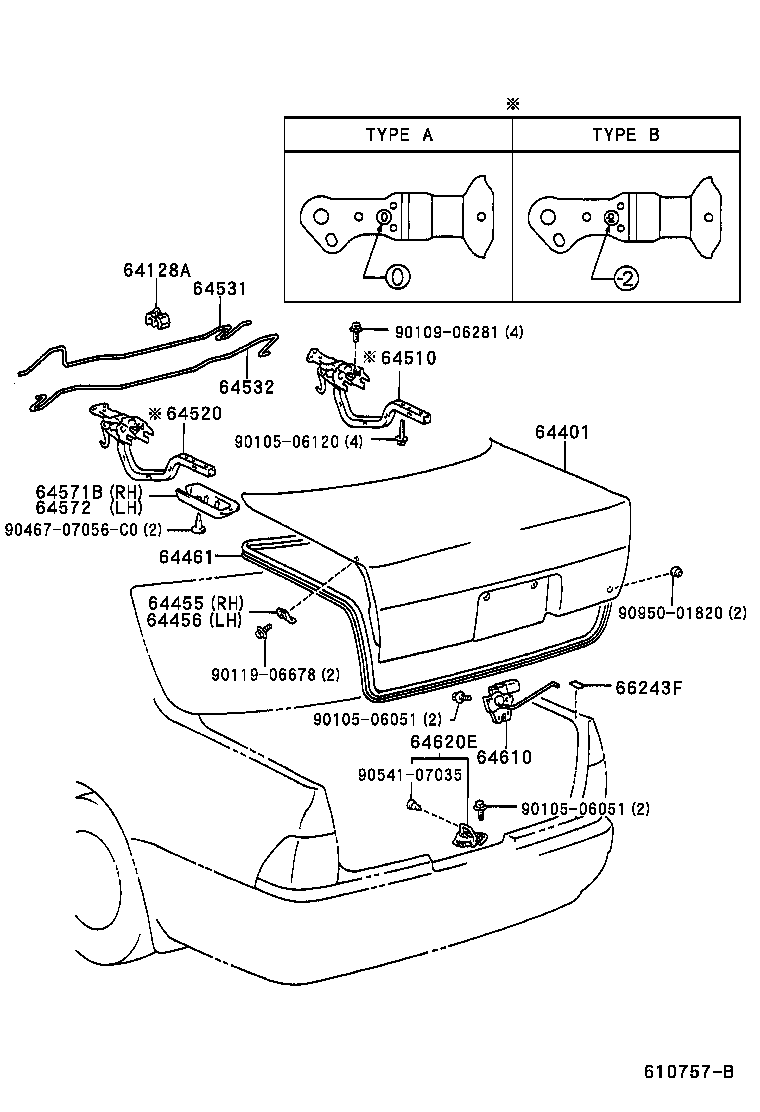

Click highlighted areas on diagram

diagram 64128A 64401 64455 64456 64461 64510 64520 64531 64532 64571B 64572 64610 64620E 66243F 9010506051 9010506051 9010506120 9010906281 9011906678 9046707056C0 9054107035 9095001820
Part # Description Qty Price
64128A - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64128-30050

GS151,JZS155

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-3A010

GS151,JZS155..HT

 1
64455 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64455-50010

GS151,JZS155..HT

 1
64456 - CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64456-50010

GS151,JZS155..HT

 1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30250

GS151,JZS155..HT

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30340

GS151,JZS155..HT

TYPE B:REFER TO ILLUSTRATION

 1
64510-30310

GS151,JZS155..HT

TYPE A:REFER TO ILLUSTRATION

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64510-30340

GS151,JZS155..HT

TYPE B:REFER TO ILLUSTRATION

 1
64510-30310

GS151,JZS155..HT

TYPE A:REFER TO ILLUSTRATION

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-30220

GS151,JZS155..HT

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-30220

GS151,JZS155..HT

 1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-30060

GS151,JZS155..HT

 1
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-30020

GS151,JZS155..HT

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-30150

GS151,JZS155..HT

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-30100

GS151

 1
64620-30100

GS151,JZS155

 1
66243F - PROTECTOR, REAR BODY, NO.1
66244-30040

GS151,JZS155..HT

 2
Common parts
90105-06051
90105-06120
90109-06281
90119-06678
90467-07056C0
90541-07035
90950-01820
