GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )HT

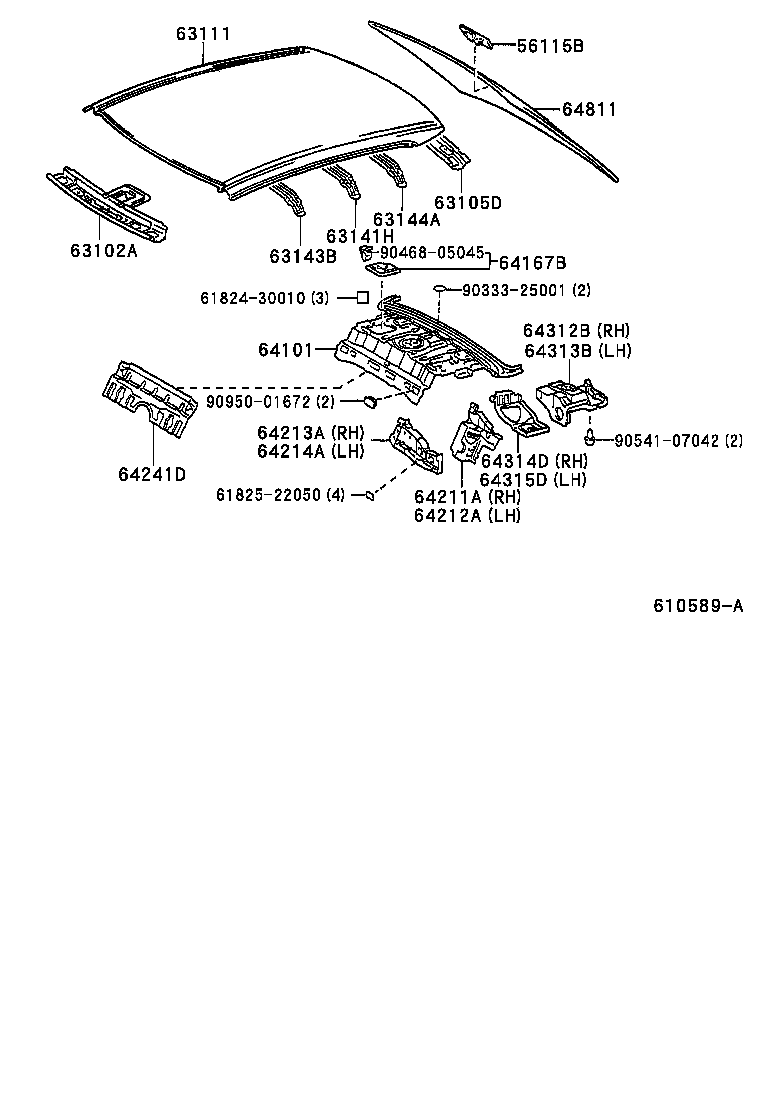

Click highlighted areas on diagram

diagram 56115B 6182430010 6182522050 63102A 63105D 63111 63141H 63143B 63144A 64101 64167B 64211A 64212A 64213A 64214A 64241D 64312B 64313B 64314D 64315D 64811 9033325001 9046805045 9054107042 9095001672
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30040

GS151,JZS155

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-30090

GS151,JZS155..HT

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-30060

GS151,JZS155..HT

 1
63111 - PANEL, ROOF
63111-30320

GS151,JZS155..HT

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-30130

GS151,JZS155..HT

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-30170

GS151,JZS155..HT

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-30060

GS151,JZS155..HT

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-30902

GS151,JZS155..HT

 1
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-30050

GS151,JZS155..HT

 1
64211A - STRAINER, PACKAGE TRAY TO FLOOR, RH
64211-30901

GS151,JZS155

 1
64212A - STRAINER, PACKAGE TRAY TO FLOOR, LH
64212-30901

GS151,JZS155

 1
64241D - PANEL, ROOM PARTITION
64241-30030

JZS155..LHD;GS151,JZS155..HT

 1
64312B - BRACKET, PACKAGE TRAY, RH
64312-30903

GS151,JZS155..HT

 1
64313B - BRACKET, PACKAGE TRAY, LH
64313-30903

GS151,JZS155..HT

 1
64314D - EXTENSION, PACKAGE TRAY BRACKET, RH
64314-30010

GS151,JZS155

 1
64315D - EXTENSION, PACKAGE TRAY BRACKET, LH
64315-30020

GS151,JZS155

 1
64811 - GLASS, BACK WINDOW
64801-3A420

GS151,JZS155..HT

*UVCEHTT,T=3.5,BRONZ

 1
64801-3A430

GS151,JZS155..HT

*UVCEHTT,T=3.5,GREEN

 1
Common parts
61824-30010
61825-22050
90333-25001
90468-05045
90541-07042
90950-01672
