GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

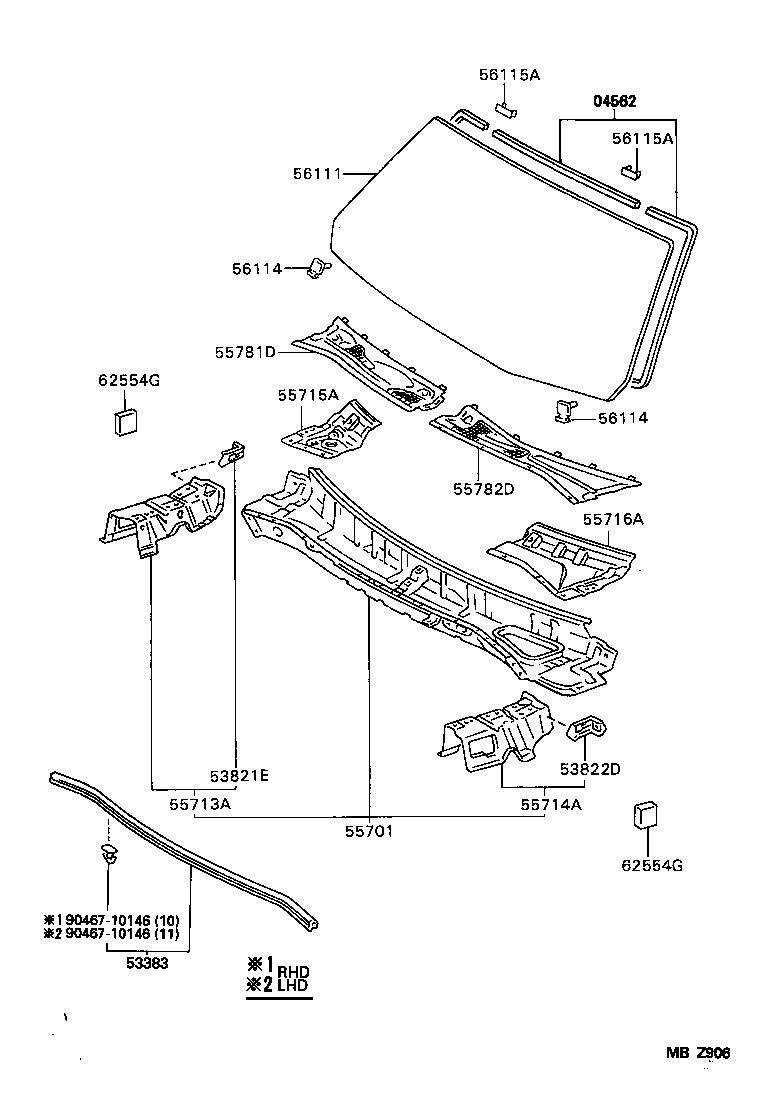

Click highlighted areas on diagram

diagram 04562 53383 53821E 53822D 55701 55713A 55714A 55715A 55716A 55781D 55782D 56111 56114 56114 56115A 56115A 62554G 62554G 9046710146 9046710146
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

GS151,JZS155

 1
53383 - SEAL, HOOD TO COWL TOP
53383-30130

GS151,JZS155..RHD

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-30040

GS151,JZS155..RHD

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-30050

GS151,JZS155..RHD

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-30160

GS151,JZS155..RHD

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-30120

GS151,JZS155..RHD

 1
56111 - GLASS, WINDSHIELD
56111-30890

GS151

*LAM,T=4.76,GREEN

 1
56111-3A340

GS151

*UVCL,T=4.76,BRONZE

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-30090

GS151,JZS155

 2
56114-50020

GS151,JZS155

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-30090

GS151,JZS155

 2
56114-50020

GS151,JZS155

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30040

GS151,JZS155

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30040

GS151,JZS155

 2
62554G - PAD, PILLAR, NO.4
62554-30010

GS151,JZS155

 2
62554G - PAD, PILLAR, NO.4
62554-30010

GS151,JZS155

 2
Common parts
90467-10146
