GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

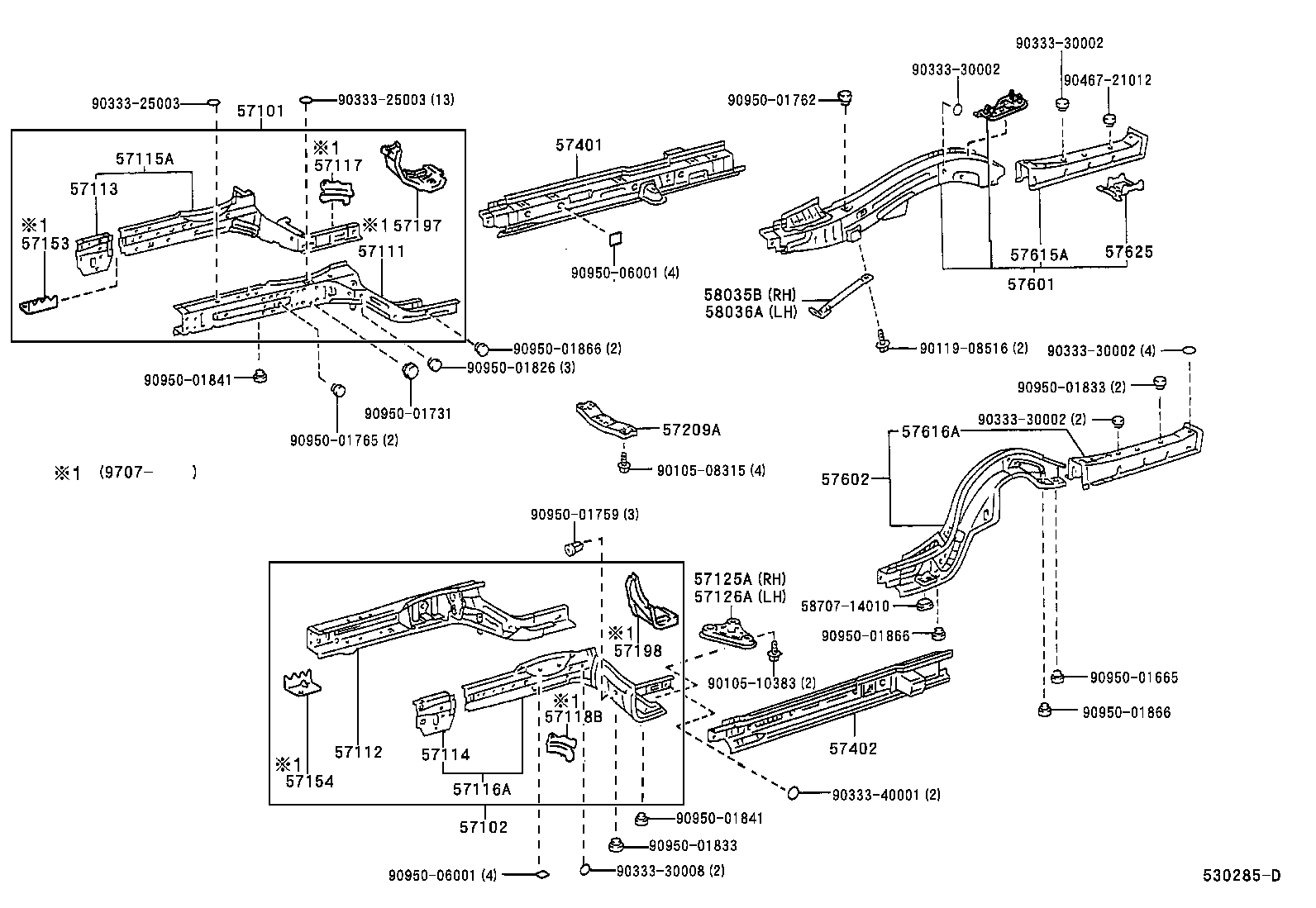

Click highlighted areas on diagram

diagram 57101 57102 57111 57112 57113 57114 57115A 57116A 57117 57118B 57125A 57126A 57153 57154 57197 57198 57209A 57401 57402 57601 57602 57615A 57616A 57625 58035B 58036A 5870714010 9010508315 9010510383 9011908516 9033325003 9033325003 9033330002 9033330002 9033330002 9033330002 9033330008 9033340001 9046721012 9095001665 9095001731 9095001759 9095001762 9095001765 9095001826 9095001833 9095001833 9095001841 9095001841 9095001866 9095001866 9095001866 9095006001 9095006001
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-30031

GS151,JZS155

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22080

GS151,JZS155

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22080

GS151,JZS155

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-30900

GS151,JZS155

 1
57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57117-22070

GS151,JZS155

 1
57125A - PLATE, STRUT BAR BRACKET, RH
57125-22070

GS151,JZS155

 1
57126A - PLATE, STRUT BAR BRACKET, LH
57126-22050

GS151,JZS155

 1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57153-30020

GS151,JZS155

 1
57197 - BOX, TORQUE, FRONT RH
57197-30021

GS151,JZS155

 1
57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57255-22300

GS151,JZS155

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-30900

GS151,JZS155

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-30901

GS151,JZS155

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22130

GS151,JZS155

 1
57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57625-22070

GS151,JZS155

 1
58035B - BRACE SUB-ASSY, REAR FLOOR PANEL, RH
58035-30030

GS151,JZS155

 1
58036A - BRACE SUB-ASSY, REAR FLOOR PANEL, LH
58036-30030

GS151,JZS155

 1
Common parts
58707-14010
90105-08315
90105-10383
90119-08516
90333-25003
90333-30002
90333-30008
90333-40001
90467-21012
90950-01665
90950-01731
90950-01759
90950-01762
90950-01765
90950-01826
90950-01833
90950-01841
90950-01866
90950-06001
