GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512- )

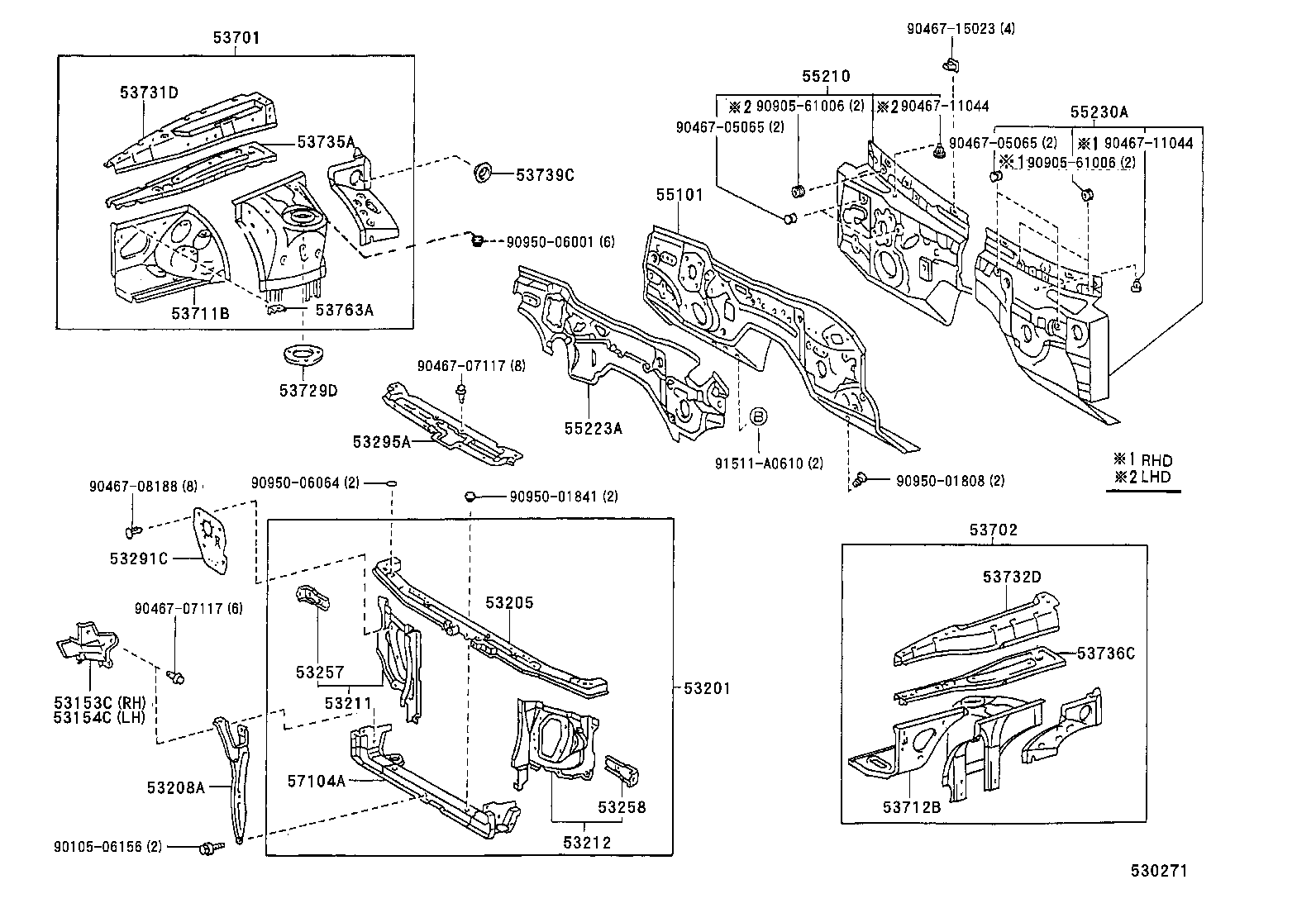

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-30080 |
GS151,JZS155 |
1 | ||
| 53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-30070 |
GS151,JZS155 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-30470 |
GS151,JZS155..HT |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-30908 |
GS151,JZS155 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53209-30200 |
GS151,JZS155 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-30904 |
GS151,JZS155..HT |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-30902 |
GS151,JZS155..HT |
1 | ||
| 53257 - BRACKET, FRONT END PANEL MOUNTING, RH | ||||
| 53257-30020 |
GS151,JZS155 |
1 | ||
| 53258 - BRACKET, FRONT END PANEL MOUNTING, LH | ||||
| 53257-30020 |
GS151,JZS155 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-30090 |
GS151,JZS155..HT |
2 | ||
| 53295A - DEFLECTOR, RADIATOR UPPER AIR | ||||
| 53293-30090 |
GS151,JZS155 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-30881 |
GS151,JZS155 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-30800 |
GS151,JZS155 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-30912 |
GS151,JZS155 |
1 | ||
| 53729D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 | ||||
| 53729-30040 |
GS151,JZS155 |
2 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-30904 |
GS151,JZS155 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-30903 |
GS151,JZS155 |
1 | ||
| 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH | ||||
| 53735-30060 |
GS151,JZS155 |
1 | ||
| 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH | ||||
| 53736-30060 |
GS151,JZS155 |
1 | ||
| 53739C - SEAL, FRONT FENDER APRON TO FRAME, REAR | ||||
| 53739-30060 |
GS151,JZS155 |
2 | ||
| 53763A - BRACKET, AIR CLEANER INLET MOUNTING | ||||
| 53763-22020 |
GS151,JZS155 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-3A210 |
GS151,JZS155..RHD |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-30230 |
GS151,JZS155..RHD |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-30110 |
GS151,JZS155..RHD |
1 | ||
| 55230A - INSULATOR ASSY, DASH PANEL, NO.4 | ||||
| 55230-30010 |
GS151,JZS155..RHD |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-30030 |
GS151,JZS155 |
1 | ||
| Common parts | ||||
| 90105-06156 | ||||
| 90467-05065 | ||||
| 90467-07117 | ||||
| 90467-08188 | ||||
| 90467-11044 | ||||
| 90467-15023 | ||||
| 90905-61006 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
| 90950-06001 | ||||
| 90950-06064 | ||||
| 91511-A0610 | ||||
