GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )HT

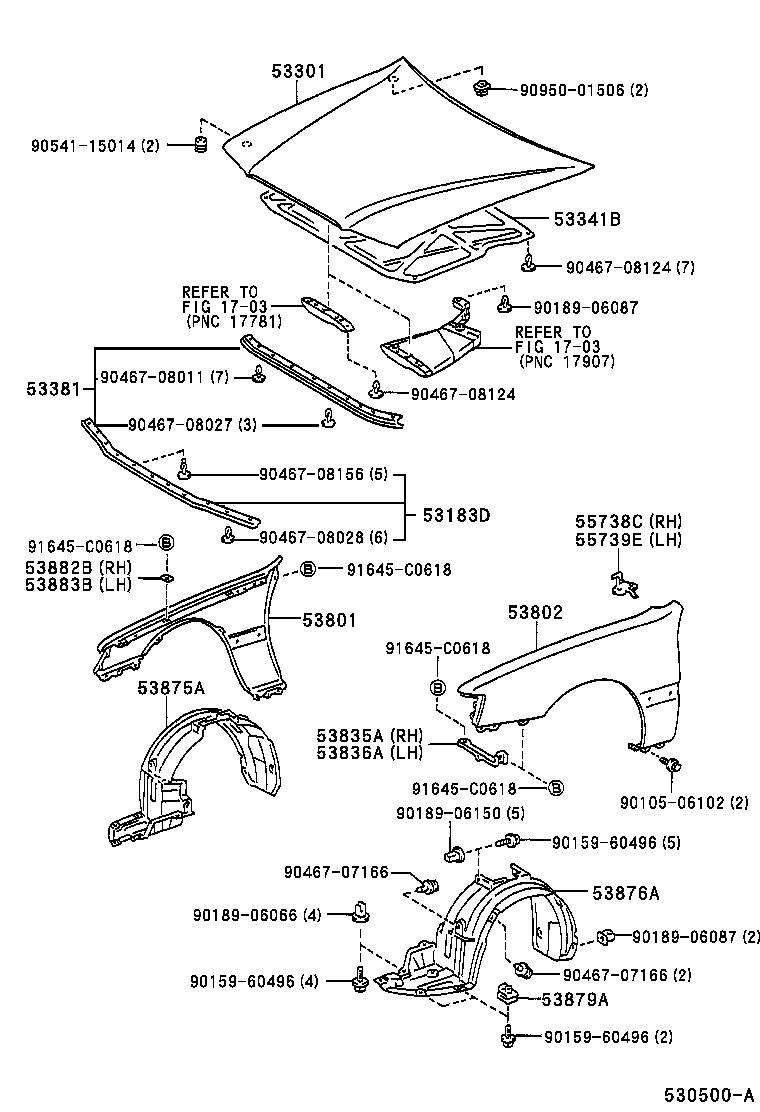

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-30040 |
GS151,JZS155..HT |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30280 |
GS151,JZS155..HT |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30180 |
GS151,JZS155 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30110 |
GS151,JZS155 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-3A720 |
GS151,JZS155..HT |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-3A840 |
GS151,JZS155..HT |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-30060 |
GS151,JZS155 |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53835-30060 |
GS151,JZS155 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-30140 |
GS151,JZS155..HT |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-30100 |
GS151,JZS155..HT |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
GS151,JZS155 |
4 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
GS151,JZS155 |
5 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
GS151,JZS155 |
5 | ||
| Common parts | ||||
| 90105-06102 | ||||
| 90159-60496 | ||||
| 90189-06066 | ||||
| 90189-06087 | ||||
| 90189-06150 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90467-08027 | ||||
| 90467-08028 | ||||
| 90467-08124 | ||||
| 90467-08156 | ||||
| 90541-15014 | ||||
| 90950-01506 | ||||
| 91645-C0618 | ||||
| Linked diagrams | ||||
| 1703 | ||||
