GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )

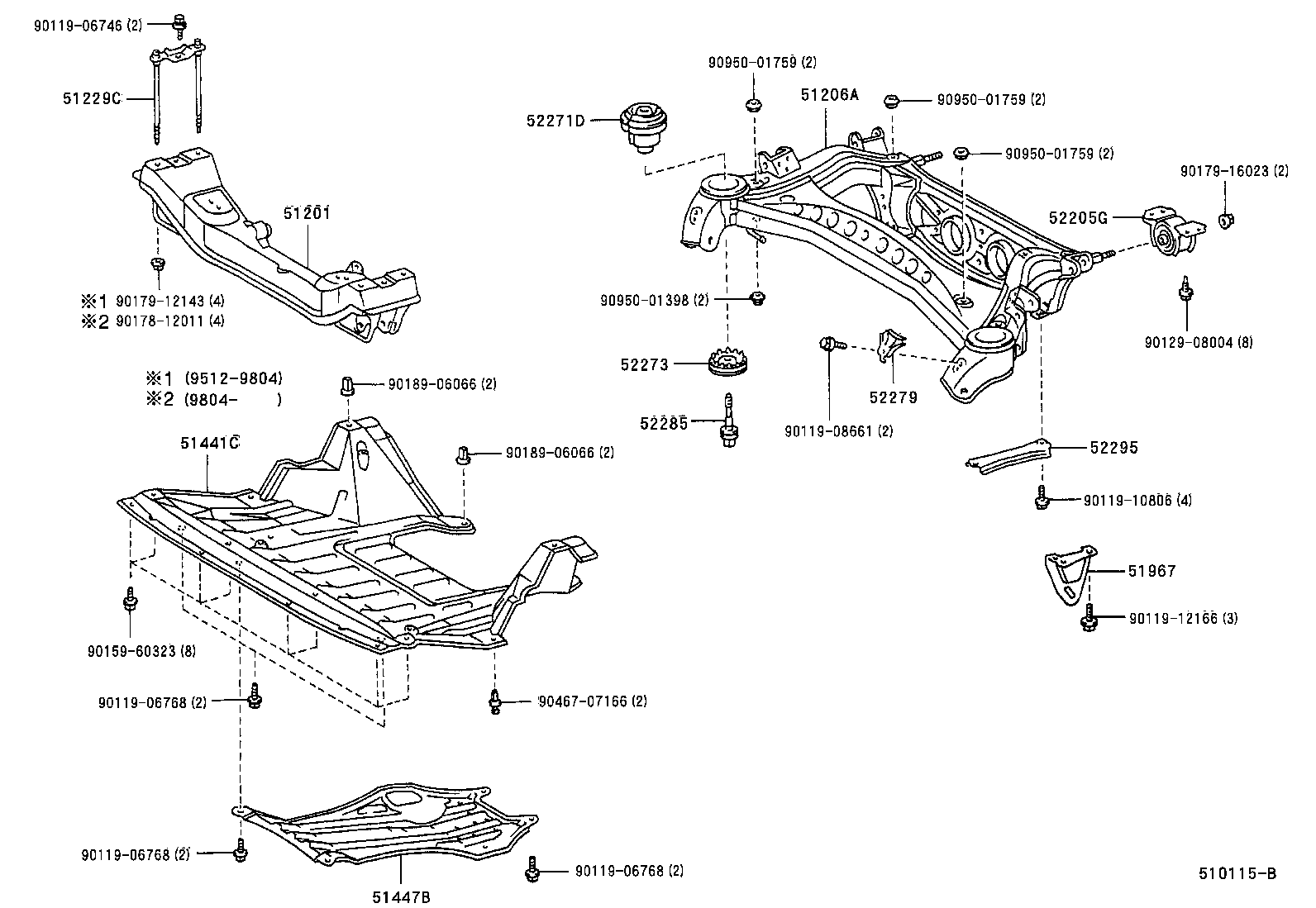

Click highlighted areas on diagram

diagram 51201 51206A 51229C 51441C 51447B 51967 52205G 52271D 52273 52279 52285 52295 9011906746 9011906768 9011906768 9011906768 9011908661 9011910806 9011912166 9012908004 9015960323 9017812011 9017912143 9017916023 9018906066 9018906066 9046707166 9095001398 9095001759 9095001759 9095001759
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-22907

GS151,JZS155..RHD

 1
51201-22909

GS151,JZS155..RHD

 1
51229C - PLATE, SUSPENSION MEMBER SET
51229-22060

GS151,JZS155

 2
51441C - COVER, ENGINE UNDER, RH
51441-30150

GS151,JZS155..HT

 1
51967 - HOOK, TRANSPORT, REAR
51968-30040

GS151,JZS155

 1
52205G - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-22030

GS151,JZS155

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-30060

GS151,JZS155

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-30050

GS151,JZS155

 2
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-22030

GS151,JZS155

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30030

GS151,JZS155

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30010

GS151,JZS155

 2
Common parts
90119-06746
90119-06768
90119-08661
90119-10806
90119-12166
90129-08004
90159-60323
90178-12011
90179-12143
90179-16023
90189-06066
90467-07166
90950-01398
90950-01759
