GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512- )

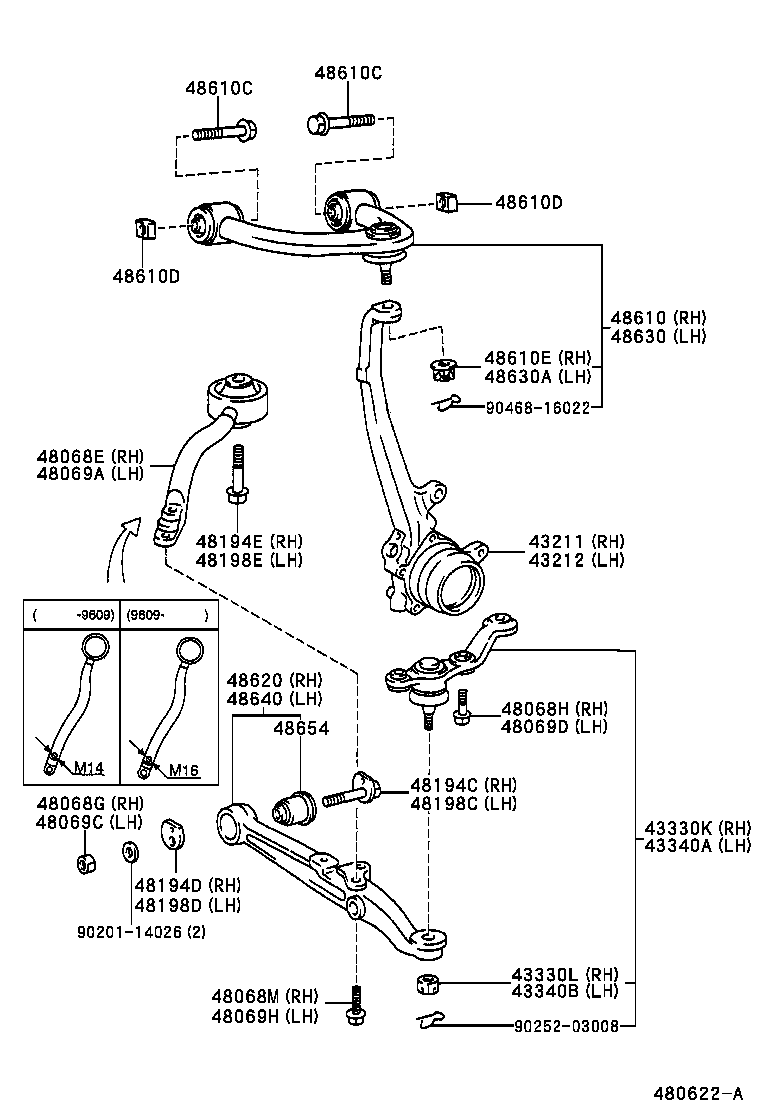

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30190 |
JZS155..ROY..GCC;GS151,JZS155..RHD |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30140 |
JZS155..ROY..GCC;GS151,JZS155..RHD |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39425 |
GS151,JZS155 |
1 | ||
| 43330-39385 |
GS151,JZS155 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14002 |
GS151,JZS155 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-39335 |
GS151,JZS155 |
1 | ||
| 43340-39295 |
GS151,JZS155 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14002 |
GS151,JZS155 |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90170-14012 |
GS151,JZS155 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
GS151,JZS155 |
2 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90170-14012 |
GS151,JZS155 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
GS151,JZS155 |
2 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-22040 |
GS151,JZS155 |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-14010 |
GS151,JZS155 |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 90901-05010 |
GS151,JZS155 |
1 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-22040 |
GS151,JZS155 |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-14010 |
GS151,JZS155 |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 90901-05010 |
GS151,JZS155 |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39045 |
GS151,JZS155 |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90119-10812 |
GS151,JZS155 |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90119-10812 |
GS151,JZS155 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
GS151,JZS155 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90173-10010 |
GS151,JZS155 |
4 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12002 |
GS151,JZS155 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-39025 |
GS151,JZS155 |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12002 |
GS151,JZS155 |
1 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30070 |
GS151,JZS155 |
2 | ||
| Common parts | ||||
| 90201-14026 | ||||
| 90252-03008 | ||||
| 90468-16022 | ||||
