GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

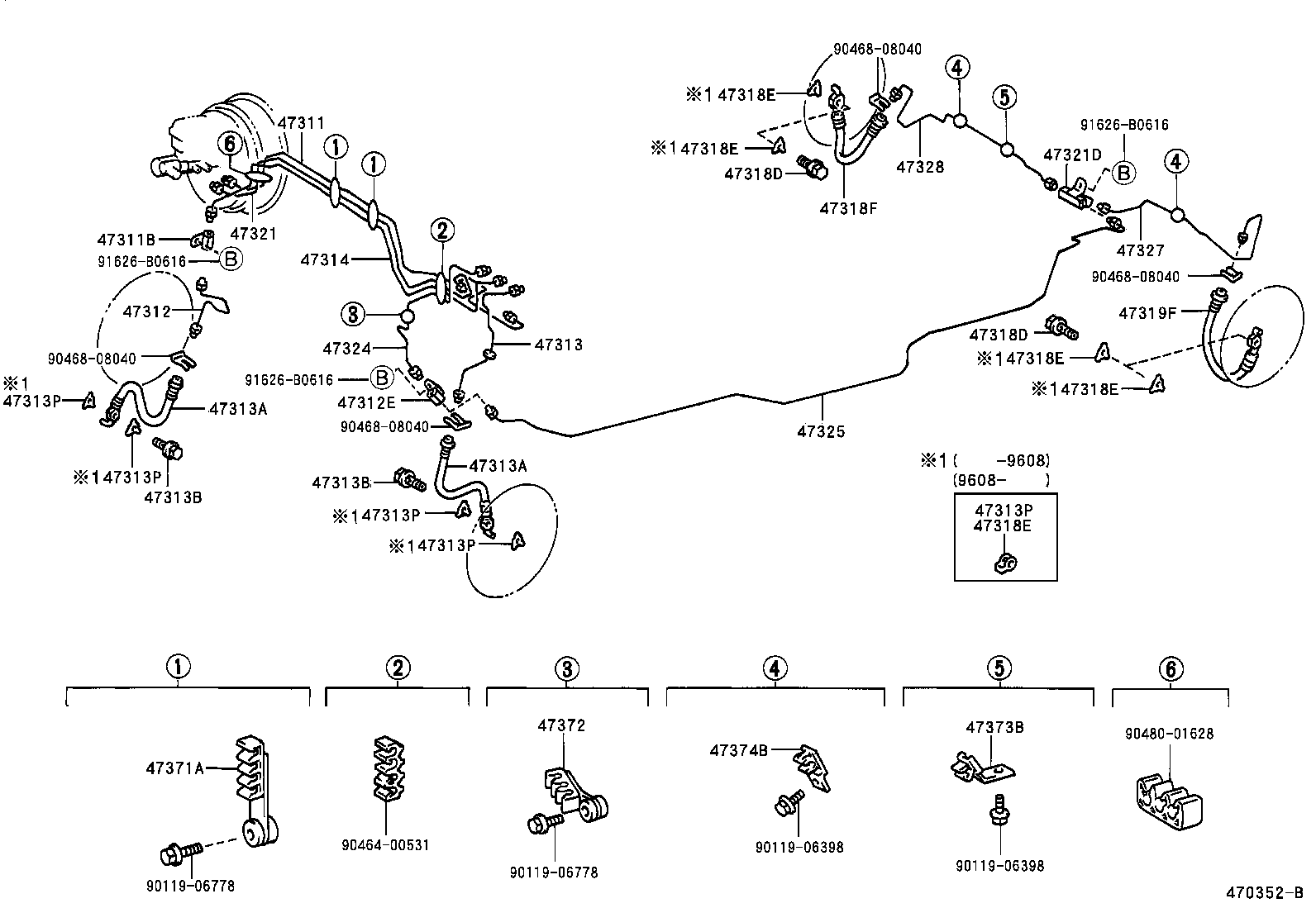

ILLUST NO. 1 OF 2(9512- )RHD

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47313P 47314 47318D 47318D 47318E 47318E 47318E 47318E 47318E 47318F 47319F 47321 47321D 47324 47325 47327 47328 47371A 47372 47373B 47374B 9011906398 9011906398 9011906778 9011906778 9046400531 9046808040 9046808040 9046808040 9046808040 9048001628 91626B0616 91626B0616 91626B0616
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

GS151,JZS155

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-30390

GS151,JZS155..GEN;JZS155..SPSAL..GCC

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10213

GS151,JZS155..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02842

GS151,JZS155

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02842

GS151,JZS155

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10042

GS151,JZS155

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10042

GS151,JZS155

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

GS151,JZS155

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

GS151,JZS155

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02840

GS151,JZS155

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02840

GS151,JZS155

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10281

GS151,JZS155

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-30030

GS151,JZS155

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-30050

GS151,JZS155

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-30020

GS151,JZS155

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-30420

JZS155..ROY..GCC;GS151,JZS155..RHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47371-30390

GS151,JZS155..RHD

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-22420

GS151,JZS155

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-22530

GS151,JZS155

 2
Common parts
90119-06398
90119-06778
90464-00531
90468-08040
90480-01628
91626-B0616
