GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )GS151

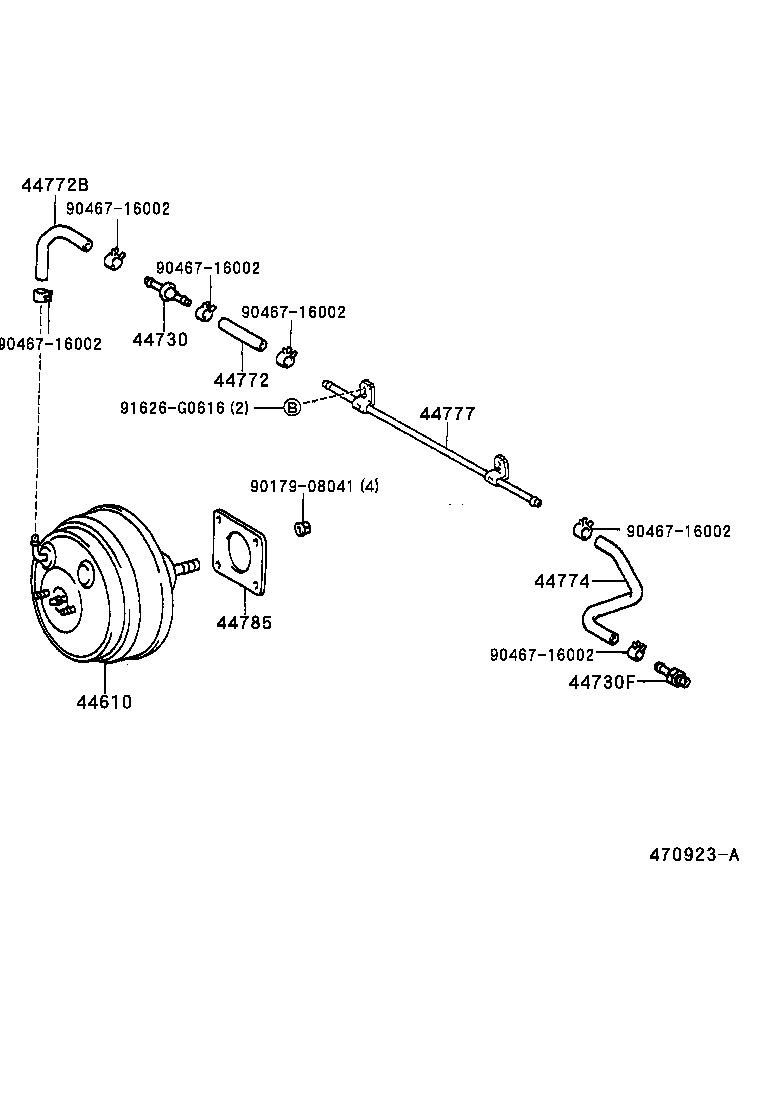

Click highlighted areas on diagram

diagram 44610 44730 44730F 44772 44772B 44774 44777 44785 9017908041 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 91626G0616
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3A150

GS151

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

GS151,JZS155

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GS151

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22300

GS151,JZS155..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-30170

GS151,JZS155..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-30070

GS151

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44770-30010

GS151,JZS155..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-30040

GS151,JZS155

 1
Common parts
90179-08041
90467-16002
91626-G0616
