GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )RHD

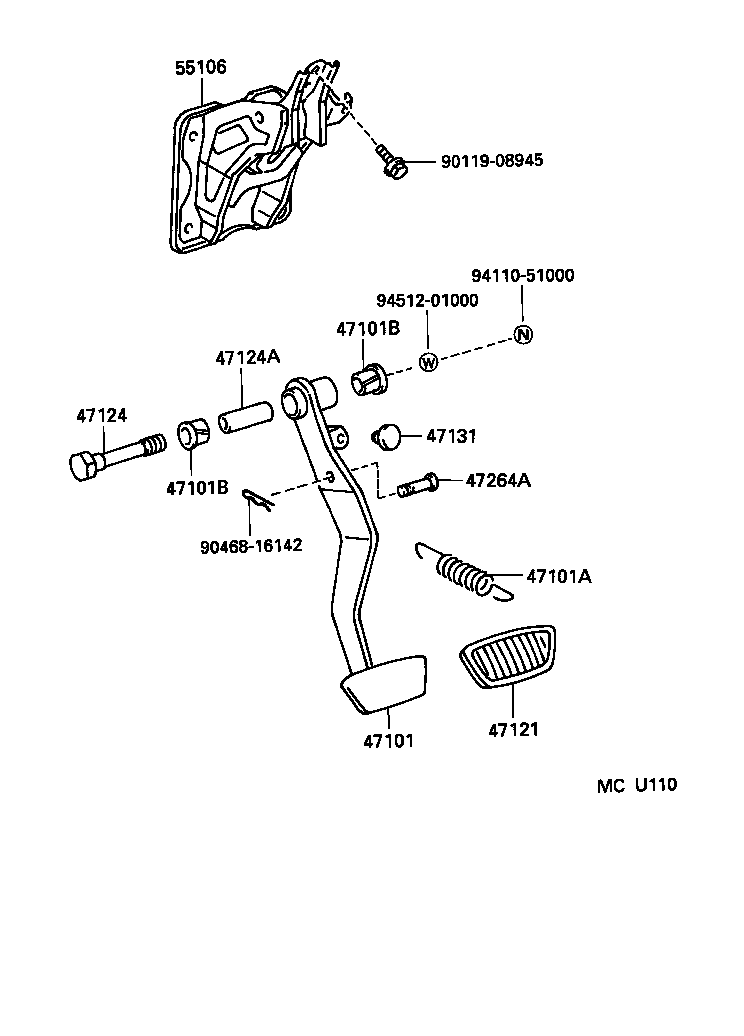

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9011908945 9046816142 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-30370

GS151,JZS155..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-13005

GS151,JZS155

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GS151,JZS155

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

GS151,JZS155

 2
47121 - PAD, BRAKE PEDAL
47121-50010

GS151,JZS155..4FC

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

GS151,JZS155

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

GS151,JZS155

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

GS151,JZS155

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-30290

GS151,JZS155..RHD

 1
Common parts
90119-08945
90468-16142
94110-51000
94512-01000
