GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )GS151

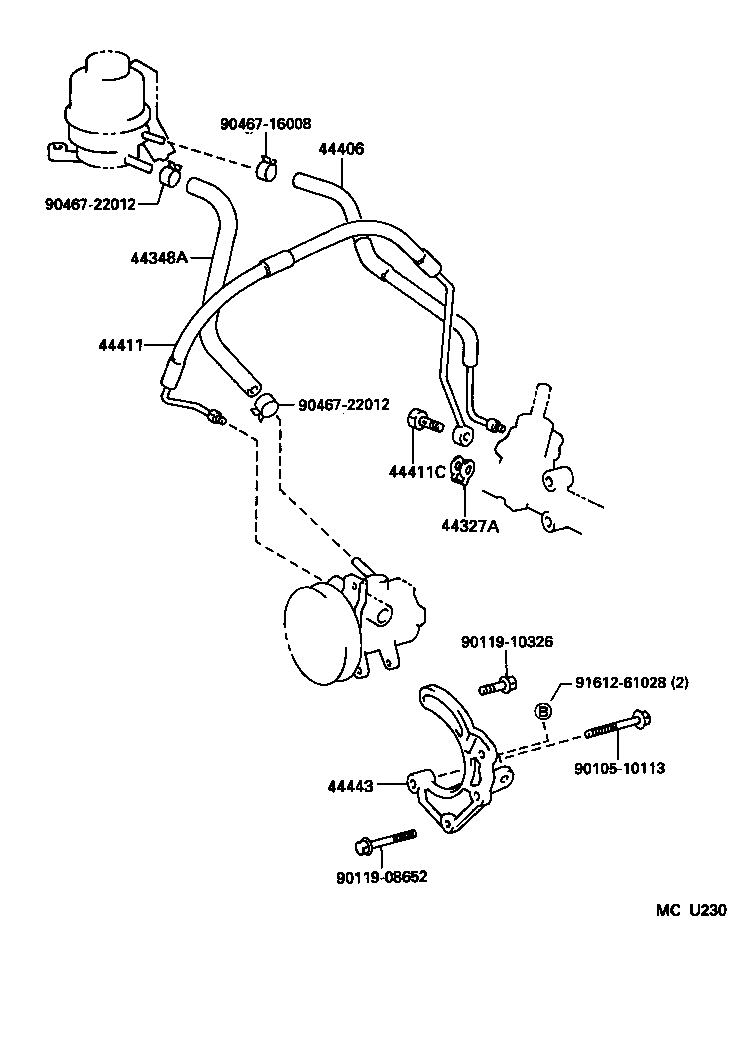

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44411 44411C 44443 9010510113 9011908652 9011910326 9046716008 9046722012 9046722012 9161261028
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GS151,JZS155

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30150

GS151

 1
44406 - TUBE SUB-ASSY, RETURN
44406-30270

GS151

 1
44411 - HOSE, PRESSURE FEED
44411-30530

GS151

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GS151,JZS155

 1
44443 - BRACKET, PUMP
44443-22100

GS151

 1
Common parts
90105-10113
90119-08652
90119-10326
90467-16008
90467-22012
91612-61028
