GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )GS151

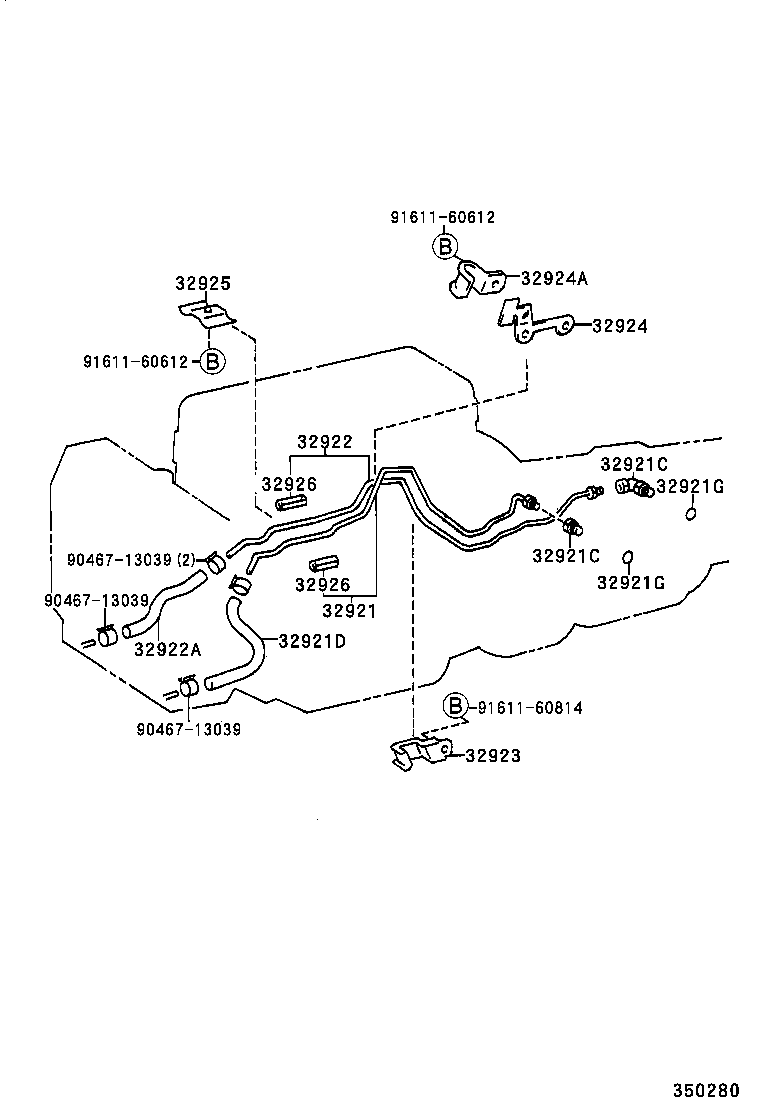

Click highlighted areas on diagram
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-22650 |
GS151 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14021 |
GS151 INLET |
1 | ||
| 90407-14003 |
GS151 OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-14021 |
GS151 INLET |
1 | ||
| 90407-14003 |
GS151 OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15048 |
GS151 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GS151 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GS151 |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-22650 |
GS151 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15020 |
GS151 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-30080 |
GS151 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-22120 |
GS151 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 32929-30090 |
GS151 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12085 |
GS151 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS151 L=35,ID=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-22010 |
GS151 L=35,ID=8 |
2 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
