GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )GS151

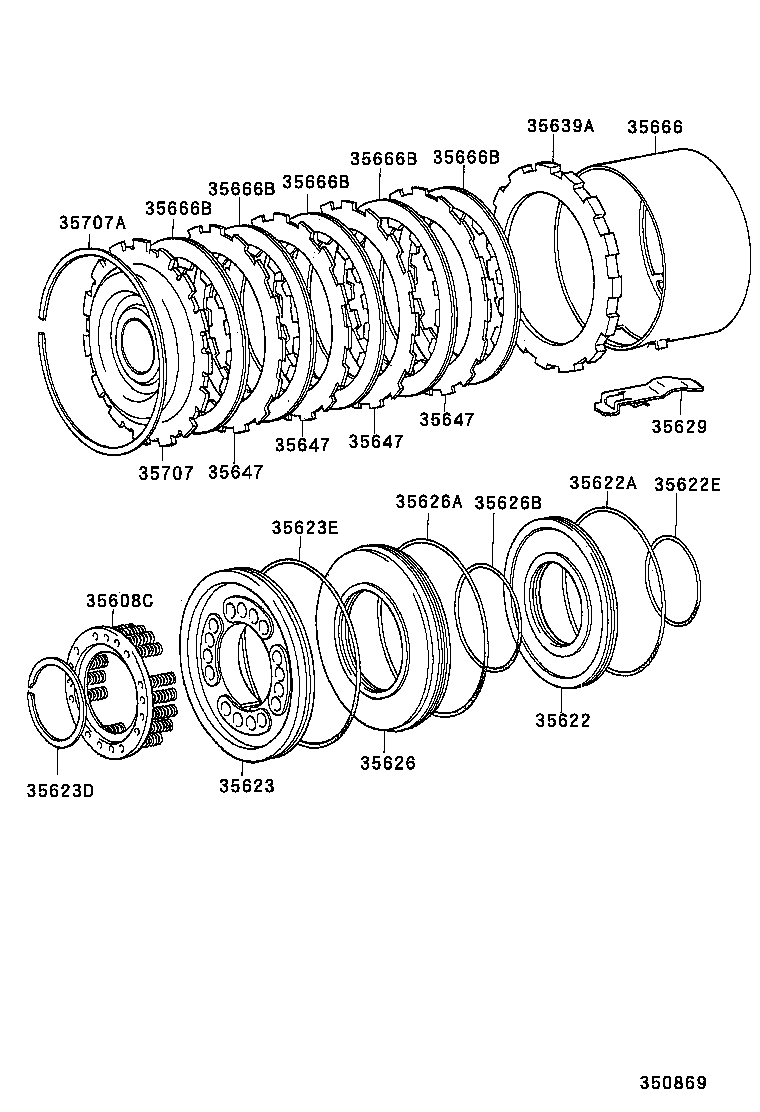

Click highlighted areas on diagram
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN | ||||
| 35608-20020 |
GS151 |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
GS151 |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99193 |
GS151 |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-57188 |
GS151 |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
GS151 |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
GS151 |
1 | ||
| 35623E - RING, O, NO.1 (FOR BRAKE PISTON) | ||||
| 90301-99192 |
GS151 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
GS151 |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99200 |
GS151 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GS151,JZS155..4FC |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22010 |
GS151 |
1 | ||
| 35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22010 |
GS151 |
1 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS151 |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS151 |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS151 |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS151 |
4 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-30010 |
GS151 |
1 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS151 |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS151 |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS151 |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS151 |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS151 |
5 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30020 |
GS151 |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
GS151 |
1 | ||
