GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )GS151

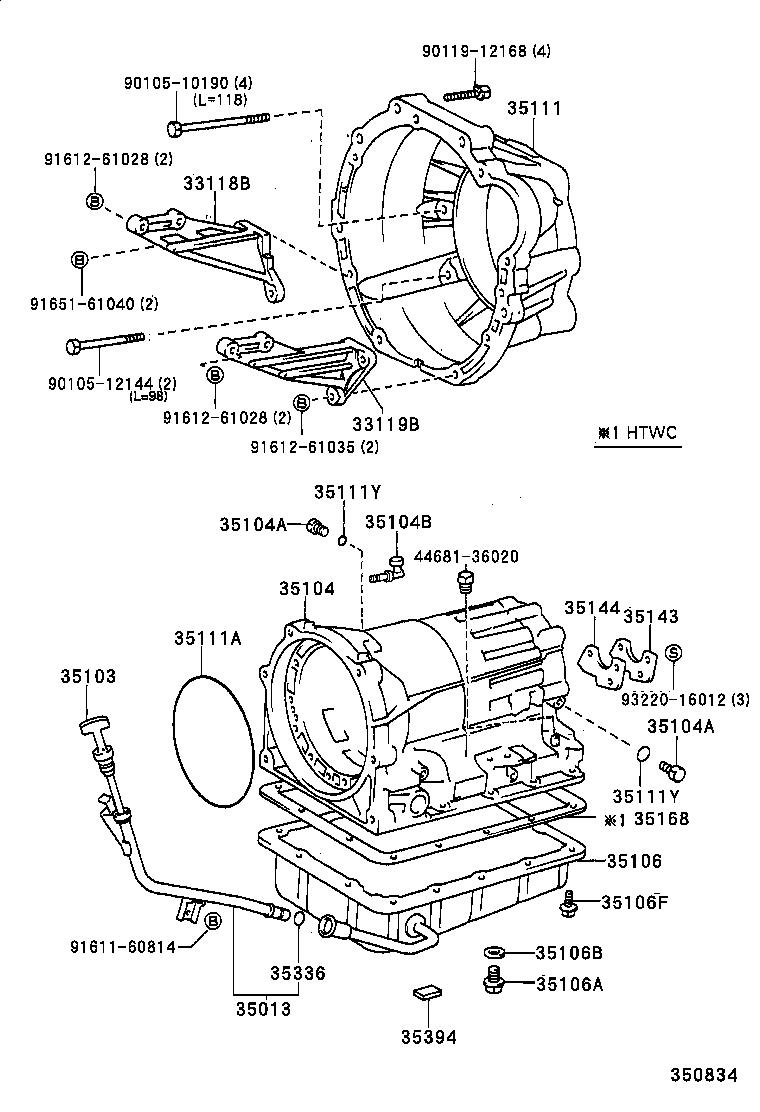

Click highlighted areas on diagram
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-22051 |
GS151 |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-22042 |
GS151 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-30360 |
GS151 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-30460 |
GS151 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30101 |
GS151 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS155..4FC |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GS151,JZS155..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
GS151;JZS155..LHD..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-28030 |
GS151 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GS151;JZS155..LHD..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GS151;JZS155..LHD..4FC |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06117 |
GS151 |
14 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-24010 |
GS151 |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
GS151 |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS151,JZS155..4FC |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GS151,JZS155..4FC |
2 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
GS151 |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-28010 |
GS151 |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
GS151 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GS151,JZS155..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GS151 |
2 | ||
| Common parts | ||||
| 44681-36020 | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-12168 | ||||
| 91611-60814 | ||||
| 91612-61028 | ||||
| 91612-61035 | ||||
| 91651-61040 | ||||
| 93220-16012 | ||||
