GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )RHD

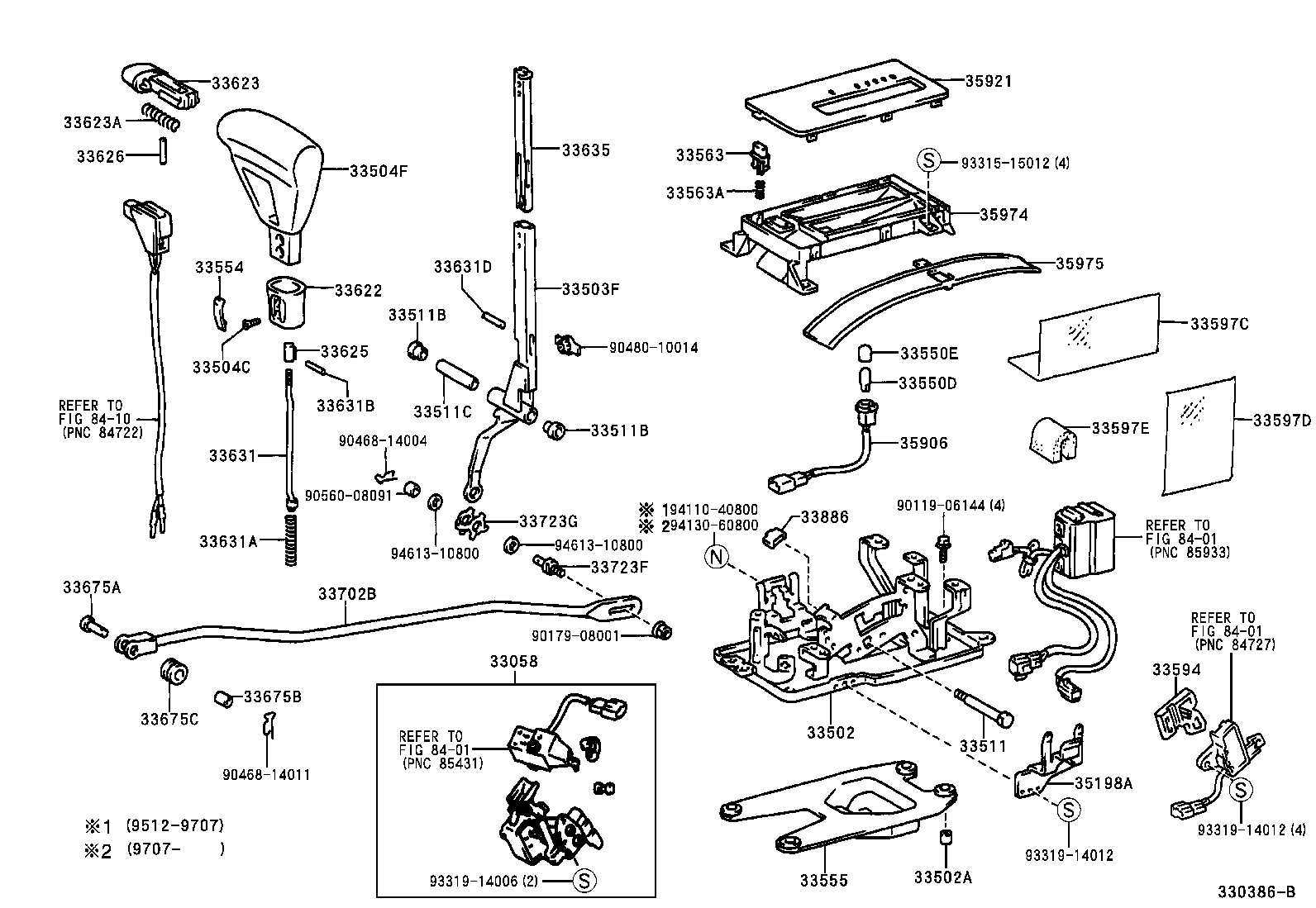

Click highlighted areas on diagram

diagram 33058 33502 33502A 33503F 33504C 33504F 33511 33511B 33511B 33511C 33550D 33550E 33554 33555 33563 33563A 33594 33597C 33597D 33597E 33622 33623 33623A 33625 33626 33631 33631A 33631B 33631D 33635 33675A 33675B 33675C 33702B 33723F 33723G 33886 35198A 35906 35921 35974 35975 8401 8401 8401 8410 9011906144 9017908001 9046814004 9046814011 9048010014 9056008091 9331515012 9331914006 9331914012 9331914012 9411040800 9413060800 9461310800 9461310800
Part # Description Qty Price
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-30380

GS151,JZS155..RHD

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06061

GS151,JZS155..4FC

OD=10.8,ID=6.8

 4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-30090

GS151,JZS155..RHD

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

GS151,JZS155..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-30270E1

GS151,JZS155..RHD

ANTELOPE,TRIM4#

 1
33542-30270B1

GS151,JZS155..RHD

DK.BLUE GRAY,TRIM1#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-22170

GS151,JZS155..4FC

 1
33511B - BUSH (FOR CONTROL SHAFT)
90386-11019

GS151,JZS155..4FC

 2
33511B - BUSH (FOR CONTROL SHAFT)
90386-11019

GS151,JZS155..4FC

 2
33511C - COLLAR (FOR CONTROL SHAFT)
90387-08139

GS151,JZS155..4FC

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11036

GS151,JZS155..4FC

12V 1.7W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-09001

GS151,JZS155..4FC

 1
33554 - CAP, SHIFT LEVER
33554-30040

GS151,JZS155..4FC

 1
33555 - BOOT, SHIFT LEVER
33555-30240

GS151,JZS155..4FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-30120

GS151,JZS155..4FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-30130B1

GS151,JZS155..RHD

DK.BLUE GRAY,TRIM1#

 1
33623-30130E1

GS151,JZS155..RHD

ANTELOPE,TRIM4#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

GS151,JZS155..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-30050

GS151,JZS155..4FC

 1
33626 - STOPPER, SHIFT LEVER BUTTON
90256-02004

GS151,JZS155..4FC

 1
33631 - ROD, DETENT
33631-30150

GS151,JZS155..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08152

GS151,JZS155..4FC

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90256-02003

GS151,JZS155..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

GS151,JZS155..4FC

 1
33635 - GUIDE, WIRE (FOR SHIFT LEVER)
33635-30120

GS151,JZS155..4FC

 1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33726-35010

GS151,JZS155..4FC

 1
33675B - BUSH (FOR TRANSMISSION CONTROL ROD)
90560-08091

GS151,JZS155..4FC

 1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013

GS151,JZS155..4FC

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-30391

GS151

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33572-30050

GS151,JZS155..4FC

 1
33886 - STOPPER, SHIFT LEVER
33886-22010

GS151,JZS155..4FC

 1
35198A - BRACKET, WIRE HARNESS CLAMP, NO.4
35198-30110

GS151,JZS155..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-12130

GS151,JZS155..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-30090

GS151,JZS155..HT;JZS155..LHD..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-30210

GS151,JZS155..4FC

 1
Common parts
90119-06144
90179-08001
90468-14004
90468-14011
90480-10014
90560-08091
93315-15012
93319-14006
93319-14012
94110-40800
94130-60800
94613-10800
Linked diagrams
8401
8410
