GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )1GFE

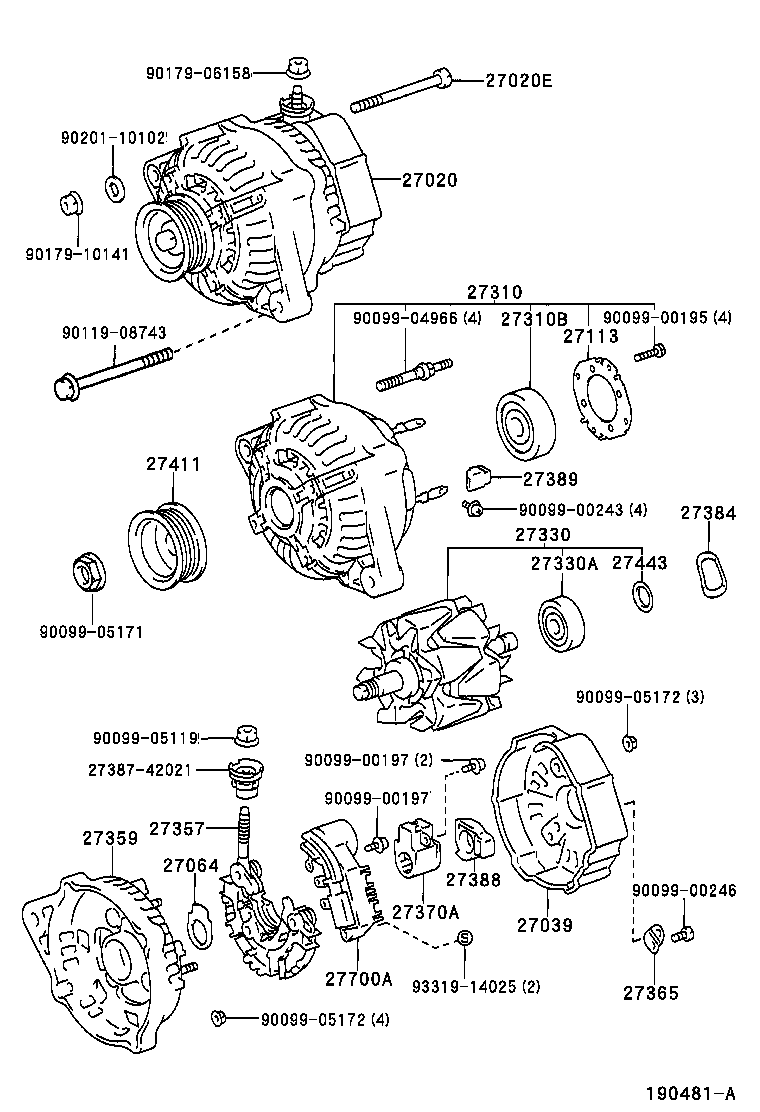

Click highlighted areas on diagram

diagram 27020 27020E 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27365 27370A 27384 2738742021 27388 27389 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9011908743 9017906158 9017910141 9020110102 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-70460

1GFE..GS151

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10133

1GFE..GS151

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

1GFE..GS151

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1GFE,2JZGE..GS151,JZS155

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

1GFE,2JZGE..GS151,JZS155

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74480

1GFE..GS151

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

1GFE,2JZGE..GS151,JZS155

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

1GFE..GS151

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1GFE..GS151

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

1GFE..GS151

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74330

1GFE..GS151

 1
27365 - PLATE, TERMINAL
27365-55080

1GFE,2JZGE..GS151,JZS155

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1GFE,2JZGE..GS151,JZS155

 1
27384 - WASHER
27384-50030

1GFE,2JZGE..GS151,JZS155

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1GFE,2JZGE..GS151,JZS155

 1
27389 - INSULATOR, TERMINAL
27389-42010

1GFE,2JZGE..GS151,JZS155

 4
27411 - PULLEY, ALTERNATOR
27411-70330

1GFE..GS151

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GFE,2JZGE..GS151,JZS155

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46050

1GFE..GS151

 1
Common parts
27387-42021
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90119-08743
90179-06158
90179-10141
90201-10102
93319-14025
