GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707-9808)1GFE

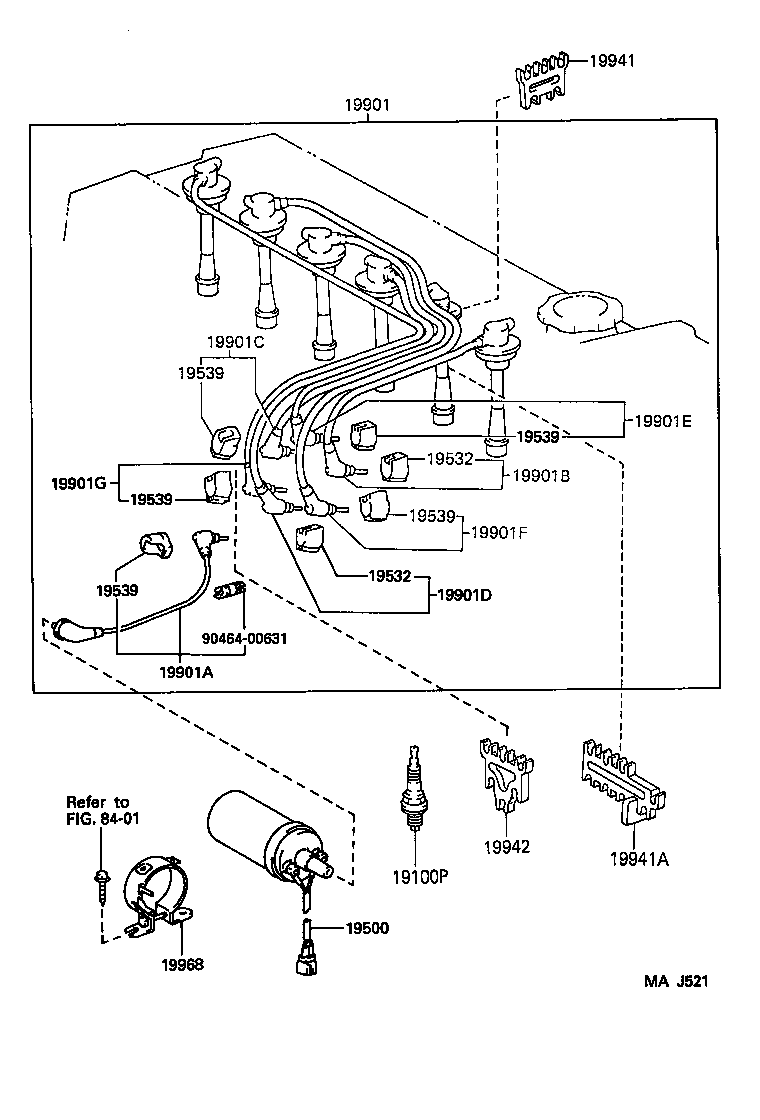

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01164 |
1GFE..GS151 K16R-U11 |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 19500-70010 |
1GFE..GS151 |
1 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-50010 |
1GFE..GS151 MARK B |
1 | ||
| 19532-46010 |
1GFE..GS151 MARK E |
1 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-50010 |
1GFE..GS151 MARK B |
1 | ||
| 19532-46010 |
1GFE..GS151 MARK E |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-46010 |
1GFE..GS151 MARK A |
1 | ||
| 19539-16010 |
1GFE..GS151 MARK K |
1 | ||
| 19539-62020 |
1GFE..GS151 MARK L |
3 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-46010 |
1GFE..GS151 MARK A |
1 | ||
| 19539-16010 |
1GFE..GS151 MARK K |
1 | ||
| 19539-62020 |
1GFE..GS151 MARK L |
3 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-46010 |
1GFE..GS151 MARK A |
1 | ||
| 19539-16010 |
1GFE..GS151 MARK K |
1 | ||
| 19539-62020 |
1GFE..GS151 MARK L |
3 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-46010 |
1GFE..GS151 MARK A |
1 | ||
| 19539-16010 |
1GFE..GS151 MARK K |
1 | ||
| 19539-62020 |
1GFE..GS151 MARK L |
3 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-46010 |
1GFE..GS151 MARK A |
1 | ||
| 19539-16010 |
1GFE..GS151 MARK K |
1 | ||
| 19539-62020 |
1GFE..GS151 MARK L |
3 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21595 |
1GFE..GS151 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13465 |
1GFE..GS151 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15282 |
1GFE..GS151 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15283 |
1GFE..GS151 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15284 |
1GFE..GS151 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15285 |
1GFE..GS151 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-15286 |
1GFE..GS151 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-15287 |
1GFE..GS151 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90929-01298 |
1GFE..GS151 |
1 | ||
| 19941A - CLAMP(FOR RESISTIVE CORD) | ||||
| 90929-01301 |
1GFE..GS151 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90929-01300 |
1GFE..GS151 |
1 | ||
| 19968 - BRACKET, IGNITION COIL | ||||
| 19968-70030 |
1GFE..GS151 |
1 | ||
| Common parts | ||||
| 90464-00631 | ||||
| Linked diagrams | ||||
| 8401 | ||||
