GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707-9808)1GFE

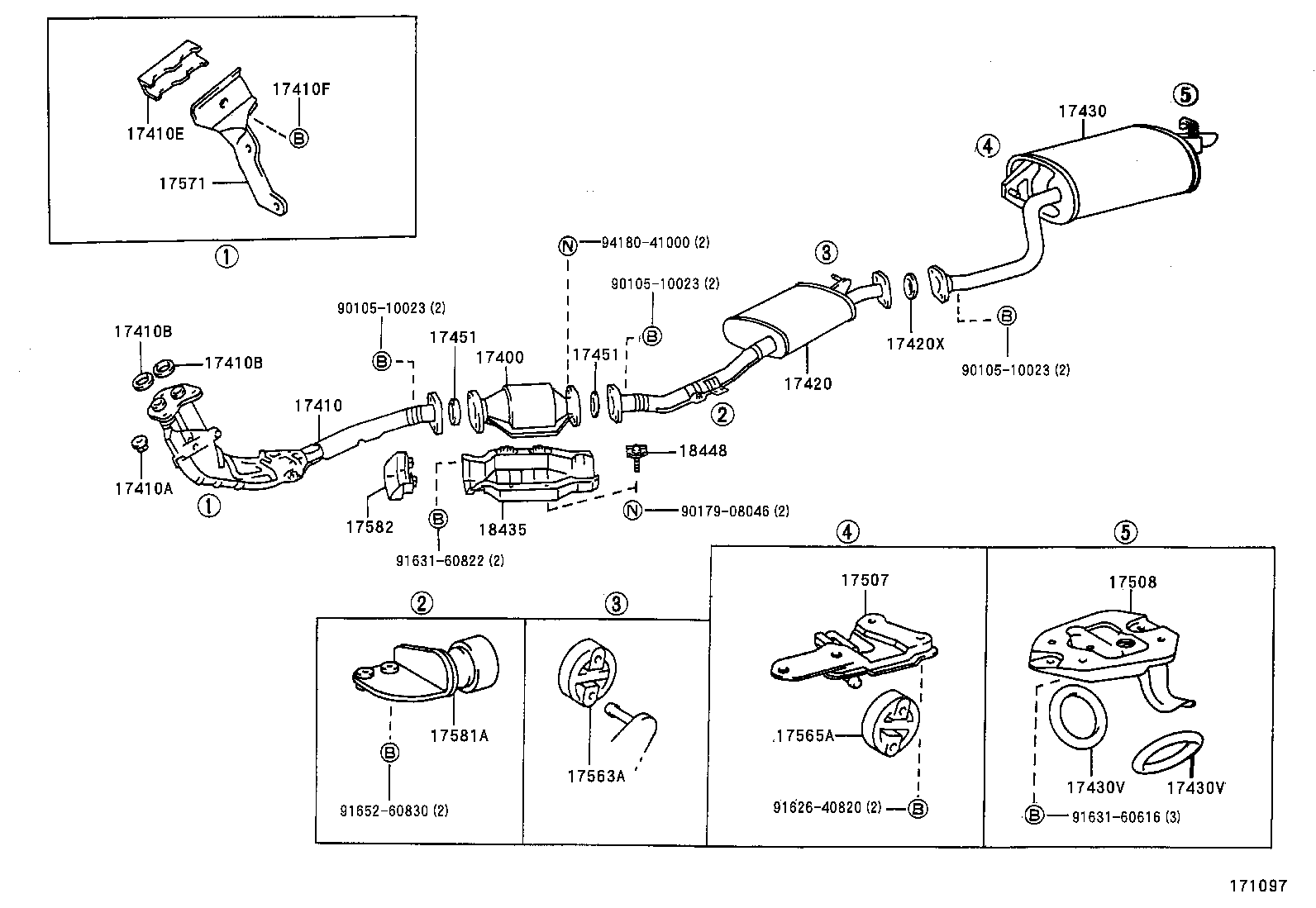

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-70121 |
1GFE..GS151 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-70230 |
1GFE..GS151 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GFE..GS151 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
1GFE..GS151 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
1GFE..GS151 |
2 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04060 |
1GFE..GS151 |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90105-10018 |
1GFE..GS151 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-70261 |
1GFE..GS151 |
1 | ||
| 17420-70260 |
1GFE..GS151 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06045 |
1GFE..GS151 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-70640 |
1GFE..GS151 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36002 |
1GFE,2JZGE..GS151,JZS155 |
2 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36002 |
1GFE,2JZGE..GS151,JZS155 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
1GFE..GS151 REAR |
1 | ||
| 90917-06041 |
1GFE..GS151 FRONT |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
1GFE..GS151 REAR |
1 | ||
| 90917-06041 |
1GFE..GS151 FRONT |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-46030 |
1GFE,2JZGE..GS151,JZS155 |
1 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-46020 |
1GFE,2JZGE..GS151,JZS155 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-74280 |
1GFE..GS151 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74280 |
1GFE..GS151 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-70030 |
1GFE..GS151 |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-46060 |
1GFE..GS151 |
1 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 18495-70010 |
1GFE..GS151 |
1 | ||
| 17582-46020 |
1GFE..GS151 |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-42010 |
1GFE..GS151 |
1 | ||
| 18448 - BRACKET, CONVERTER PROTECTOR, CENTER | ||||
| 18448-43010 |
1GFE..GS151 |
2 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90179-08046 | ||||
| 91626-40820 | ||||
| 91631-60616 | ||||
| 91631-60822 | ||||
| 91652-60830 | ||||
| 94180-41000 | ||||
