GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707-9808)1GFE

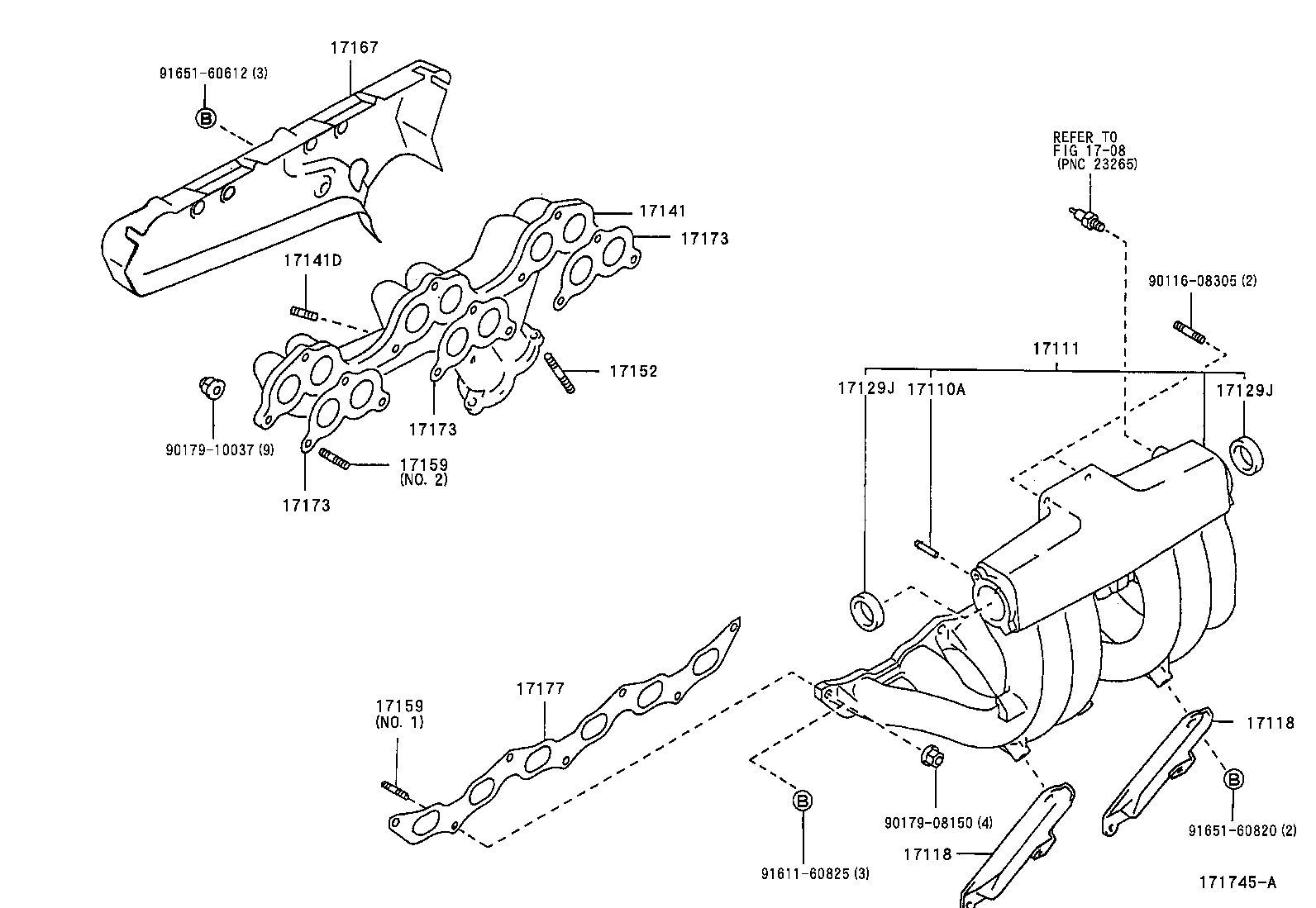

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110A - UNION, VACUUM HOSE | ||||
| 90406-06002 |
1GFE..GS151 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-70080 |
1GFE..GS151 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70100 |
1GFE..GS151 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70100 |
1GFE..GS151 |
2 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-44000 |
1GFE..GS151 OD=40 |
2 | ||
| 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) | ||||
| 96411-44000 |
1GFE..GS151 OD=40 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-70070 |
1GFE..GS151 |
1 | ||
| 17141D - BOLT, STUD(FOR OXYGEN SENSOR) | ||||
| 90116-08128 |
1GFE..GS151 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10146 |
1GFE..GS151 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
1GFE..GS151 NO.2 |
9 | ||
| 90116-08281 |
1GFE..GS151 NO.1 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
1GFE..GS151 NO.2 |
9 | ||
| 90116-08281 |
1GFE..GS151 NO.1 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-70040 |
1GFE..GS151 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70020 |
1GFE..GS151 |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70020 |
1GFE..GS151 |
3 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70020 |
1GFE..GS151 |
3 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-70040 |
1GFE..GS151 |
1 | ||
| Common parts | ||||
| 90116-08305 | ||||
| 90179-08150 | ||||
| 90179-10037 | ||||
| 91611-60825 | ||||
| 91651-60612 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
