GS151R-ATPSK (1997)

Toyota Crown

Production Jul 1997 - Aug 1998
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9707-9808)1GFE

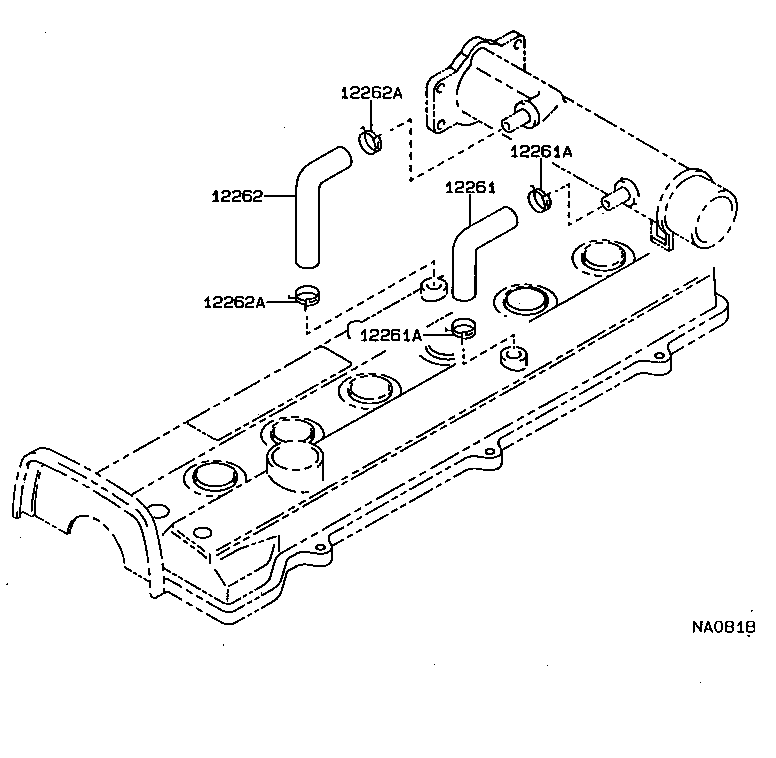

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-70070

1GFE..GS151

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17002

1GFE..GS151

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-17002

1GFE..GS151

 2
12262 - HOSE, VENTILATION, NO.2
12262-70020

1GFE..GS151

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17002

1GFE..GS151

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17002

1GFE..GS151

 2
