GS151R-ATPSK (1997)
Toyota Crown
Production
Jul 1997
-
Aug 1998
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9707-9808)1GFE

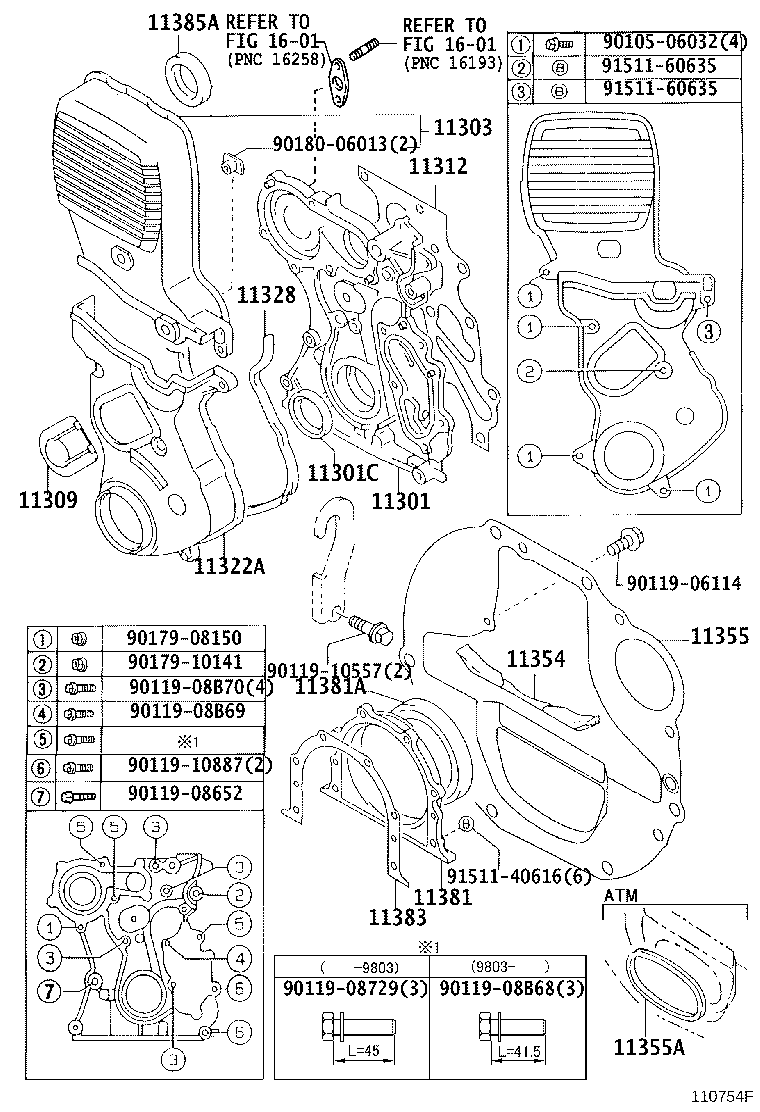

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11311-79035 |
1GFE..GS151 |
1 | ||
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-45003 |
1GFE..GS151 |
1 | ||
| 11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY | ||||
| 11303-70020 |
1GFE..GS151 |
1 | ||
| 11309 - COVER SUB-ASSY, TIMING BELT, NO.4 | ||||
| 11325-88300 |
1GFE..GS151 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-70014 |
1GFE..GS151 |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-70040 |
1GFE..GS151 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-70030 |
1GFE..GS151 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-70010 |
1GFE..GS151 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-70020 |
1GFE..GS151 |
1 | ||
| 11355A - PLUG, HOLE(FOR REAR END PLATE) | ||||
| 90950-01307 |
1GFE..GS151 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-70010 |
1GFE..GS151 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-75007 |
1GFE..GS151 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-70011 |
1GFE..GS151 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-35035 |
1GFE..GS151 |
1 | ||
| Common parts | ||||
| 90105-06032 | ||||
| 90119-06114 | ||||
| 90119-08652 | ||||
| 90119-08729 | ||||
| 90119-08B68 | ||||
| 90119-08B69 | ||||
| 90119-08B70 | ||||
| 90119-10557 | ||||
| 90119-10887 | ||||
| 90179-08150 | ||||
| 90179-10141 | ||||
| 90180-06013 | ||||
| 91511-40616 | ||||
| 91511-60635 | ||||
| Linked diagrams | ||||
| 1601 | ||||
