GS131R-AEPQK (1991)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GS131R-AEPQK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995

Engine 1GFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

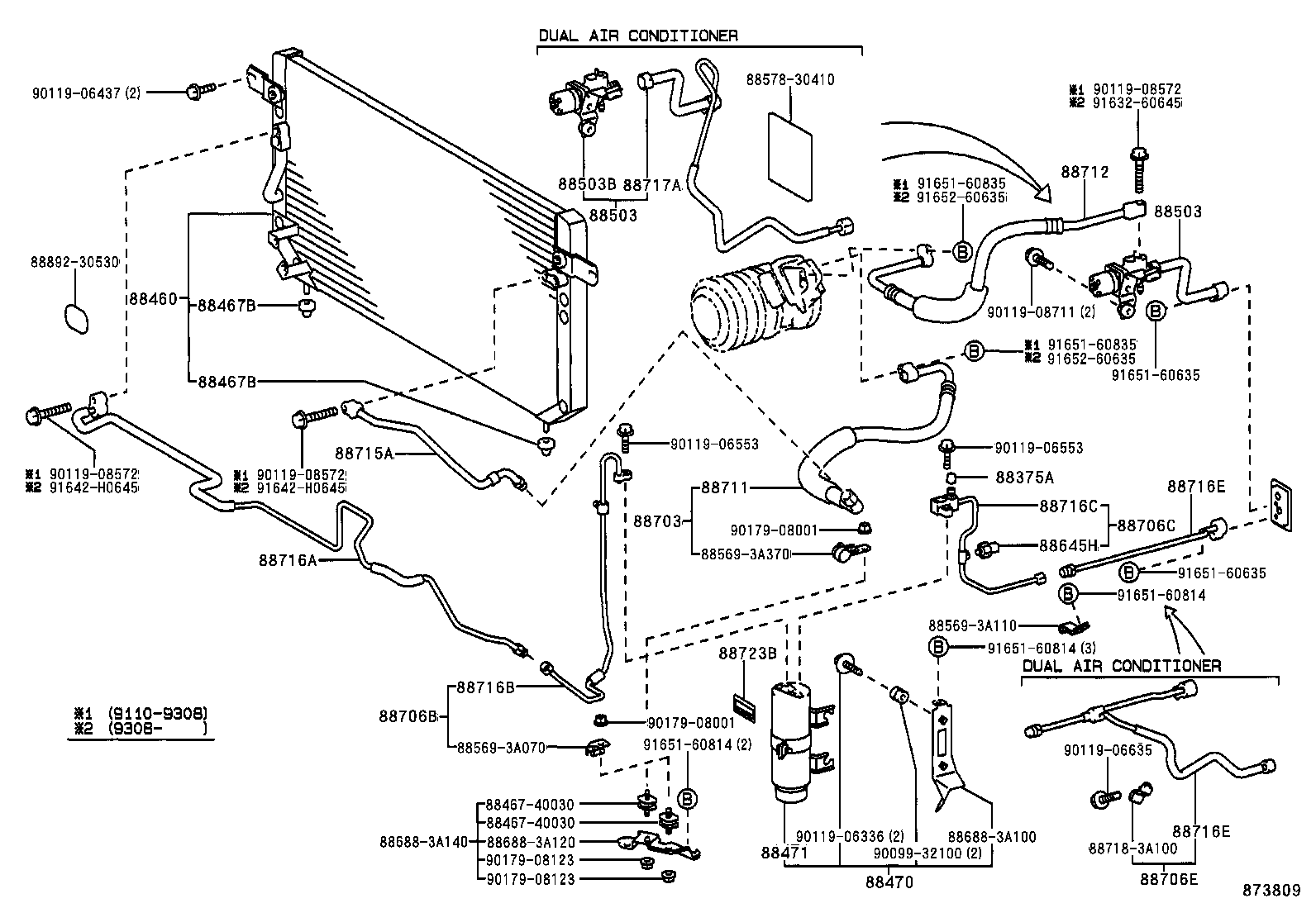

ILLUST NO. 3 OF 3(9110- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

ILLUST NO. 1 OF 3(9110-9512)GS131..RHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-24010	GS131,JZS133,LS130,YS132	10/1991 - 08/1993	1
88460 - CONDENSER ASSY, COOLER
88460-30630	GS131,JZS133,LS130,YS132..EECC,GEN	10/1991 - 08/1993	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14050	GS131,JZS133,LS130,YS132	10/1991 - 12/2999	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14050	GS131,JZS133,LS130,YS132	10/1991 - 12/2999	2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30490	GS131,JZS133,LS130,YS132	10/1991 - 08/1993	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30350	GS131,JZS133,LS130,YS132..4F,4FC,5F	10/1991 - 08/1993	1
88503 - REGULATOR ASSY, PRESSURE
88503-30540	GS131;JZS133..RHD..G W(REAR AIR CONDITIONER)	10/1991 - 10/1992	1
88503-30630	GS131..RHD W(AUTO AIR CONDITIONER)	08/1993 - 12/1995	1
88503-30540	GS131 W(FRONT & REAR AIR CONDITIONER)	10/1992 - 08/1993	1
88503-30640	GS131..RHD W(FRONT & REAR AIR CONDITIONER)	08/1993 - 12/1995	1
88503-30461	GS131..RHD W(AUTO AIR CONDITIONER)	10/1991 - 08/1993	1
88503 - REGULATOR ASSY, PRESSURE
88503-30540	GS131;JZS133..RHD..G W(REAR AIR CONDITIONER)	10/1991 - 10/1992	1
88503-30630	GS131..RHD W(AUTO AIR CONDITIONER)	08/1993 - 12/1995	1
88503-30540	GS131 W(FRONT & REAR AIR CONDITIONER)	10/1992 - 08/1993	1
88503-30640	GS131..RHD W(FRONT & REAR AIR CONDITIONER)	08/1993 - 12/1995	1
88503-30461	GS131..RHD W(AUTO AIR CONDITIONER)	10/1991 - 08/1993	1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-30471	GS131;JZS133..RHD	10/1991 - 08/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-30281	GS131..RHD;LS130,YS132	10/1991 - 08/1993	1
88645-30340	GS131,JZS133,YS132	08/1993 - 02/1994	1
88645-22080	YS132;GS131..RHD	02/1994 - 12/1995	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-30260	GS131..RHD	10/1991 - 08/1993	1
88703-30550	GS131..RHD	08/1993 - 12/1995	1
88706B - TUBE SUB-ASSY, LIQUID, B
88706-30250	JZS133..LHD;GS131,LS130..RHD	10/1991 - 09/1992	1
88706-30250	GS131..RHD;JZS133,LS130	09/1992 - 08/1993	1
88706C - TUBE SUB-ASSY, LIQUID, C
88706-30310	YS132;GS131..RHD PLANT NO.M21-M22	10/1991 - 09/1992	1
88706-30260	YS132;GS131..RHD PLANT NO.A21-A26	10/1991 - 09/1992	1
88706-30260	YS132;GS131..RHD	09/1992 - 08/1993	1
88706-30660	YS132;GS131..RHD	08/1993 - 12/1995	1
88706E - TUBE SUB-ASSY, LIQUID, E
88706-30320	GS131;JZS133..RHD	10/1991 - 08/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30640	GS131..RHD	10/1991 - 10/1992	1
88711-30641	GS131..RHD	10/1992 - 08/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A430	GS131..RHD	08/1993 - 12/1995	1
88712-30880	GS131..RHD	10/1991 - 08/1993	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-30500	GS131,JZS133	10/1991 - 08/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A550	GS131;JZS133..RHD	10/1991 - 08/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3A100	JZS133..LHD;GS131,LS130..RHD..(4FC,4H,5F)	10/1991 - 09/1992	1
88726-3A100	JZS133;LS130..LHD;GS131,LS130..RHD..(4FC,4H,5F)	09/1992 - 08/1993	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-3A110	YS132;GS131,JZS133..RHD PLANT NO.A21-A26	10/1991 - 09/1992	1
88726-3A250	YS132;GS131,JZS133..RHD PLANT NO.M21-M22	10/1991 - 09/1992	1
88726-3A110	GS131..RHD;JZS133,YS132	09/1992 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-3A070	GS131..RHD W(AUTO AIR CONDITIONER)	10/1991 - 08/1993	1
88726-3A050	GS131;JZS133..RHD..G W(REAR AIR CONDITIONER)	10/1991 - 10/1992	1
88726-3A050	GS131 W(FRONT & REAR AIR CONDITIONER)	10/1992 - 08/1993	1
88726-3A720	GS131..RHD W(AUTO AIR CONDITIONER)	08/1993 - 12/1995	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-3A070	GS131..RHD W(AUTO AIR CONDITIONER)	10/1991 - 08/1993	1
88726-3A050	GS131;JZS133..RHD..G W(REAR AIR CONDITIONER)	10/1991 - 10/1992	1
88726-3A050	GS131 W(FRONT & REAR AIR CONDITIONER)	10/1992 - 08/1993	1
88726-3A720	GS131..RHD W(AUTO AIR CONDITIONER)	08/1993 - 12/1995	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A260	GS131;JZS133..RHD	10/1991 - 08/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040	GS131,YS132;JZS133..4FC;JZS133..5F..(D,G);JZS133..5F..GCC..Q	08/1993 - 10/1994	1
88723-30030	GS131..RHD FRONT AUTO AIR CONDITIONER	10/1991 - 08/1993	1
88723-28110	GS131;JZS133..G,J REAR AIR CONDITIONER	10/1991 - 08/1993	1
88723-30030	GS131..RHD..G FRONT MANUAL SEMI AUTO AIR CONDITIONER	10/1991 - 10/1992	1
Common parts
88467-40030
88569-3A070
88569-3A110
88569-3A370
88578-30410
88688-3A100
88688-3A120
88688-3A140
88718-3A100
88892-30530
90099-32100
90119-06336
90119-06437
90119-06553
90119-06635
90119-08572
90119-08711
90179-08001
90179-08123
91632-60645
91642-H0645
91651-60635
91651-60814
91651-60835
91652-60635

ILLUST NO. 2 OF 3(9110- )GS131,JZS133..RHD

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
88648E - WIRING, COOLER
88648-30550	GS131,JZS133..ROY,SAL	10/1991 - 06/1995	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-30430	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88710D - TUBE ASSY, AIR CONDITIONER
88710-30460	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5
88721-30310	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3A040	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3A020	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-30720	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-30740	GS131,JZS133..ROY,SAL	10/1991 - 08/1993	1
88895G - BUSH
88895-30640	GS131,JZS133..ROY,SAL	10/1991 - 04/2001	1
Common parts
88569-30750
88569-3A050
88578-30410
88718-30650
88718-3A080
88718-3A090
90119-06635
90480-50006
93315-14012
93315-15012
94180-40600
