Toyota Crown GS131 WIRING & CLAMP

GS131R-AEPQK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995

Engine 1GFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(9110- )

Click highlighted areas on diagram

CLAMPS & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-22070
82710-30250
82711-12200
82711-14750
82711-24010
82711-24120
82711-30070
82711-30380
82711-30520
82711-30830
82711-30860
82711-30870
82711-3A690
82711-95015
82711-95J26
82715-22040
90119-06200
90119-08760
91611-60612
91611-60814
93510-55012

ILLUST NO. 3 OF 5(9110- )

Click highlighted areas on diagram

BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82715-22080
82715-22280
82715-22390
82715-24090
82715-24140
82715-24150
82715-24160
82715-30010
82715-30110
82715-30120
82715-30130
82715-30150
82715-30160
82715-30190
82715-30350
82715-30500
90119-06200
90179-06158
91615-60818
91651-60814
91651-A0614
91655-40816
93385-16012

ILLUST NO. 3 OF 5(9110- )

Click highlighted areas on diagram

BRACKETS,GROMET & CLAMPS

Part #	Description	Period	Qty	Price
Common parts
82715-30510
82715-30511
82715-30550
82715-30560
82715-30590
82715-30600
82715-30630
82715-30640
82715-30650
82715-30710
82715-50020
82715-50160
82715-89108
82819-30250
90119-06375
90168-60010
90179-06158
90461-06303
90461-06804
91612-60612
93567-55014

ILLUST NO. 3 OF 5(9110- )

Click highlighted areas on diagram

CLAMPS

Part #	Description	Period	Qty	Price
Common parts
90461-08183
90461-08312
90463-13003

ILLUST NO. 5 OF 5(9110- )

Click highlighted areas on diagram

WIRE, AIR BAG REPAIR

Part #	Description	Period	Qty
82988 - WIRE, AIR BAG REPAIR
82988-24010	GS131,JZS133,LS130,YS132	10/1991 - 04/2001	1
Common parts
82988-24010

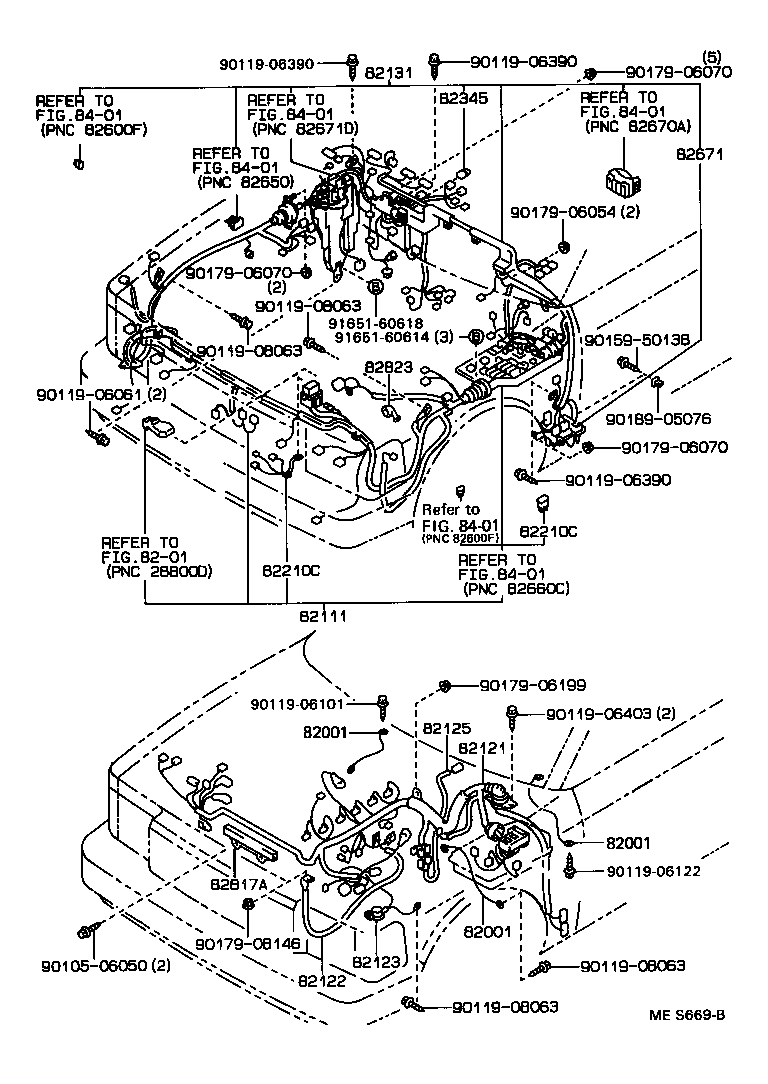

ILLUST NO. 1 OF 5(9110- )GS131

Click highlighted areas on diagram

ENGINE & COWL WIRE

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07308	GS131 E/G-DASH	10/1991 - 10/1992	1
90980-07343	GS131,YS132 T/M-FRAME	10/1991 - 08/1993	2
82001 - CABLE, BOND, NO.1
90980-07308	GS131 E/G-DASH	10/1991 - 10/1992	1
90980-07343	GS131,YS132 T/M-FRAME	10/1991 - 08/1993	2
82001 - CABLE, BOND, NO.1
90980-07308	GS131 E/G-DASH	10/1991 - 10/1992	1
90980-07343	GS131,YS132 T/M-FRAME	10/1991 - 08/1993	2
82111 - WIRE, ENGINE ROOM MAIN
82111-3F020	GS131..RHD	10/1991 - 04/1992	1
82111-3F021	GS131..RHD	04/1992 - 08/1993	1
82111-3F022	GS131..RHD	08/1993 - 12/1995	1
82121 - WIRE, ENGINE
82121-30710	GS131..RHD	10/1991 - 11/1992	1
82121-30711	GS131..RHD	11/1992 - 08/1993	1
82121-30712	GS131..RHD	08/1993 - 12/1995	1
82122 - WIRE, ENGINE, NO.2
82122-30400	GS131	10/1991 - 04/1999	1
82123 - WIRE, ENGINE, NO.3
82123-30170	GS131,JZS133	10/1991 - 04/2001	1
82125 - WIRE, TRANSMISSION
82125-30190	GS131..Q	10/1991 - 12/1995	1
82125-30210	GS131,LS130..RHD..(4F,5F)	10/1991 - 12/1995	1
82131 - WIRE, COWL
82131-3K670	GS131..RHD..G	10/1991 - 12/1995	1
82131-3K660	GS131..Q	10/1991 - 12/1995	1
82210C - FUSIBLE LINK
90982-08246	GS131,JZS133,LS130 100A,TERM.:MALE,BLUE	10/1991 - 08/1993	1
90982-08223	GS131,JZS133,YS132 30A,TERM.:MALE,PNK	10/1991 - 04/2001	1
90982-08257	GS131,JZS133,LS130,YS132 40A,TERM.:MALE,GRN	10/1991 - 04/2001	1
90982-08169	GS131,JZS133,LS130,YS132 L=110,1.0Y	10/1991 - 04/2001	1
90982-08188	GS131,JZS133,LS130..RHD 30A,TERM.:FEMALE,PNK	10/1991 - 04/2001	1
90982-08227	GS131,JZS133,LS130,YS132 50A,TERM.:FEMALE,RED	10/1991 - 04/2001	1
82210C - FUSIBLE LINK
90982-08246	GS131,JZS133,LS130 100A,TERM.:MALE,BLUE	10/1991 - 08/1993	1
90982-08223	GS131,JZS133,YS132 30A,TERM.:MALE,PNK	10/1991 - 04/2001	1
90982-08257	GS131,JZS133,LS130,YS132 40A,TERM.:MALE,GRN	10/1991 - 04/2001	1
90982-08169	GS131,JZS133,LS130,YS132 L=110,1.0Y	10/1991 - 04/2001	1
90982-08188	GS131,JZS133,LS130..RHD 30A,TERM.:FEMALE,PNK	10/1991 - 04/2001	1
90982-08227	GS131,JZS133,LS130,YS132 50A,TERM.:FEMALE,RED	10/1991 - 04/2001	1
82345 - DIODE
82345-12030	GS131,JZS133 NO.1	10/1991 - 03/2001	1
82671 - BLOCK, JUNCTION
82671-30180	JZS133..EECC;GS131,LS130..RHD	10/1991 - 12/1995	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-22660	GS131	10/1991 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-22050	GS131	10/1991 - 04/1999	1
Common parts
90105-06050
90119-06061
90119-06101
90119-06122
90119-06390
90119-06403
90119-08063
90159-50138
90179-06054
90179-06070
90179-06199
90179-08146
90189-05076
91651-60614
91651-60618
Linked diagrams
8201
8401

ILLUST NO. 2 OF 5(9110- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-3A150	GS131..Q	10/1991 - 08/1993	1
82141-3A370	GS131..RHD..G	10/1991 - 12/1995	1
82141-3A151	GS131..Q	08/1993 - 12/1995	1
82151 - WIRE, FRONT DOOR, RH
82151-30710	GS131,JZS133..RHD..GEN	10/1991 - 08/1993	1
82152 - WIRE, FRONT DOOR, LH
82152-30530	GS131,JZS133..RHD..GEN	10/1991 - 04/2001	1
82153 - WIRE, REAR DOOR, NO.1
82153-30390	GS131..G;JZS133..(ROY,SAL)..(GCC,GEN)	10/1991 - 12/1995	1
82153-30380	GS131..Q;JZS133..EECC	10/1991 - 12/1995	1
82154 - WIRE, REAR DOOR, NO.2
82154-30290	GS131..G;JZS133..(ROY,SAL)..(GCC,GEN)	10/1991 - 12/1995	1
82154-30280	GS131..Q;JZS133..EECC	10/1991 - 12/1995	1
82161 - WIRE, FLOOR
82161-3A500	GS131,JZS133..RHD..GEN	10/1991 - 09/1992	1
82161-3A502	GS131,JZS133..RHD	08/1993 - 12/1995	1
82161-3A501	GS131,JZS133..RHD..GEN	09/1992 - 08/1993	1
82162 - WIRE, FLOOR, NO.2
82162-30860	GS131,JZS133..RHD..GEN	10/1991 - 08/1993	1
82162-30861	GS131,JZS133..RHD	08/1993 - 12/1995	1
82163 - WIRE, FLOOR, NO.3
82163-30060	GS131	10/1991 - 04/1999	1
82166 - WIRE, CONSOLE BOX
82166-30130	GS131..LHD..Q;JZS133..RHD..5F..G;GS131,LS130,YS132..4F,5F	10/1991 - 04/2001	1
82166-30170	GS131,JZS133..RHD..4FC..Q	10/1991 - 04/2001	1
82166-30110	GS131..RHD..G THAILAND CKD	10/1991 - 12/1991	1
82167 - WIRE, SEAT, NO.1
82167-30720	GS131,JZS133..RHD..GEN..Q	10/1991 - 04/2001	1
82167 - WIRE, SEAT, NO.1
82167-30720	GS131,JZS133..RHD..GEN..Q	10/1991 - 04/2001	1
82168 - WIRE, SEAT, NO.2
82168-30460	GS131,JZS133..(GCC,GEN)..Q	10/1991 - 04/2001	2
82168 - WIRE, SEAT, NO.2
82168-30460	GS131,JZS133..(GCC,GEN)..Q	10/1991 - 04/2001	2
82171 - WIRE, ROOF, NO.1
82171-30430	GS131,JZS133..RHD..G	10/1991 - 04/2001	1
82171-30510	GS131,JZS133..RHD..Q	10/1991 - 04/2001	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-30060	GS131,JZS133,LS130..RHD	10/1991 - 04/2001	1
82186 - WIRE, REAR WINDOW, NO.1
82186-30100	GS131,JZS133,LS130,YS132..GCC,GEN	10/1991 - 04/2001	1
82187 - WIRE, REAR WINDOW, NO.2
82187-30050	GS131,JZS133,LS130,YS132..GCC,GEN	10/1991 - 04/2001	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-3A440	GS131,JZS133..RHD..4FC..Q	10/1991 - 04/2001	1
82817-3A450	JZS133..LHD;GS131..LHD..Q;JZS133..RHD..G;JZS133..RHD..5F..Q;GS131,LS130,YS132..4F,5F	10/1991 - 04/2001	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-30830	GS131,JZS133..RHD	10/1992 - 08/1993	1
82817-30830	GS131,JZS133..RHD..GEN	10/1991 - 10/1992	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-3A220	GS131,JZS133,LS130,YS132	10/1991 - 10/1995	1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-3A230	GS131,JZS133,LS130..4FC,4H,5F	10/1991 - 08/1993	1
82817-3A230	GS131,JZS133,LS130,YS132	08/1993 - 10/1995	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-30891	GS131,JZS133..RHD..GEN..Q FR FLOOR	10/1991 - 08/1993	1
82817-3A260	GS131,JZS133..RHD..GEN..Q RR WHEEL HOUSE	10/1991 - 08/1993	1
82822 - BRACKET,CONNECTOR BLOCK
82822-30010	GS131,YS132;JZS133..EECC;JZS133..RHD..G;JZS133,LS130..LHD FLOOR WIRE	10/1991 - 08/1993	1
Common parts
90119-06122
90159-50138
90168-50037
90176-05013
90189-05070
90467-08043
90950-01582
90950-01583
91635-60616
91651-60614
93510-55012
93567-55014
Linked diagrams
8121
8401

ILLUST NO. 4 OF 5(9110- )

Click highlighted areas on diagram

DIODES

Part #	Description	Period	Qty
82345 - DIODE
82345-12030	GS131,JZS133 NO.1	10/1991 - 03/2001	1
82345 - DIODE
82345-12030	GS131,JZS133 NO.1	10/1991 - 03/2001	1
82345 - DIODE
82345-12030	GS131,JZS133 NO.1	10/1991 - 03/2001	1
Common parts
82345-12030
82345-30010
82345-32020
