GS131R-AEPQK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE

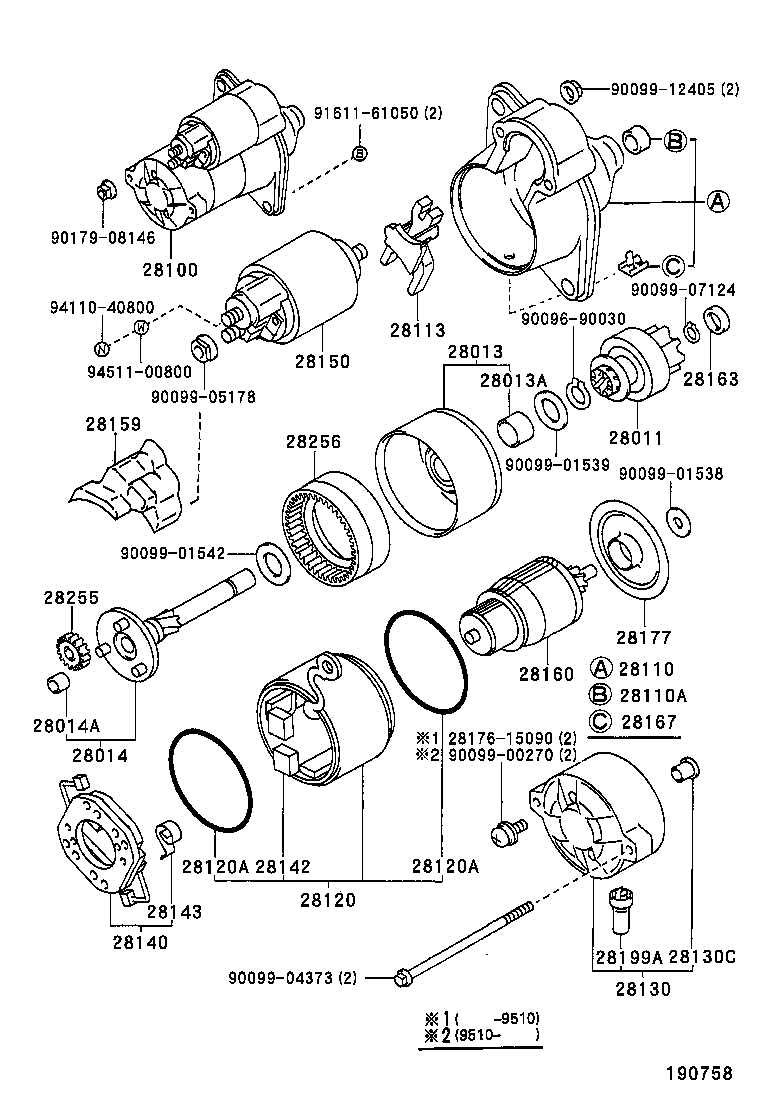

Click highlighted areas on diagram

12V 0.8KW

diagram 28011 28013 28013A 28014 28014A 28100 28110 28110A 28113 28120 28120A 28120A 28130 28130C 28140 28142 28143 28150 28159 28160 28163 28167 2817615090 28177 28199A 28255 28256 9009690030 9009900270 9009901538 9009901539 9009901542 9009904373 9009905178 9009907124 9009912405 9017908146 9161161050 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1GFE..GS131

 1
28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013-70020

1GFE..GS131

 1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181

1GFE..GS131

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-70020

1GFE..GS131

 1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180

1GFE..GS131

 1
28100 - STARTER ASSY
28100-70030

1GFE..GS131

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-70020

1GFE..GS131

 1
28110A - BEARING(FOR STARTER HOUSING)
90099-10171

1GFE..GS131

 1
28113 - LEVER, STARTER PINION DRIVE
28113-70020

1GFE..GS131

 1
28120 - YOKE ASSY, STARTER
28120-70020

1GFE..GS131

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1GFE..GS131

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1GFE..GS131

 2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-70020

1GFE..GS131

 1
28130C - BEARING, STARTER FLANGE
90099-10183

1GFE..GS131

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1GFE..GS131

 1
28142 - BRUSH, STARTER
28142-70020

1GFE..GS131

 2
28143 - SPRING, STARTER BRUSH
28143-70020

1GFE..GS131

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-70030

1GFE..GS131

 1
28159 - COVER, STARTER PROTECTOR
28159-46080

1GFE..GS131

 1
28160 - ARMATURE ASSY, STARTER
28160-70021

1GFE..GS131

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-70020

1GFE..GS131

 1
28167 - COVER, HOUSING
28167-46080

1GFE..GS131

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-70020

1GFE..GS131

 1
28199A - PROTECTOR, DUST STARTER
28199-46080

1GFE..GS131

 1
28199-46080

1GFE..GS131;2L..LS130..RHD

 1
28255 - GEAR, PLANET
28255-70020

1GFE..GS131

 3
28256 - GEAR, STARTER INTERNAL
28256-70020

1GFE..GS131

 1
Common parts
28176-15090
90096-90030
90099-00270
90099-01538
90099-01539
90099-01542
90099-04373
90099-05178
90099-07124
90099-12405
90179-08146
91611-61050
94110-40800
94511-00800
