GS131R-AEPQK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE

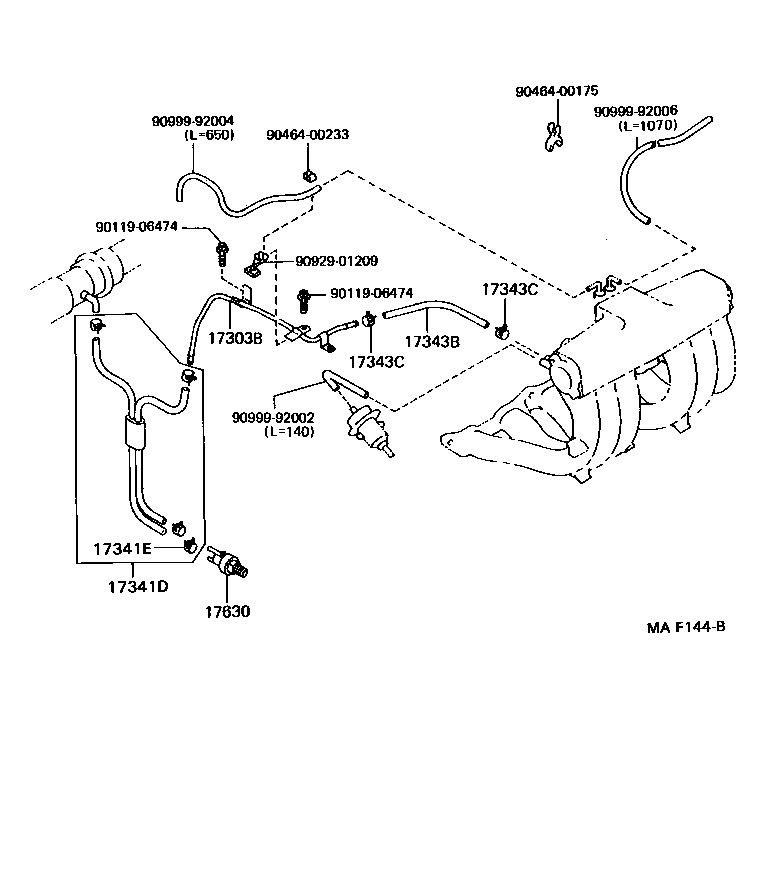

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9110- )1GFE

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17343B 17343C 17343C 17630 9011906474 9011906474 9046400175 9046400233 9092901209 9099992002 9099992004 9099992006
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-70051

1GFE..GS131

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-70180

1GFE..GS131

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS131

 4
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-70050

1GFE..GS131

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS131

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS131

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1GFE..GS131

 1
Common parts
90119-06474
90464-00175
90464-00233
90929-01209
90999-92002
90999-92004
90999-92006
