GS131R-AEPQK (1991)

Toyota Crown

Production Oct 1991 - Dec 1995
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )1GFE

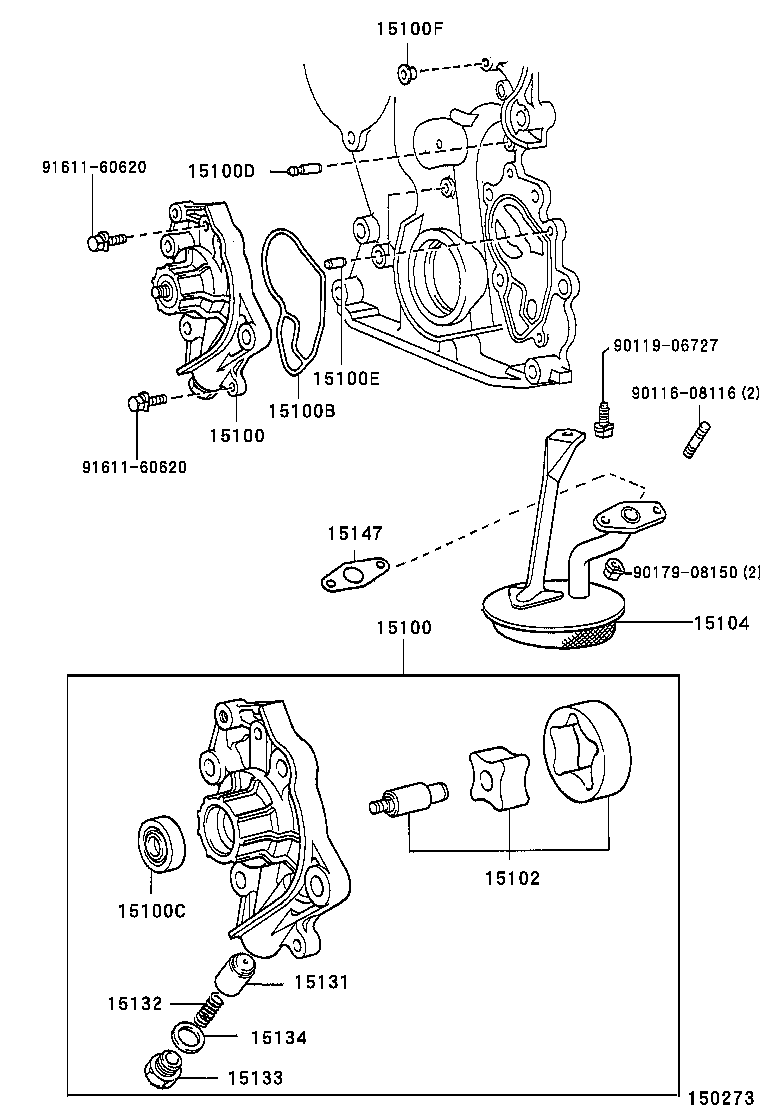

Click highlighted areas on diagram

diagram 15100 15100 15100B 15100C 15100D 15100E 15100F 15102 15104 15131 15132 15133 15134 15147 9011608116 9011906727 9017908150 9161160620 9161160620
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-70030

1GFE..GS131

 1
15100 - PUMP ASSY, OIL
15100-70030

1GFE..GS131

 1
15100B - RING, O(FOR OIL PUMP)
15188-70010

1GFE..GS131

 1
15100C - SEAL(FOR OIL PUMP)
90029-21005

1GFE..GS131

 1
15100D - PIN(FOR OIL PUMP SET)
15182-70010

1GFE..GS131

 1
15100E - PIN, STRAIGHT (FOR OIL PUMP SET)
15181-70010

1GFE..GS131

 2
15100F - BUSH (FOR OIL PUMP)
90029-38302

1GFE..GS131

 1
15102 - ROTOR SET, OIL PUMP
15102-70011

1GFE..GS131

 1
15104 - STRAINER SUB-ASSY, OIL
15104-70060

1GFE..GS131

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1GFE..GS131

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

1GFE..GS131

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1GFE..GS131

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-70030

1GFE..GS131

 1
15147 - GASKET, OIL STRAINER
15147-70021

1GFE..GS131

 1
Common parts
90116-08116
90119-06727
90179-08150
91611-60620
