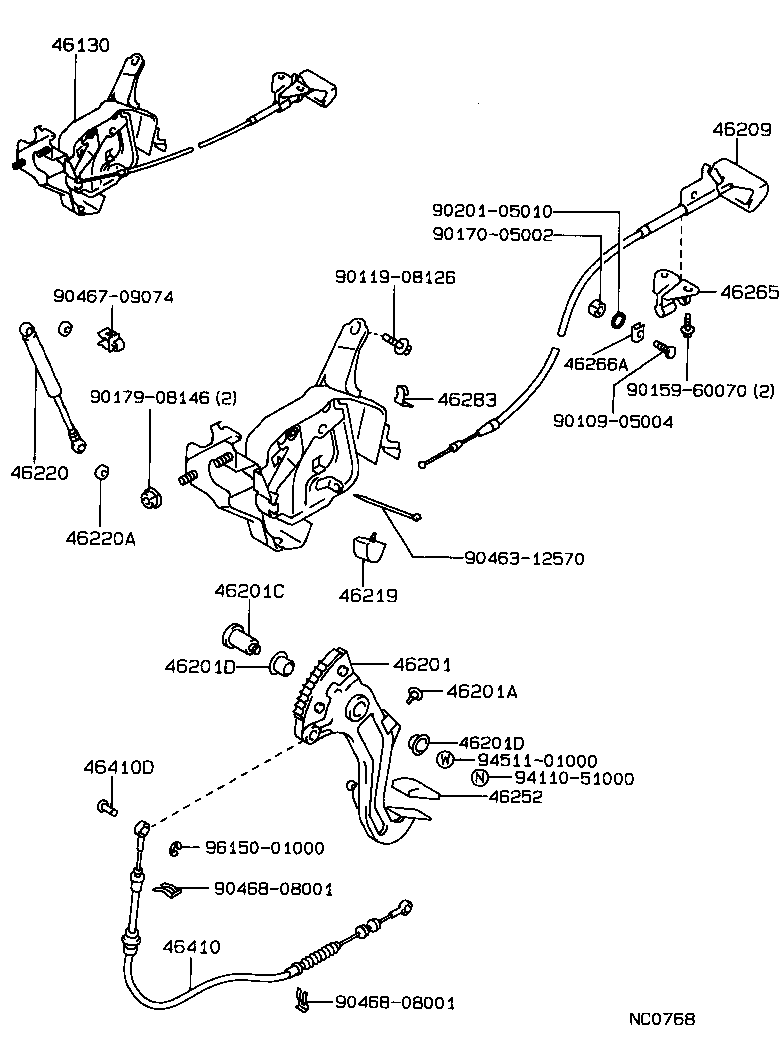

GS131R-AEPQK (1988)
Toyota Crown
(8709-8908)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30080 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46130-30050 |
GS131,MS132,135..RHD..ATM..(ROY,SAL) |
1 | ||
| 46130-30081 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30090 |
GS131,MS132,135..RHD..ATM |
1 | ||
| 46201-30110 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS131,MS13#..RHD..ATM |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS131,MS13#..RHD..ATM |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30070 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46209-30040 |
GS131,MS132,135..RHD..ATM..(ROY,SAL) |
1 | ||
| 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) | ||||
| 90501-08030 |
GS131,MS132,135..RHD..ATM |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07008 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
GS131,MS13#..RHD..ATM |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-50010 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46252-20010 |
GS131,MS132,135..RHD..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30040 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30040 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46266A - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH | ||||
| 46283-30020 |
YS132..4H;GS131,LS130,MS13#..RHD..(4FC,4H,4HC) |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90506-07007 |
GS131,MS132,135..RHD..ATM |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F |
1 | ||
| 90249-10012 |
GS131,MS13#..RHD..ATM |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90119-08126 | ||||
| 90159-60070 | ||||
| 90170-05002 | ||||
| 90179-08146 | ||||
| 90201-05010 | ||||
| 90463-12570 | ||||
| 90467-09074 | ||||
| 90468-08001 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
(8908- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-30080 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46130-30050 |
GS131,MS132,135..RHD..ATM..(ROY,SAL) |
1 | ||
| 46130-30081 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-30090 |
GS131,MS132,135..RHD..ATM |
1 | ||
| 46201-30110 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS131,MS13#..RHD..ATM |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
GS131,MS13#..RHD..ATM |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30070 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46209-30040 |
GS131,MS132,135..RHD..ATM..(ROY,SAL) |
1 | ||
| 46219 - STOPPER, PARKING PEDAL | ||||
| 90541-07008 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
GS131,MS13#..RHD..ATM |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-50010 |
GS131,MS133,135..RHD..ATM |
1 | ||
| 46252-20010 |
GS131,MS132,135..RHD..ATM |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-30040 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46266A - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
GS131,MS13#..RHD..ATM |
1 | ||
| 46283 - PROTECTOR, PARKING BRAKE SIGNAL SWITCH | ||||
| 46283-30020 |
YS132..4H;GS131,LS130,MS13#..RHD..(4FC,4H,4HC) |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08021 |
MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F |
1 | ||
| 90249-10012 |
GS131,MS13#..RHD..ATM |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90119-08126 | ||||
| 90159-60070 | ||||
| 90170-05002 | ||||
| 90179-08146 | ||||
| 90201-05010 | ||||
| 90463-12570 | ||||
| 90467-09074 | ||||
| 90468-08001 | ||||
| 94110-51000 | ||||
| 94511-01000 | ||||
| 96150-01000 | ||||
