GS131R-AEPQK (1988)

Toyota Crown

Production Dec 1988 - Oct 1991
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8812- )1GFE

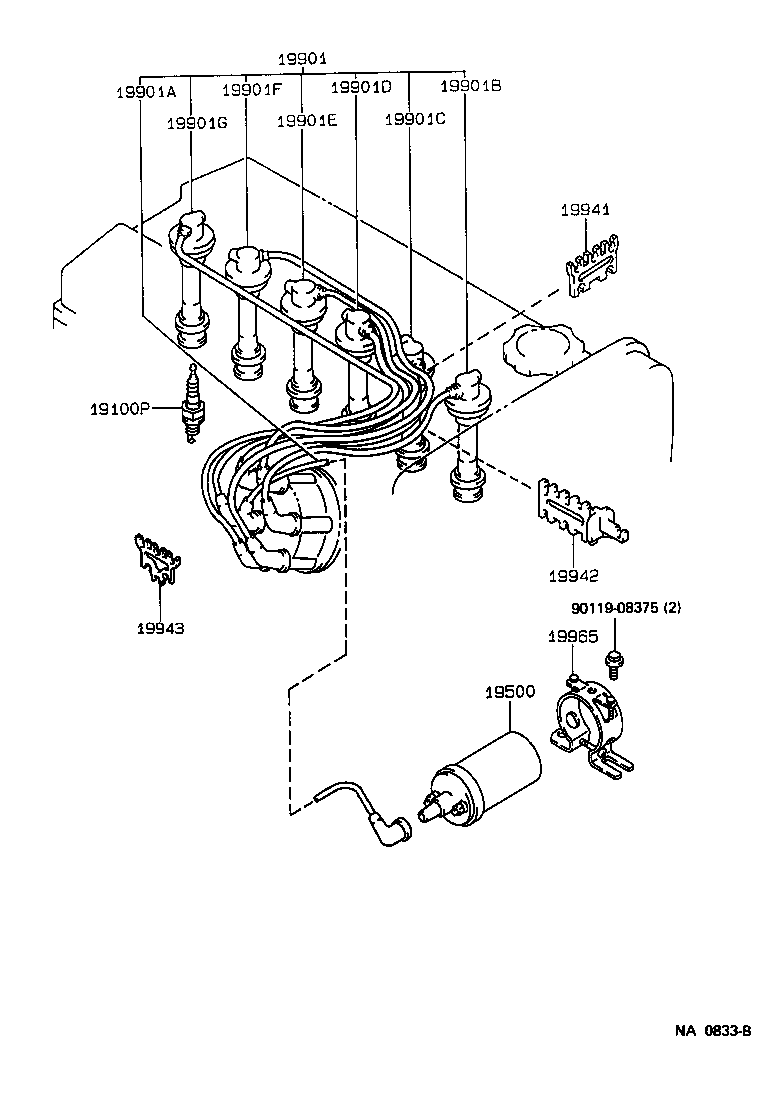

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19943 19965 9011908375
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01166

1GFE..GS131

K20R-U

 6
19500 - COIL ASSY, IGNITION
90919-02113

1GFE..GS131

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21439

1GFE..GS131

 1
19901A - CORD, COIL RESISTIVE
90919-13309

1GFE..GS131

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12847

1GFE..GS131

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12848

1GFE..GS131

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12849

1GFE..GS131

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12850

1GFE..GS131

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12851

1GFE..GS131

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12852

1GFE..GS131

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01210

1GFE..GS131

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90929-01208

1GFE..GS131

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
90929-01236

1GFE..GS131

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03094

1GFE..GS131

 1
Common parts
90119-08375
