GRS202R-AETQK (2010)
Toyota Crown

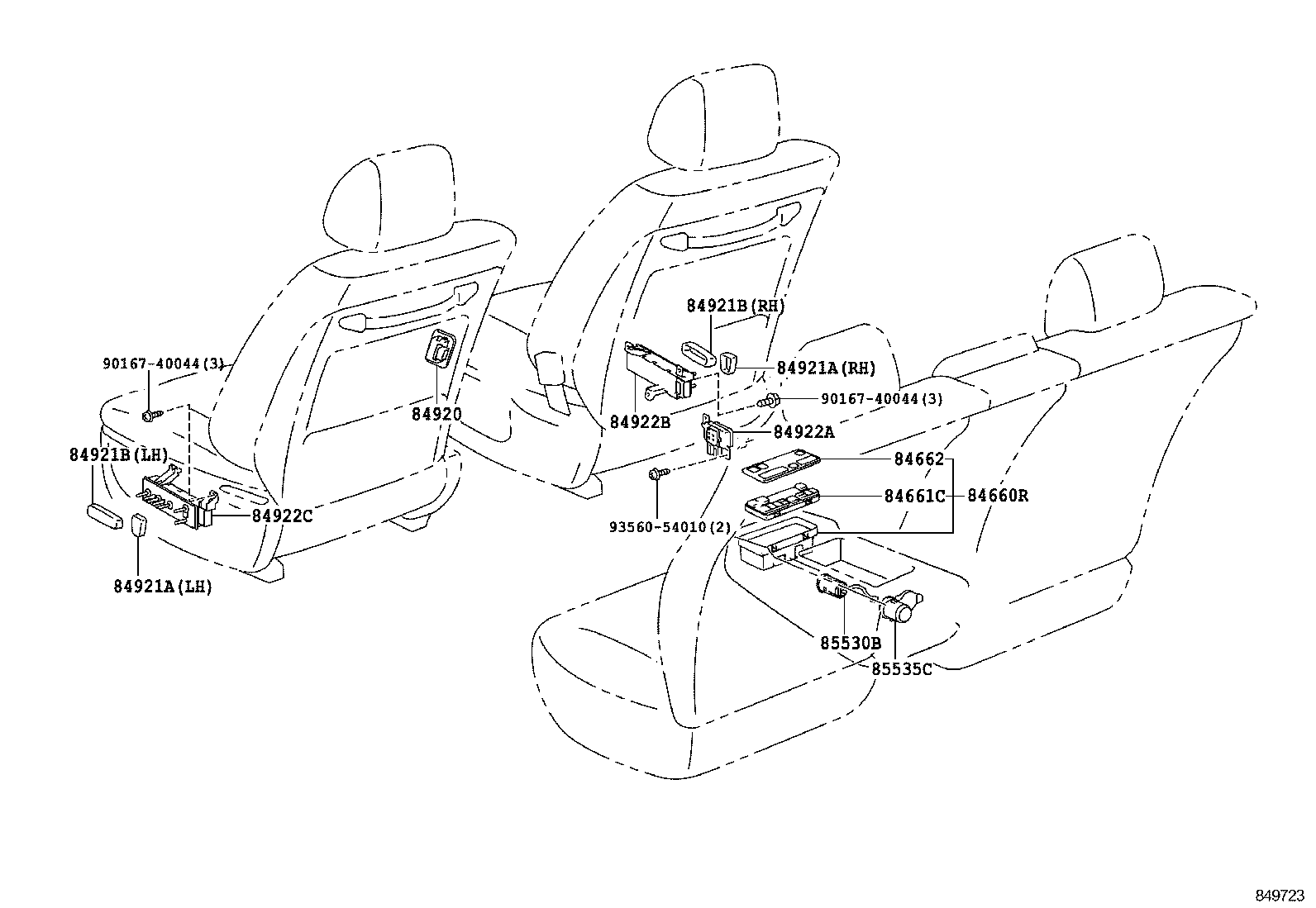

ILLUST NO. 8 OF 9(1009- )
SEAT & REAR ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30370 |
GRS202 |
1 | ||
| 84661C - KNOB, COOLER CONTROL SWITCH | ||||
| 84661-30140 |
GRS202 |
1 | ||
| 84662 - PANEL, COOLER CONTROL SWITCH | ||||
| 84662-30040 |
GRS202 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-30221A3 |
GRS202 SHELL,TRIM0# |
1 | ||
| 84920-30221B2 |
GRS202 GRAY,TRIM1# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60120A3 |
GRS202 SHELL,TRIM0#,LH |
1 | ||
| 84921-60120B6 |
GRS202 GRAY,TRIM1#,LH |
1 | ||
| 84921-60110A2 |
GRS202 SHELL,TRIM0#,RH |
1 | ||
| 84921-60110B4 |
GRS202 GRAY,TRIM1#,RH |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60120A3 |
GRS202 SHELL,TRIM0#,LH |
1 | ||
| 84921-60120B6 |
GRS202 GRAY,TRIM1#,LH |
1 | ||
| 84921-60110A2 |
GRS202 SHELL,TRIM0#,RH |
1 | ||
| 84921-60110B4 |
GRS202 GRAY,TRIM1#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60070B2 |
GRS202 GRAY,TRIM1#,LH |
1 | ||
| 84921-60100A2 |
GRS202 SHELL,TRIM0#,RH |
1 | ||
| 84921-60070A2 |
GRS202 SHELL,TRIM0#,LH |
1 | ||
| 84921-60100B4 |
GRS202 GRAY,TRIM1#,RH |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60070B2 |
GRS202 GRAY,TRIM1#,LH |
1 | ||
| 84921-60100A2 |
GRS202 SHELL,TRIM0#,RH |
1 | ||
| 84921-60070A2 |
GRS202 SHELL,TRIM0#,LH |
1 | ||
| 84921-60100B4 |
GRS202 GRAY,TRIM1#,RH |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-30240B1 |
GRS202 GRAY,TRIM1# |
1 | ||
| 84920-30240A1 |
GRS202 SHELL,TRIM0# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-48050 |
GRS202 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60110 |
GRS202 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-30040 |
GRS202 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-30020 |
GRS202 |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 93560-54010 | ||||

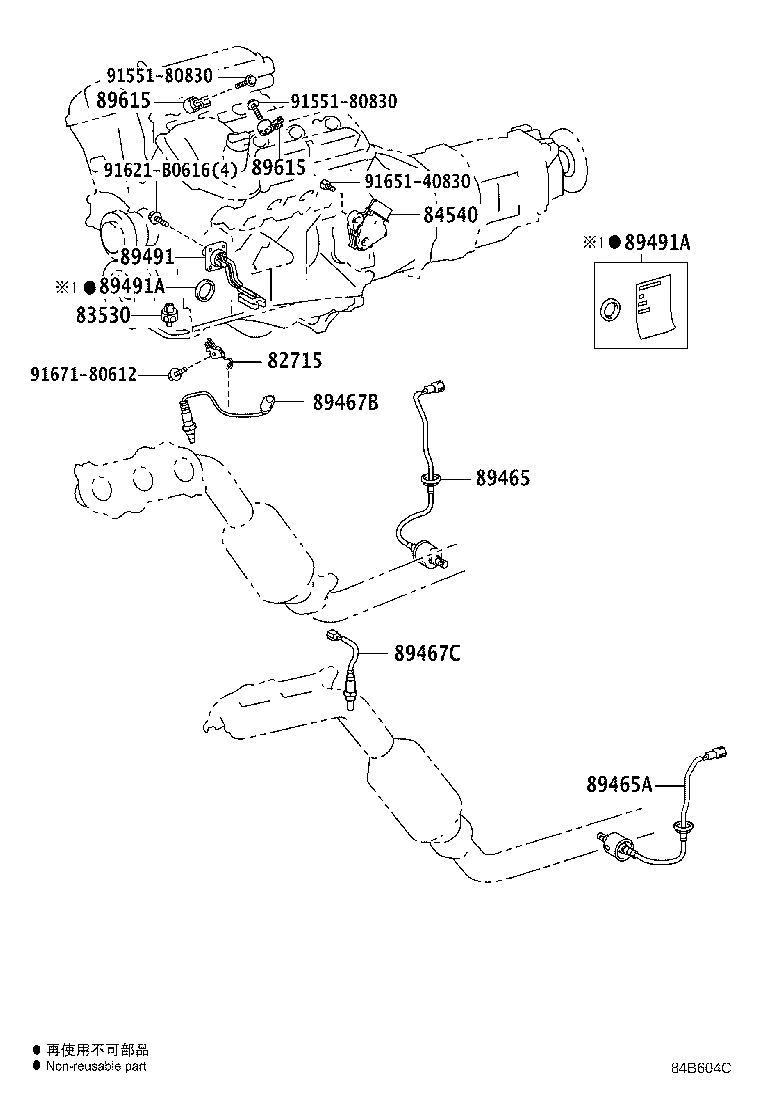

ILLUST NO. 1 OF 9(1009- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-22850 |
GRS202 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRS202 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
GRS202 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-30730 |
GRS202 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-30730 |
GRS202 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-22050 |
GRS202 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-22040 |
GRS202 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30060 |
GRS202 |
1 | ||
| 89491-30061 |
GRS202 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
GRS202 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
GRS202 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS202 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRS202 |
2 | ||
| Common parts | ||||
| 91551-80830 | ||||
| 91621-B0616 | ||||
| 91651-40830 | ||||
| 91671-80612 | ||||

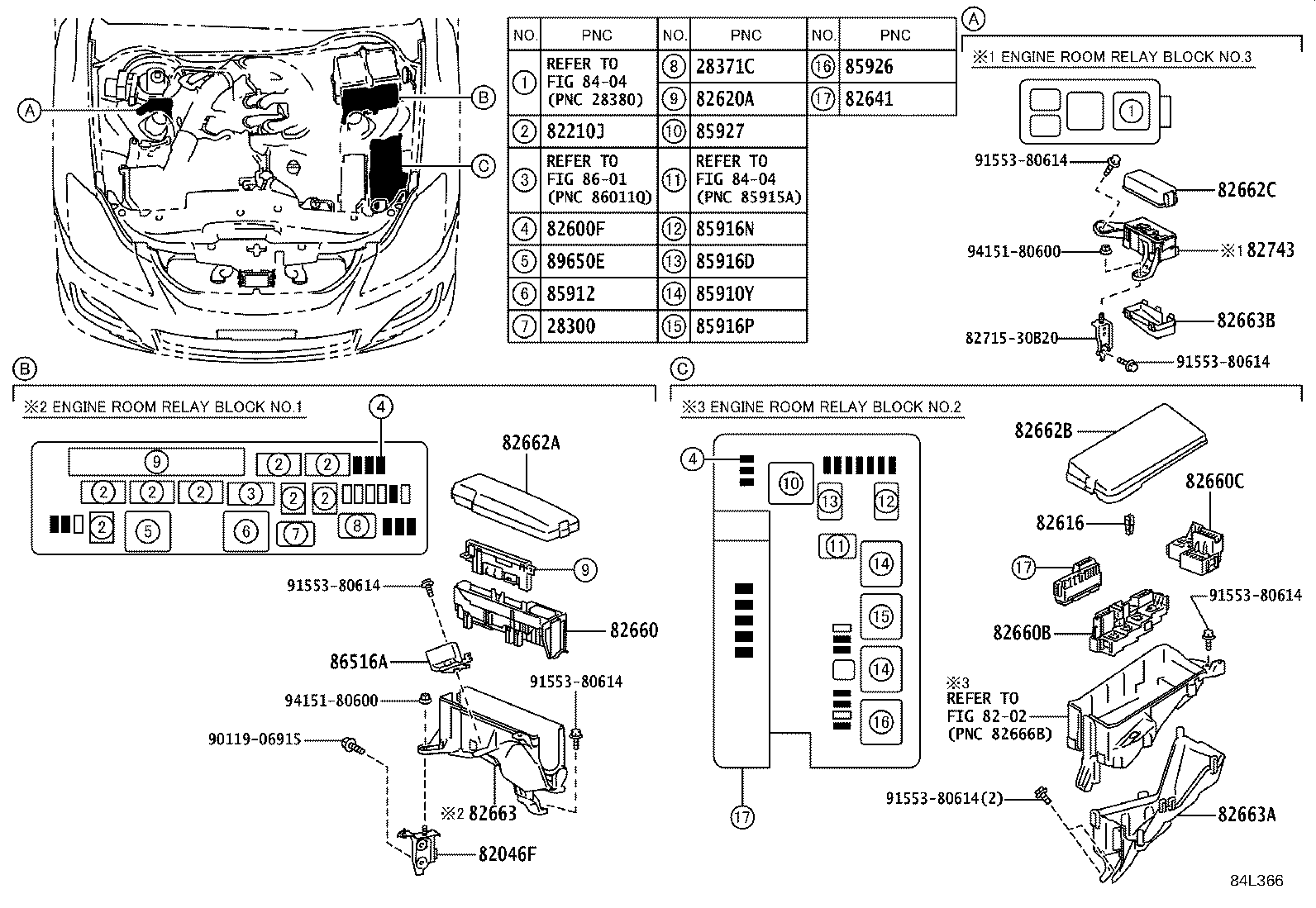

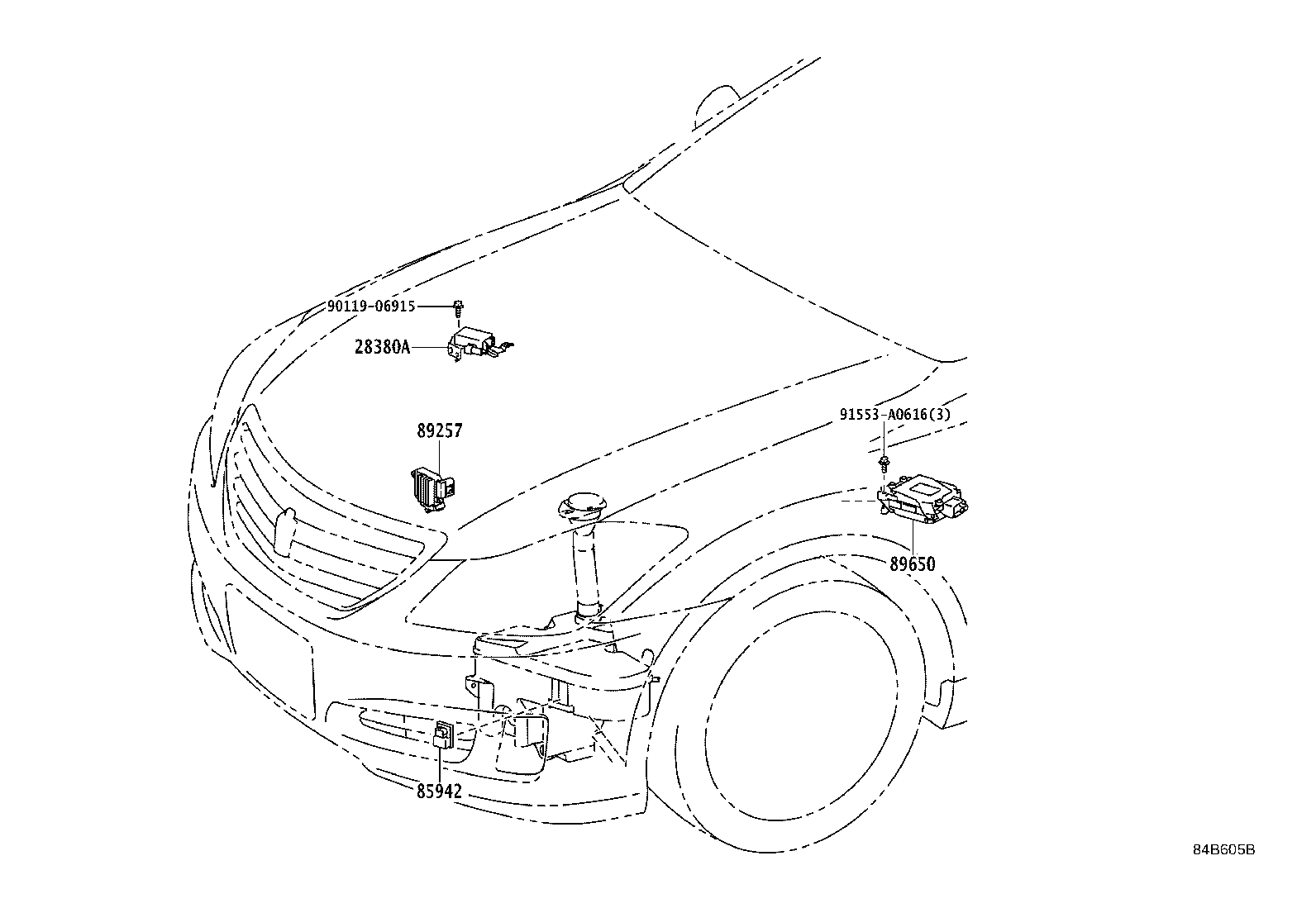

ILLUST NO. 2 OF 9(1009- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31040 |
3GRFE..GRS202 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
GRS202 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30060 |
GRS202 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30831 |
GRS202 |
1 | ||
| 89650-30832 |
GRS202 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0616 | ||||

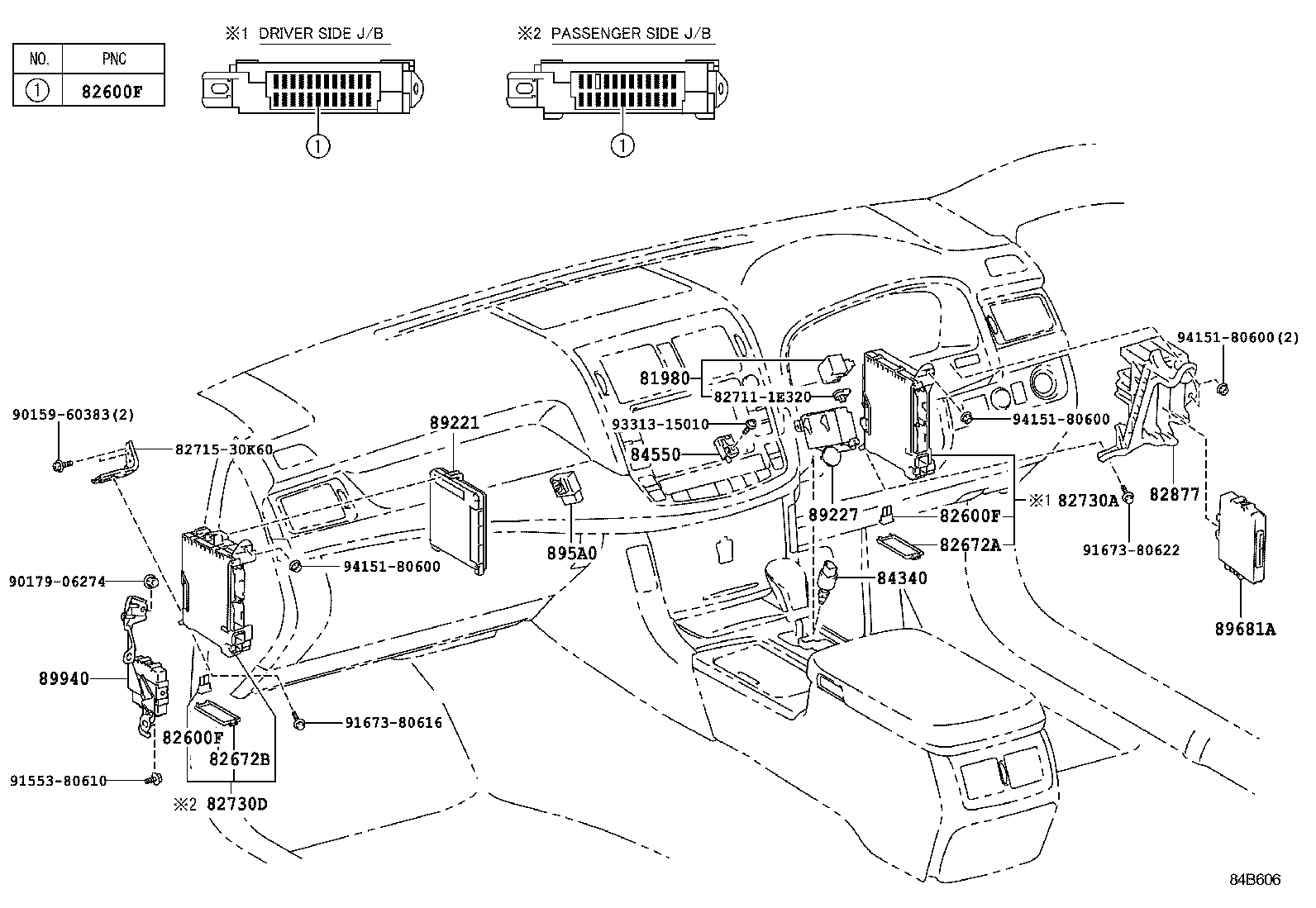

ILLUST NO. 4 OF 9(1009- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30170 |
GRS202 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS202 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS202 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS202 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRS202 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRS202 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GRS202 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GRS202 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS202 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS202 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS202 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRS202 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRS202 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GRS202 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GRS202 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS202 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS202 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS202 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRS202 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRS202 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GRS202 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GRS202 30A,MINI FUSE,GRN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30270 |
GRS202 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-30280 |
GRS202 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-30G20 |
GRS202 |
1 | ||
| 82730D - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-30G30 |
GRS202 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-30010 |
GRS202 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
GRS202 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
GRS202 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-30370 |
GRS202 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30050 |
GRS202 |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-30010 |
GRS202 |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-60020 |
GRS202 P/N LABEL=8968160020 |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-30140 |
GRS202 |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-30K60 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91673-80616 | ||||
| 91673-80622 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 9(1009- )

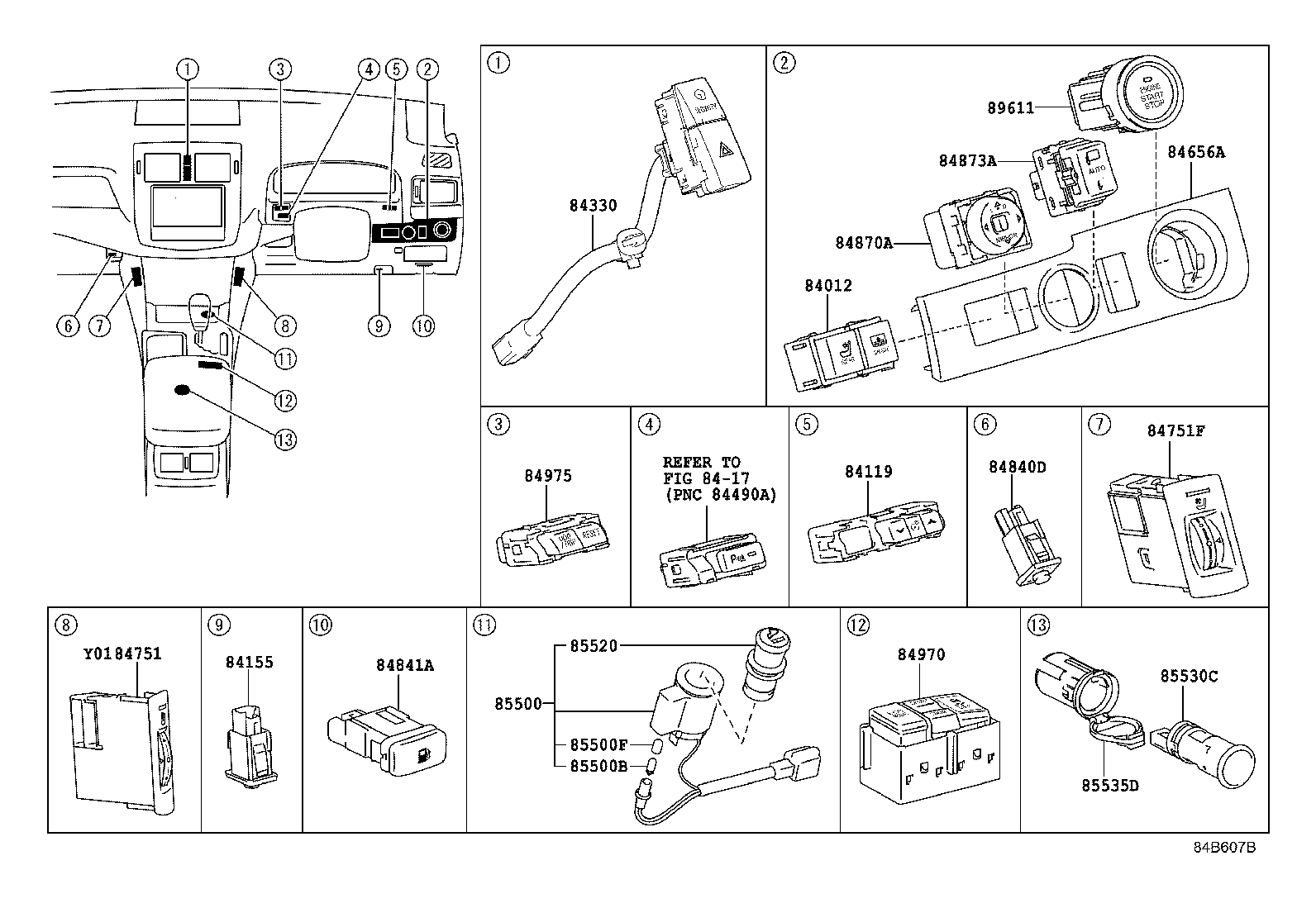

INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-30180 |
GRS202 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30280 |
GRS202 |
1 | ||
| 84155 - SWITCH, HEADLAMP SWIVEL MAIN | ||||
| 84155-48010 |
GRS202 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-30070 |
GRS202 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-30120B0 |
GRS202 GRAY,TRIM1# |
1 | ||
| 84656-30120A0 |
GRS202 SHELL,TRIM0# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-30200 |
GRS202 |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-30210 |
GRS202 |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-24020 |
GRS202 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-48010 |
GRS202 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-30041 |
GRS202 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-30030 |
GRS202 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-30160 |
GRS202 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-30050 |
GRS202 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30520 |
GRS202 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01111 |
GRS202 13.5V 2W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10510 |
GRS202 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
GRS202 |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-42010 |
GRS202 |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-30020 |
GRS202 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52012 |
GRS202 |
1 | ||
| 89611-52014 |
GRS202 |
1 | ||
| 89611-52013 |
GRS202 |
1 | ||

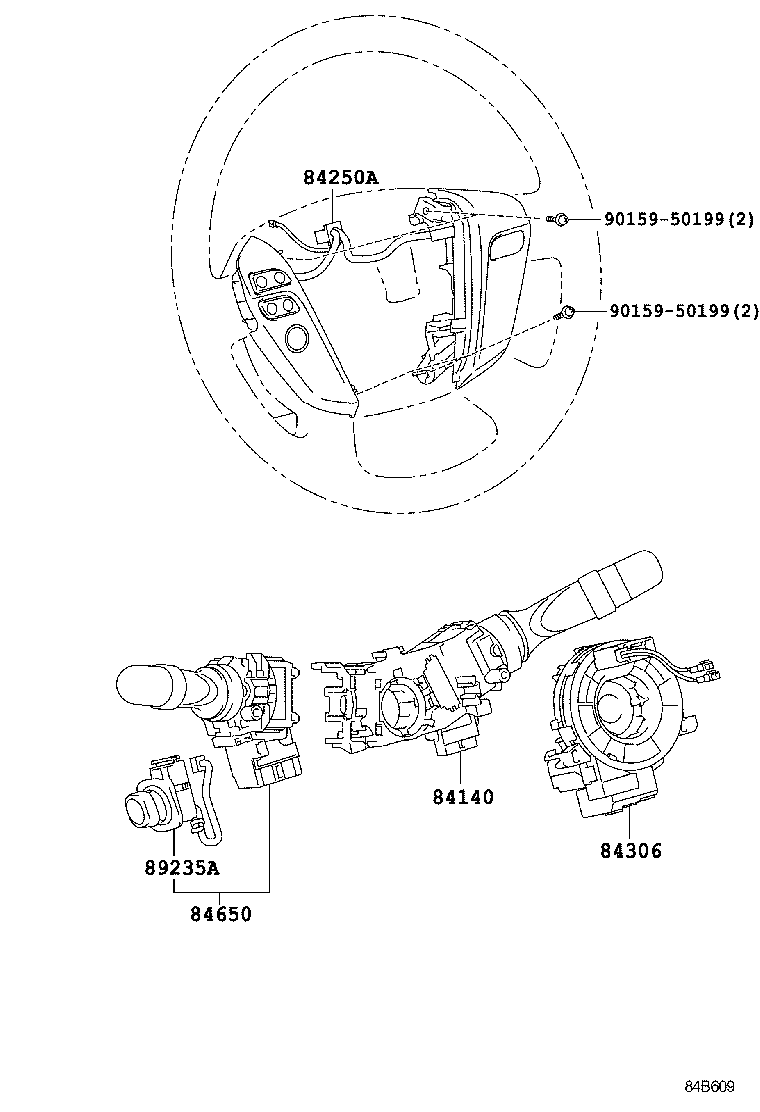

ILLUST NO. 7 OF 9(1009- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42080 |
GRS202 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30480 |
GRS202 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84307-30090 |
GRS202 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30600 |
GRS202 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-30120 |
GRS202 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

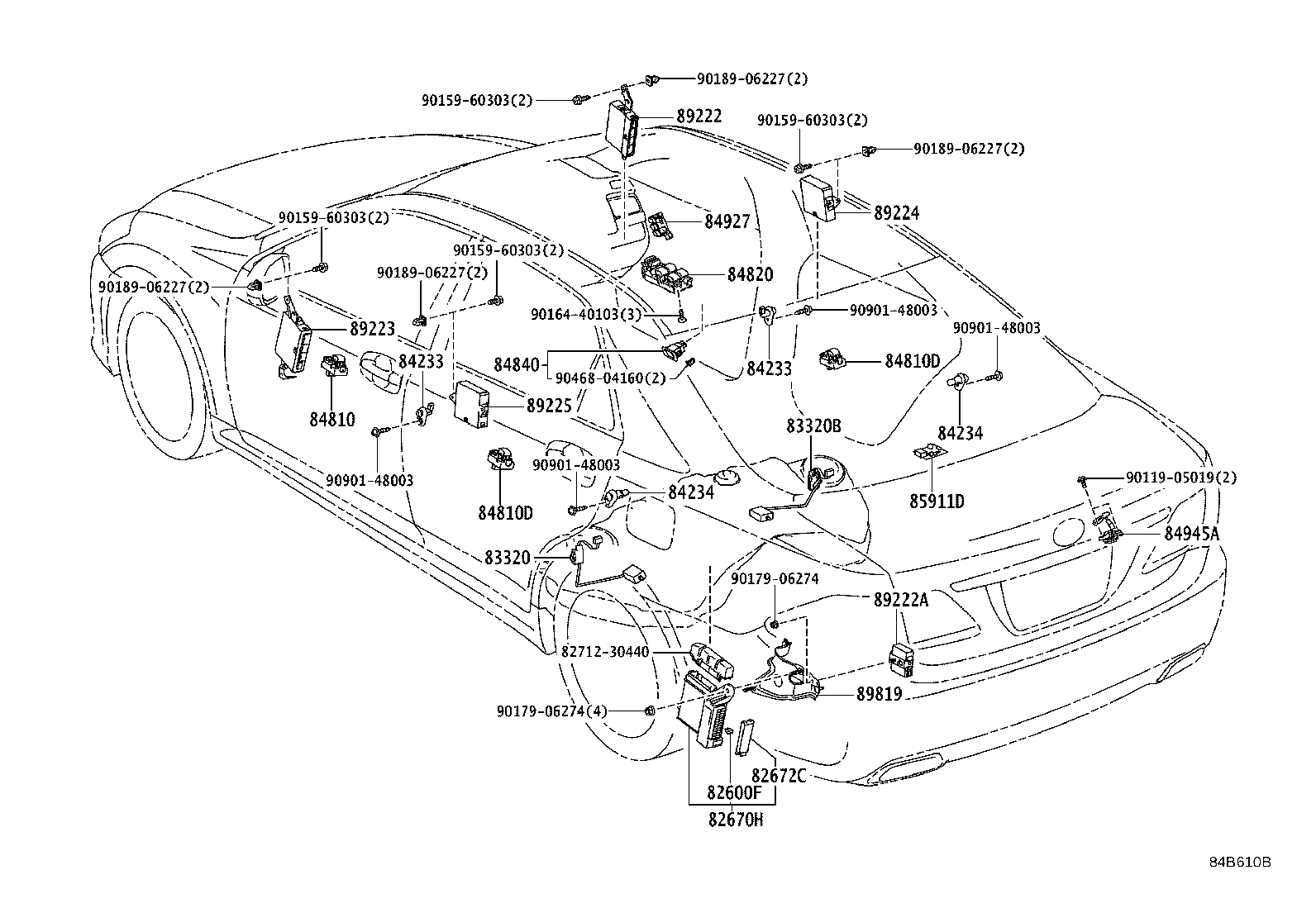

ILLUST NO. 9 OF 9(1009- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS202 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS202 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS202 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRS202 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRS202 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GRS202 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GRS202 30A,MINI FUSE,GRN |
1 | ||
| 82670H - BLOCK ASSY, LUGGAGE ROOM JUNCTION | ||||
| 82670-30300 |
GRS202 |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-30290 |
GRS202 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-30530 |
GRS202 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-30540 |
GRS202 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
GRS202 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
GRS202 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30380 |
GRS202 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30380 |
GRS202 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
GRS202 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
GRS202 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
GRS202 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-33080 |
GRS202 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140A2 |
GRS202 SHELL,TRIM0# |
1 | ||
| 84840-30140B6 |
GRS202 GRAY,TRIM1# |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-30080A0 |
GRS202 SHELL,TRIM0# |
1 | ||
| 84927-30080B0 |
GRS202 GRAY,TRIM1# |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-30010 |
GRS202 |
1 | ||
| 85911D - RELAY, REAR SUNSHADE | ||||
| 85911-30020 |
GRS202 |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-30230 |
GRS202 |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-30161 |
GRS202 |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89223-30100 |
GRS202 |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-30120 |
GRS202 |
1 | ||
| 89225 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89225-30060 |
GRS202 |
1 | ||
| 89819 - BRACKET, SEAT BELT CONTROL | ||||
| 89819-30020 |
GRS202 |
1 | ||
| Common parts | ||||
| 82712-30440 | ||||
| 90119-05019 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90179-06274 | ||||
| 90189-06227 | ||||
| 90468-04160 | ||||
| 90901-48003 | ||||
ILLUST NO. 6 OF 9(1009- )

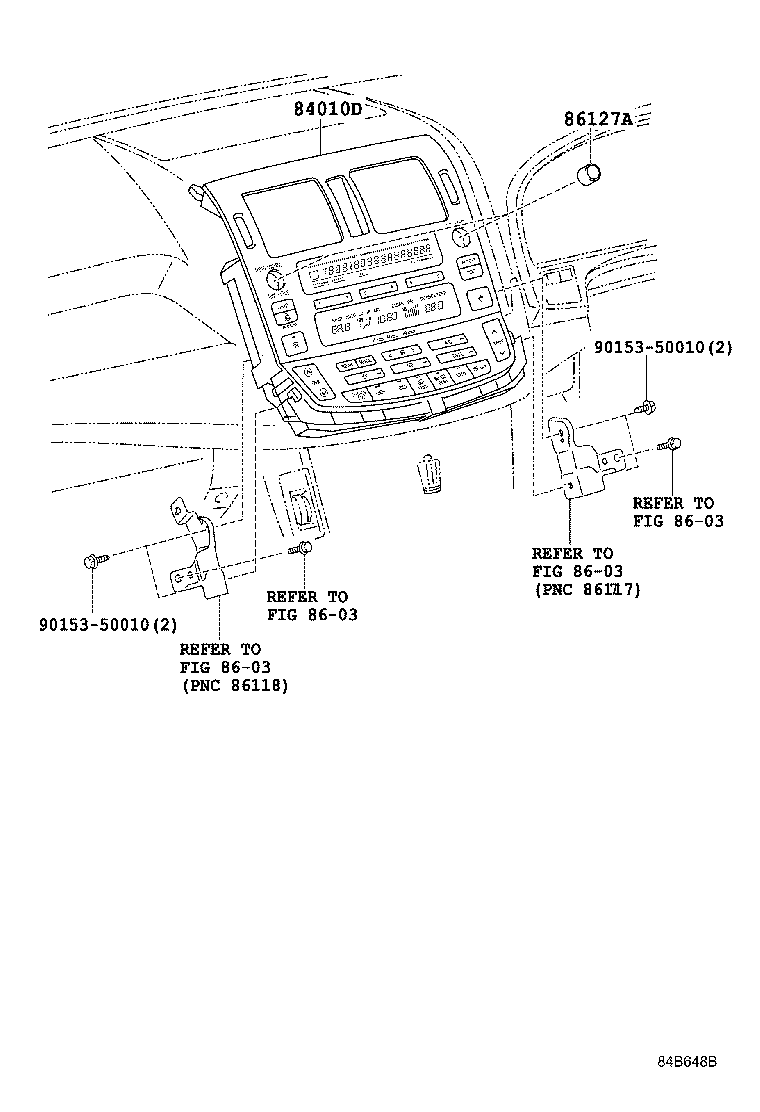

INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-30800 |
GRS202 |
1 | ||
| 86127A - KNOB,RADIO RECEIVER, NO.1 | ||||
| 86127-30100 |
GRS202 |
2 | ||
| Common parts | ||||
| 90153-50010 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 3 OF 9(1009- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
3GRFE..GRS202 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
3GRFE..GRS202 |
1 | ||
| 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30100 |
GRS202 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08304 |
GRS202 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08300 |
GRS202 50A-30A-30A,FEMALE |
1 | ||
| 90982-08299 |
GRS202 40A-40A-40A,FEMALE |
1 | ||
| 90982-08302 |
GRS202 50A-30A-50A,FEMALE |
1 | ||
| 90982-08305 |
GRS202 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRS202 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRS202 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRS202 25A,MINI FUSE |
1 | ||
| 90982-09023 |
GRS202 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRS202 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GRS202 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
GRS202 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRS202 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30210 |
GRS202 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30310 |
GRS202 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-30A70 |
GRS202 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30B00 |
GRS202 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-30B10 |
GRS202 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30821 |
GRS202 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30841 |
GRS202 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30851 |
GRS202 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30270 |
GRS202 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30290 |
GRS202 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30220 |
GRS202 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-30080 |
GRS202 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02025 |
GRS202 |
2 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GRS202 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GRS202 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
GRS202 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRS202 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
GRS202 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GRS202 |
1 | ||
| 86516A - CONDENSER | ||||
| 82930-30010 |
GRS202 |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-02025 |
GRS202 |
1 | ||
| Common parts | ||||
| 82715-30B20 | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
