GRS202R-AETQK (2010)
Toyota Crown
Production
Sep 2010
-
Dec 2012
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1009- )

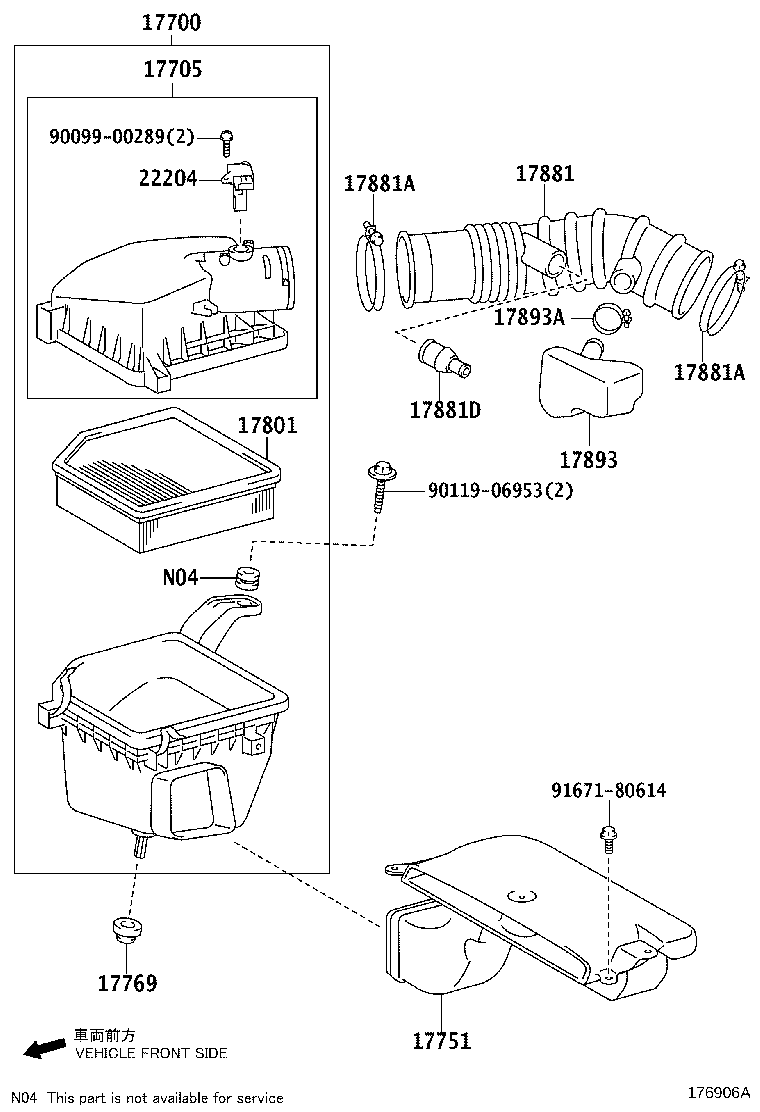

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31A10 |
3GRFE..GRS202 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-31440 |
3GRFE..GRS202 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-31330 |
3GRFE..GRS202 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-31020 |
3GRFE..GRS202 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31100 |
3GRFE..GRS202 |
1 | ||
| 17801-31170 |
3GRFE..GRS202 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0P020 |
3GRFE..GRS202 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
3GRFE..GRS202 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
3GRFE..GRS202 |
2 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 17878-0V030 |
3GRFE..GRS202 |
1 | ||
| 90904-06008 |
3GRFE..GRS202 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0P020 |
3GRFE..GRS202 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10330 |
3GRFE..GRS202 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0V020 |
3GRFE..GRS202 MARK 22204-0V020 |
1 | ||
| 22204-0T040 |
3GRFE..GRS202 MARK 22204-0T040 |
1 | ||
| 22204-28010 |
3GRFE..GRS202 MARK 22204-28010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 91671-80614 | ||||
