GRS202R-AETQK (2010)
Toyota Crown
Production
Sep 2010
-
Dec 2012
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1009- )

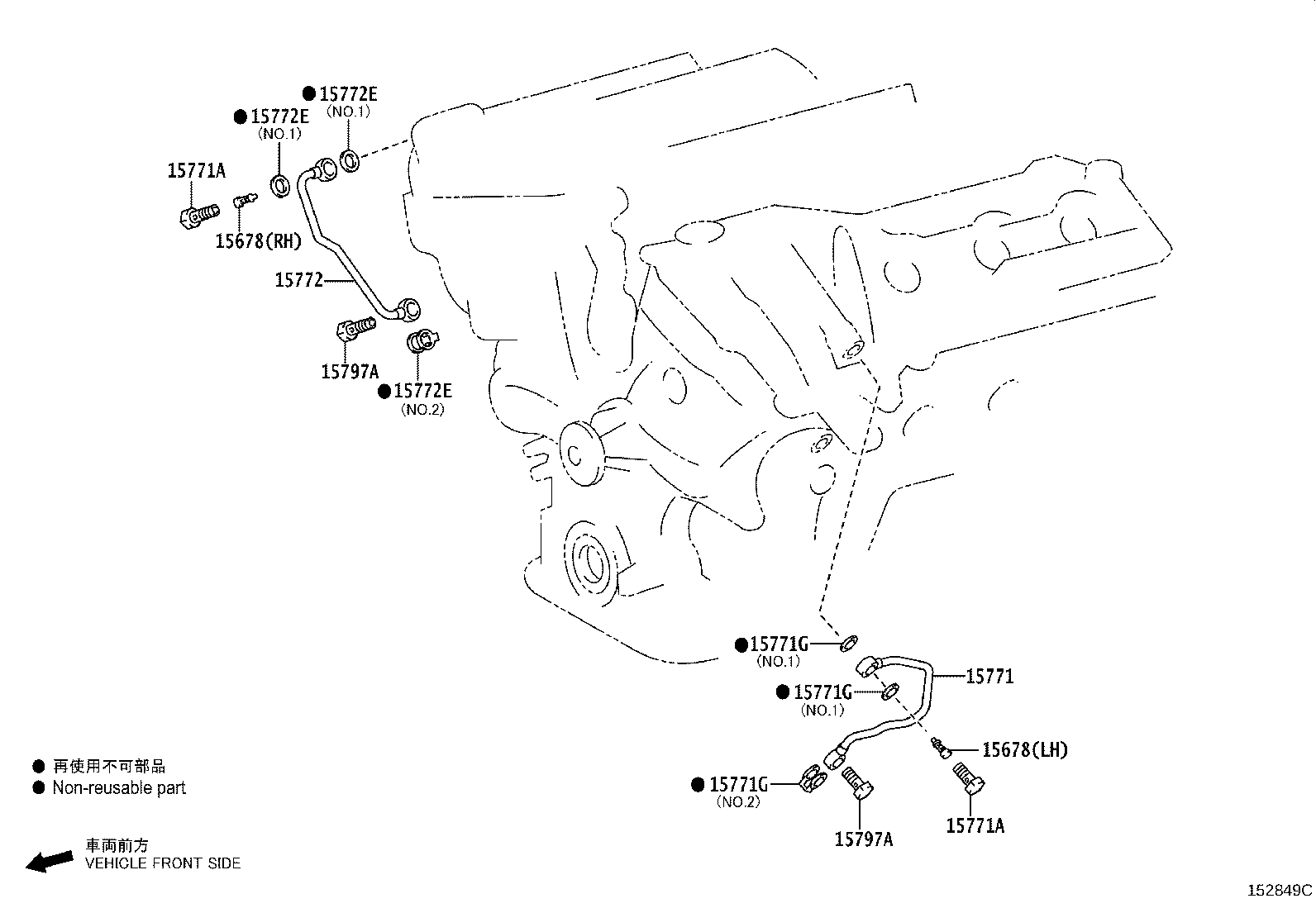

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15678 - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
3GRFE..GRS202 LH,RH |
1 | ||
| 15678 - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
3GRFE..GRS202 LH,RH |
1 | ||
| 15771 - PIPE, OIL, NO.1 | ||||
| 15771-31010 |
3GRFE..GRS202 |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
3GRFE..GRS202 |
2 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-16043 |
3GRFE..GRS202 |
2 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
3GRFE..GRS202 NO.1 |
2 | ||
| 90430-16016 |
3GRFE..GRS202 NO.2 |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
3GRFE..GRS202 NO.1 |
2 | ||
| 90430-16016 |
3GRFE..GRS202 NO.2 |
1 | ||
| 15771G - GASKET | ||||
| 90430-16012 |
3GRFE..GRS202 NO.1 |
2 | ||
| 90430-16016 |
3GRFE..GRS202 NO.2 |
1 | ||
| 15772 - PIPE, OIL, NO.2 | ||||
| 15772-31010 |
3GRFE..GRS202 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
3GRFE..GRS202 NO.2 |
1 | ||
| 90430-16012 |
3GRFE..GRS202 NO.1 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
3GRFE..GRS202 NO.2 |
1 | ||
| 90430-16012 |
3GRFE..GRS202 NO.1 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-16016 |
3GRFE..GRS202 NO.2 |
1 | ||
| 90430-16012 |
3GRFE..GRS202 NO.1 |
2 | ||
| 15797A - BOLT, OIL CHECK VALVE | ||||
| 15797-31010 |
3GRFE..GRS202 |
2 | ||
| 15797A - BOLT, OIL CHECK VALVE | ||||
| 15797-31010 |
3GRFE..GRS202 |
2 | ||
