GRS182R-AETQK (2004)
Toyota Crown
Production
Nov 2004
-
Sep 2005
Engine
3GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0411- )

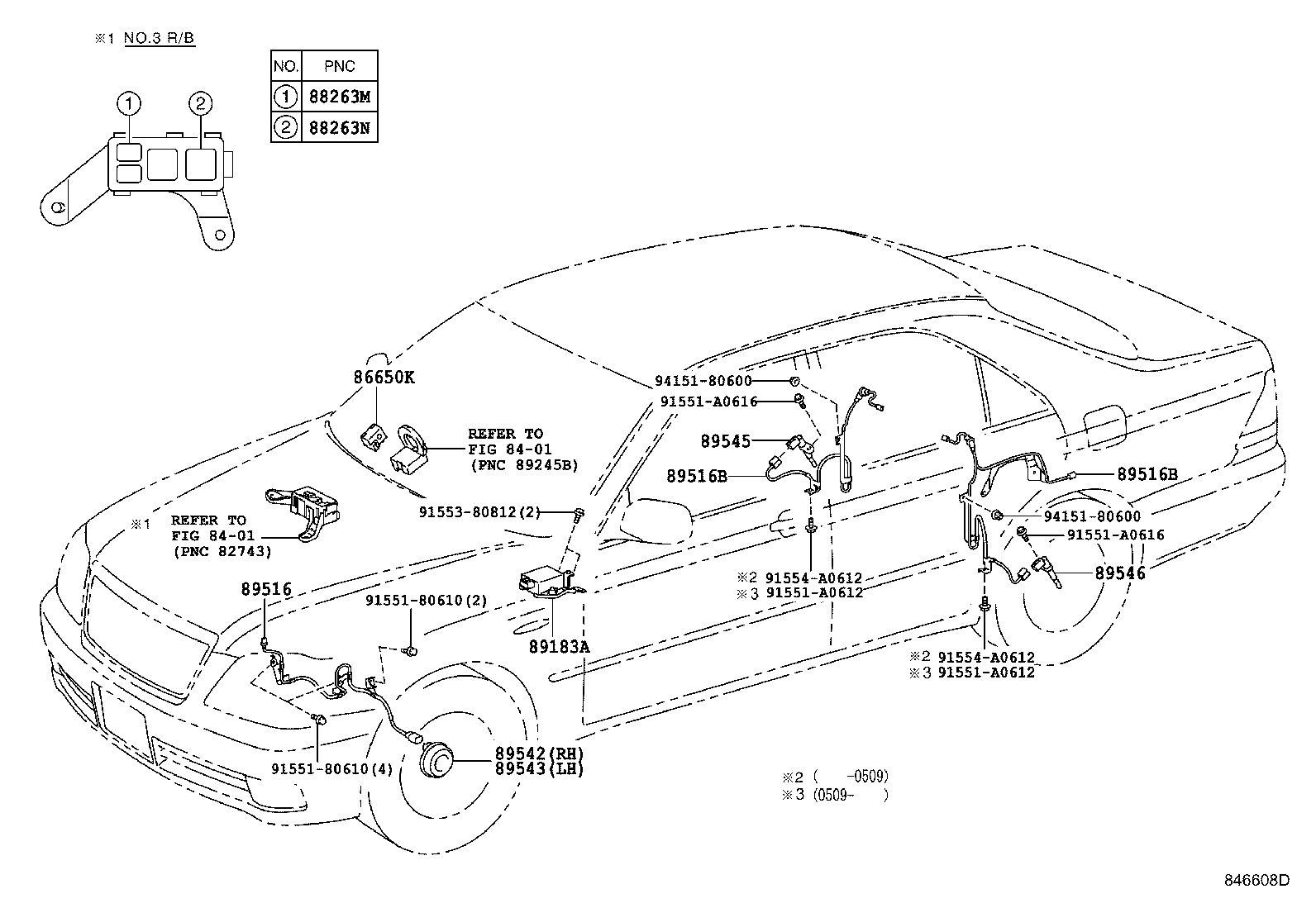

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86652-48010 |
GRS182 |
1 | ||
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-32070 |
GRS182 |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-21010 |
GRS182 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89180-30070 |
GRS182 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30020 |
GRS182 RH |
1 | ||
| 89516-30030 |
GRS182 LH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30080 |
GRS182 RH |
1 | ||
| 89516-30090 |
GRS182 LH |
1 | ||
| 89516-22020 |
GRS182 RH |
1 | ||
| 89516-22030 |
GRS182 LH |
1 | ||
| 89516-22040 |
GRS182 LH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-30080 |
GRS182 RH |
1 | ||
| 89516-30090 |
GRS182 LH |
1 | ||
| 89516-22020 |
GRS182 RH |
1 | ||
| 89516-22030 |
GRS182 LH |
1 | ||
| 89516-22040 |
GRS182 LH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-30260 |
GRS182 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-30260 |
GRS182 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-30070 |
GRS182 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-30070 |
GRS182 |
1 | ||
| Common parts | ||||
| 91551-80610 | ||||
| 91551-A0612 | ||||
| 91551-A0616 | ||||
| 91553-80812 | ||||
| 91554-A0612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
