GRS182R-AETQK (2004)
Toyota Crown
ILLUST NO. 3 OF 9(0411- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-30B80 |
GRS182 |
1 | ||
| 82141-30B80 |
GRS182 PART NUMBER LABEL=82141-30B80 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30050 |
GRS182 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-30030 |
GRS182 LH |
1 | ||
| 82734-30020 |
GRS182 RH |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-30030 |
GRS182 LH |
1 | ||
| 82734-30020 |
GRS182 RH |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33820 |
GRS182 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRS182 |
2 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRS182 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF 9(0411- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30A40 |
GRS182 |
1 | ||
| 82151-30A10 |
GRS182 W(REAR AIR CONDITIONER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30A10 |
GRS182 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30560 |
GRS182 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30480 |
GRS182 |
1 | ||
| Common parts | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 6705 | ||||
| 8121 | ||||

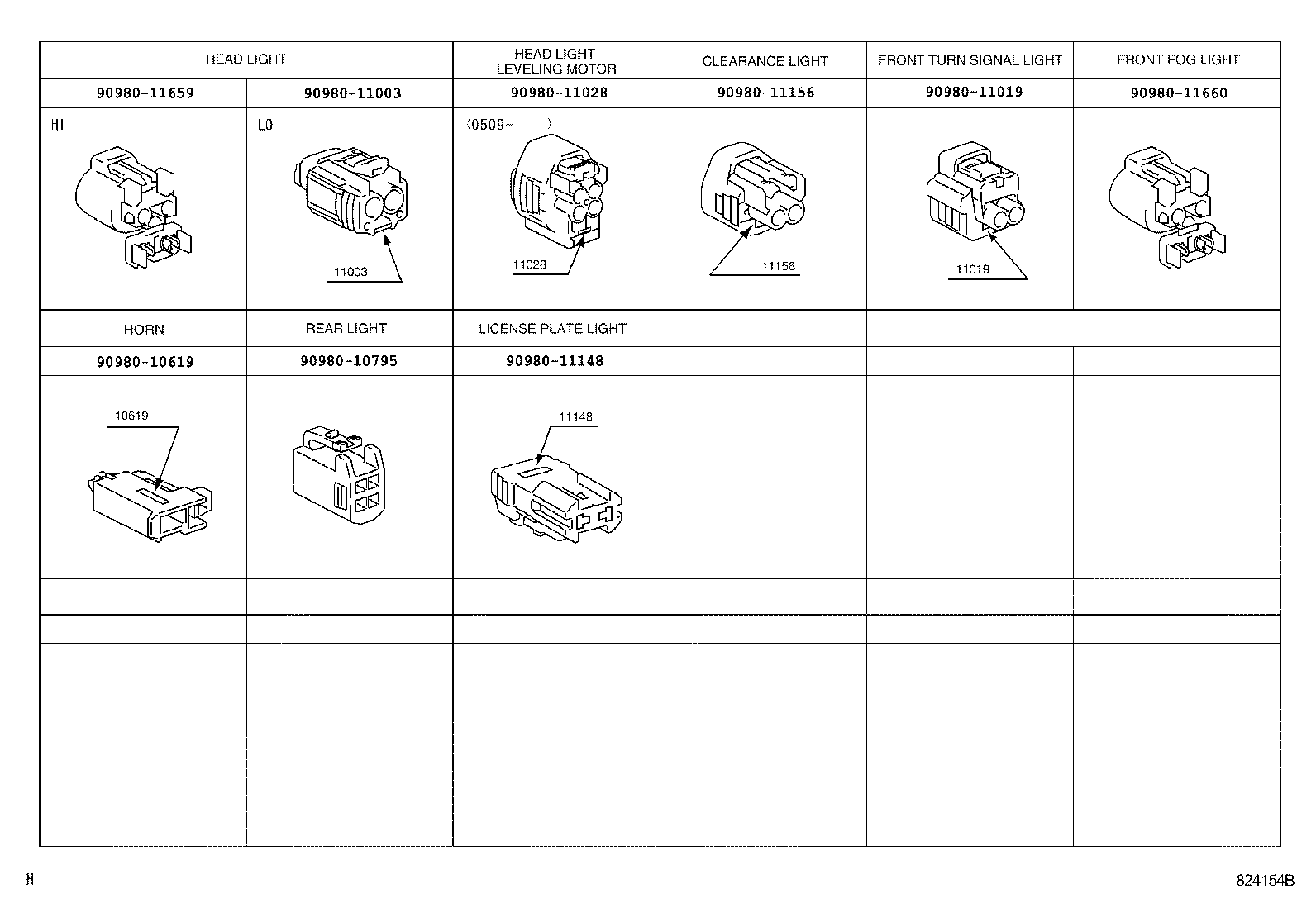

ILLUST NO. 9 OF 9(0411- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11028 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||

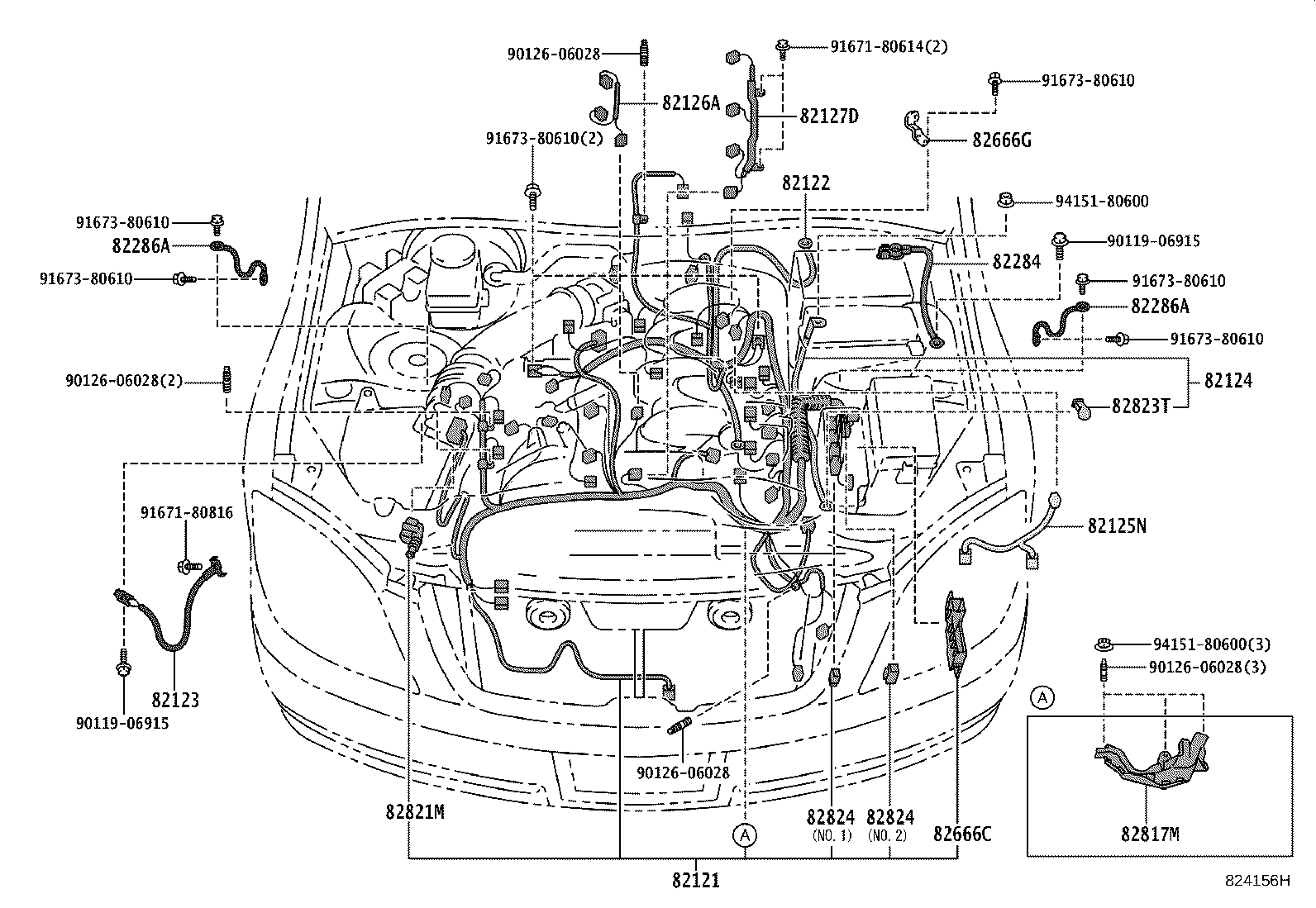

ILLUST NO. 2 OF 9(0411- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-30A30 |
GRS182 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30800 |
GRS182 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRS182 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30290 |
GRS182 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GRS182 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-30030 |
GRS182 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30030 |
GRS182 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30010 |
GRS182 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS182 |
2 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30010 |
GRS182 |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30740 |
GRS182 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30780 |
GRS182 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-30A80 |
GRS182 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-30670 |
GRS182 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRS182 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS182 NO.1 |
1 | ||
| 82824-30180 |
GRS182 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GRS182 NO.1 |
1 | ||
| 82824-30180 |
GRS182 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06028 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80610 | ||||
| 94151-80600 | ||||

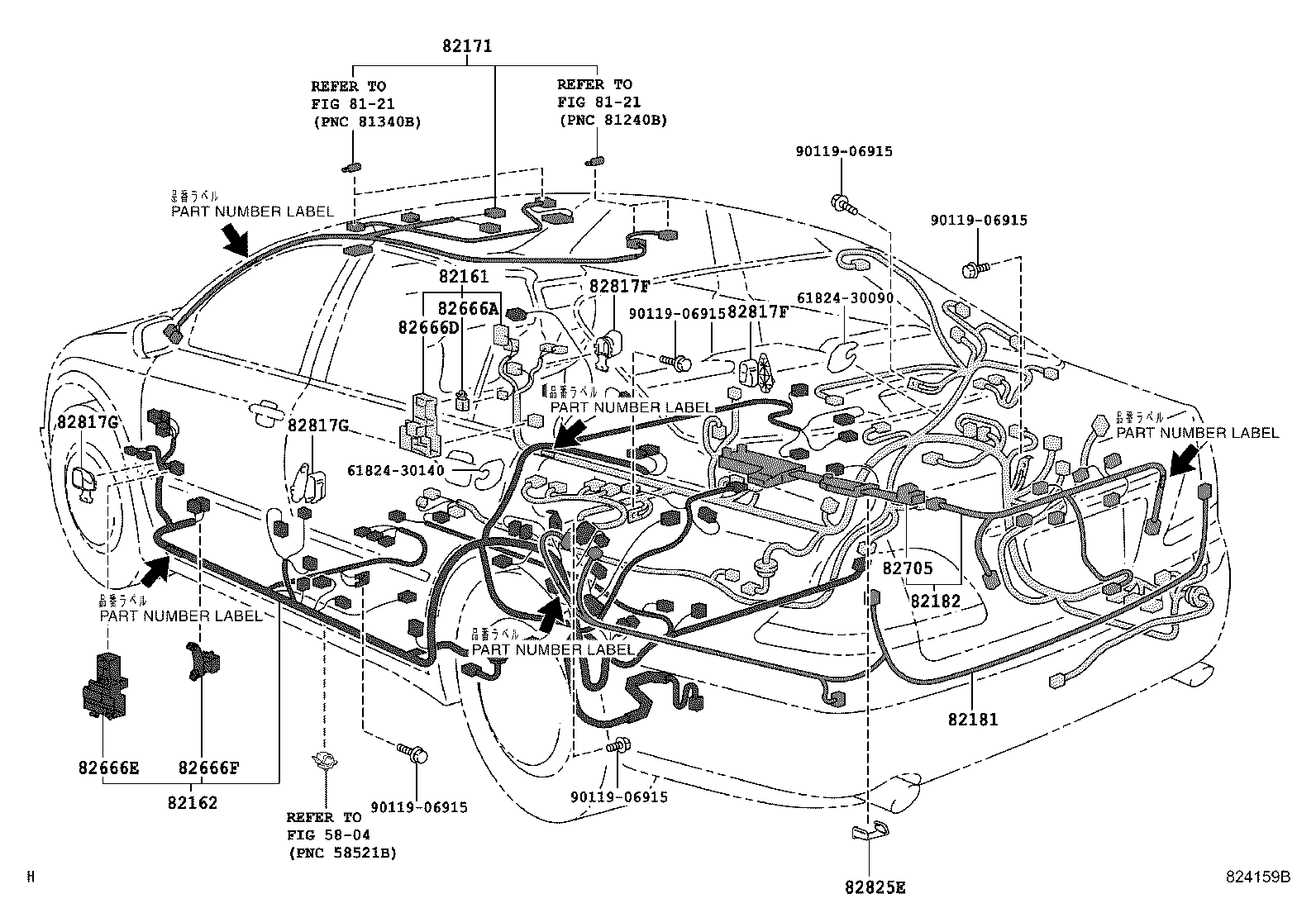

ILLUST NO. 5 OF 9(0411- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-30A60 |
GRS182 SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN) |
1 | ||
| 82161-30A60 |
GRS182 PART NUMBER LABEL=82161-30A60 |
1 | ||
| 82161-30B10 |
GRS182 PART NUMBER LABEL=82161-30B10 |
1 | ||
| 82161-30B10 |
GRS182 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30A40 |
GRS182 W(REAR AIR CONDITIONER)&SUN SHADE-WITH(REAR,DOOR)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN) |
1 | ||
| 82162-30A40 |
GRS182 SUN SHADE-WITH(REAR)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN) |
1 | ||
| 82162-30A70 |
GRS182 PART NUMBER LABEL=82162-30A70 |
1 | ||
| 82162-30A80 |
GRS182 |
1 | ||
| 82162-30A51 |
GRS182 PART NUMBER LABEL=82162-30A51 |
1 | ||
| 82162-30A70 |
GRS182 SUN SHADE-WITH(REAR) |
1 | ||
| 82162-30A40 |
GRS182 PART NUMBER LABEL=82162-30A40 |
1 | ||
| 82162-30A51 |
GRS182 SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN) |
1 | ||
| 82162-30A80 |
GRS182 PART NUMBER LABEL=82162-30A80 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30B00 |
GRS182 |
1 | ||
| 82171-30B00 |
GRS182 PART NUMBER LABEL=82171-30B00 |
1 | ||
| 82171-30A80 |
GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN) |
1 | ||
| 82171-30A80 |
GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
1 | ||
| 82171-30A50 |
GRS182 W(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
1 | ||
| 82171-30A60 |
GRS182 WITH(TILT & SLIDE MOON ROOF) |
1 | ||
| 82171-30B00 |
GRS182 PART NUMBER LABEL=82171-30B00 |
1 | ||
| 82171-30A50 |
GRS182 PART NUMBER LABEL=82171-30A50 |
1 | ||
| 82171-30A60 |
GRS182 PART NUMBER LABEL=82171-30A60 |
1 | ||
| 82171-30A80 |
GRS182 PART NUMBER LABEL=82171-30A80 |
1 | ||
| 82171-30B00 |
GRS182 SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN) |
1 | ||
| 82171-30A80 |
GRS182 PART NUMBER LABEL=82171-30A80 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30170 |
GRS182 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-30070 |
GRS182 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-16030 |
GRS182 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30750 |
GRS182 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30760 |
GRS182 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30770 |
GRS182 |
1 | ||
| 82705 - SPOOL SUB-ASSY, WIRING HARNESS | ||||
| 82705-30020 |
GRS182 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-30A10 |
GRS182 COWL SIDE |
1 | ||
| 82817-48230 |
GRS182 CENTER PILLAR |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-30A10 |
GRS182 COWL SIDE |
1 | ||
| 82817-48230 |
GRS182 CENTER PILLAR |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30A10 |
GRS182 COWL SIDE |
1 | ||
| 82817-48230 |
GRS182 CENTER PILLAR |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30A10 |
GRS182 COWL SIDE |
1 | ||
| 82817-48230 |
GRS182 CENTER PILLAR |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82817-30A70 |
GRS182 |
1 | ||
| Common parts | ||||
| 61824-30090 | ||||
| 61824-30140 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8121 | ||||

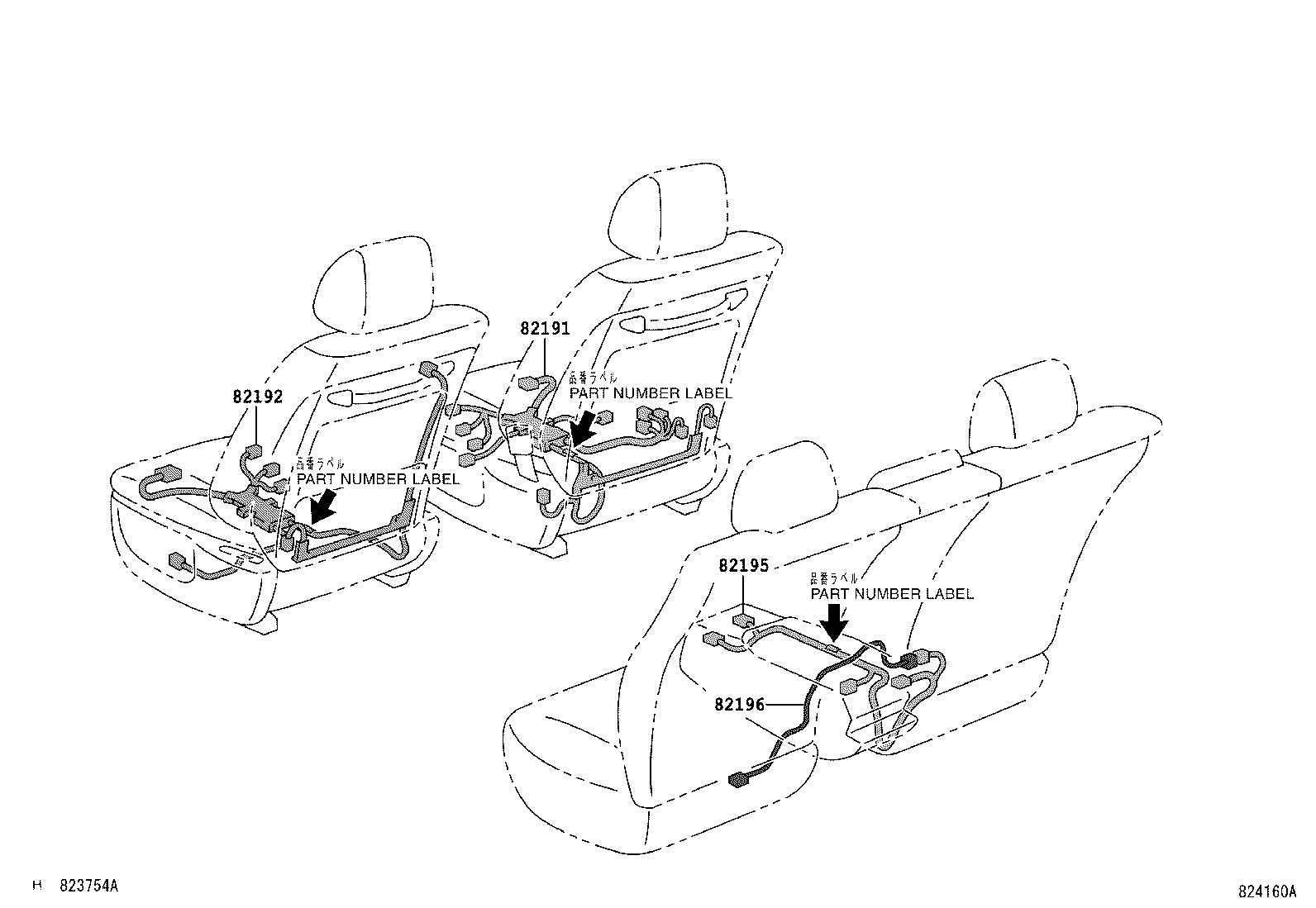

ILLUST NO. 6 OF 9(0411- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30170 |
GRS182 SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191-30150 |
GRS182 W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191-30160 |
GRS182 W(REAR AIR CONDITIONER) |
1 | ||
| 82191-30180 |
GRS182 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30170 |
GRS182 |
1 | ||
| 82192-30160 |
GRS182 SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-30030 |
GRS182 |
1 | ||
| 82195-30010 |
GRS182 W(REAR AIR CONDITIONER)&SUN SHADE-WITH(REAR,DOOR)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE) |
1 | ||
| 82195-30020 |
GRS182 W(REAR AIR CONDITIONER)&SUN SHADE-WITH(REAR,DOOR)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE) |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-30100 |
GRS182 SEAT COVER MATERIAL-LEATHER |
1 | ||

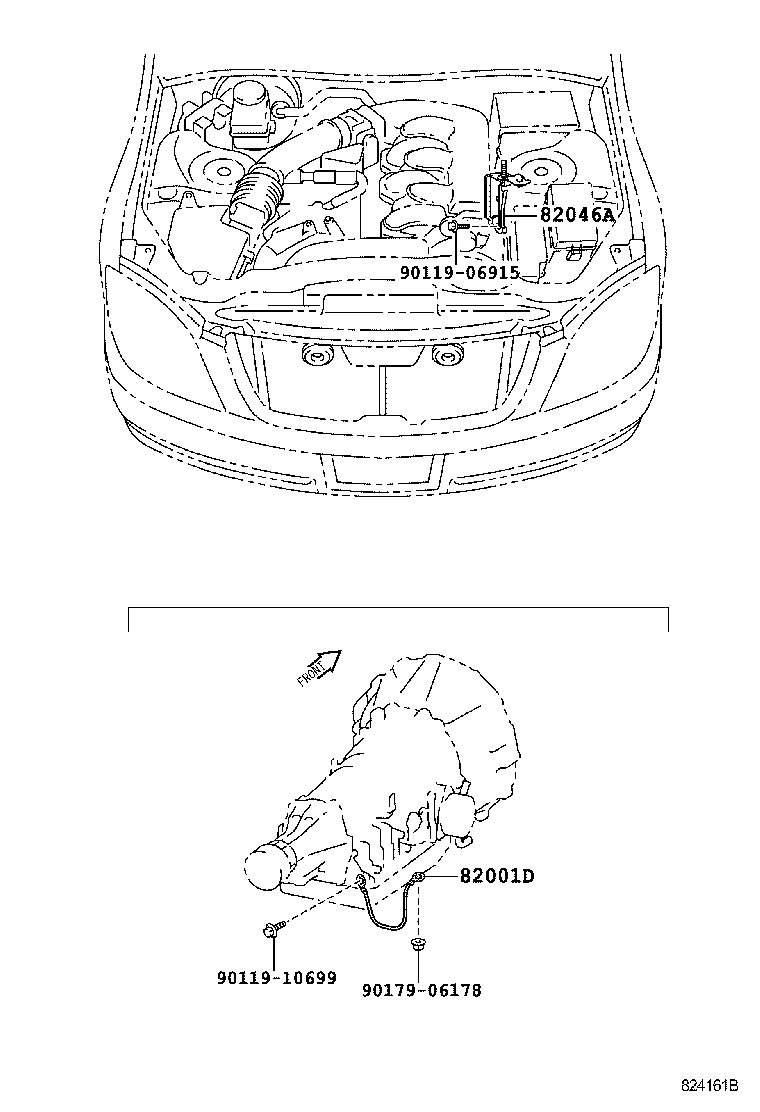

ILLUST NO. 8 OF 9(0411- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07418 |
GRS182 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30100 |
GRS182 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-10699 | ||||
| 90179-06178 | ||||

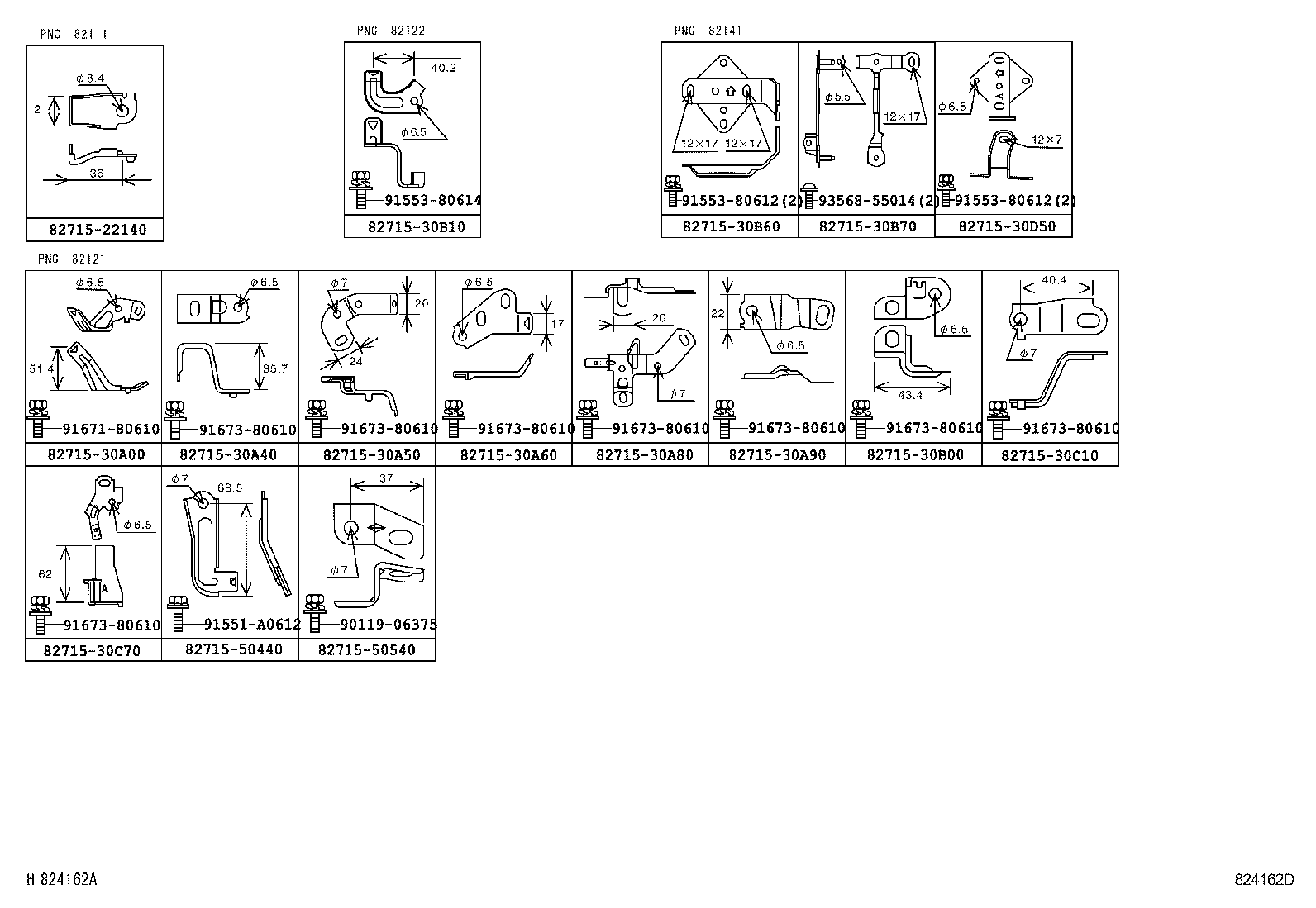

ILLUST NO. 7 OF 9(0411- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-22140 | ||||
| 82715-30A00 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30B10 | ||||
| 82715-30B60 | ||||
| 82715-30B70 | ||||
| 82715-30C10 | ||||
| 82715-30C70 | ||||
| 82715-30D50 | ||||
| 82715-50440 | ||||
| 82715-50540 | ||||
| 90119-06375 | ||||
| 91551-A0612 | ||||
| 91553-80612 | ||||
| 91553-80614 | ||||
| 91671-80610 | ||||
| 91673-80610 | ||||
| 93568-55014 | ||||

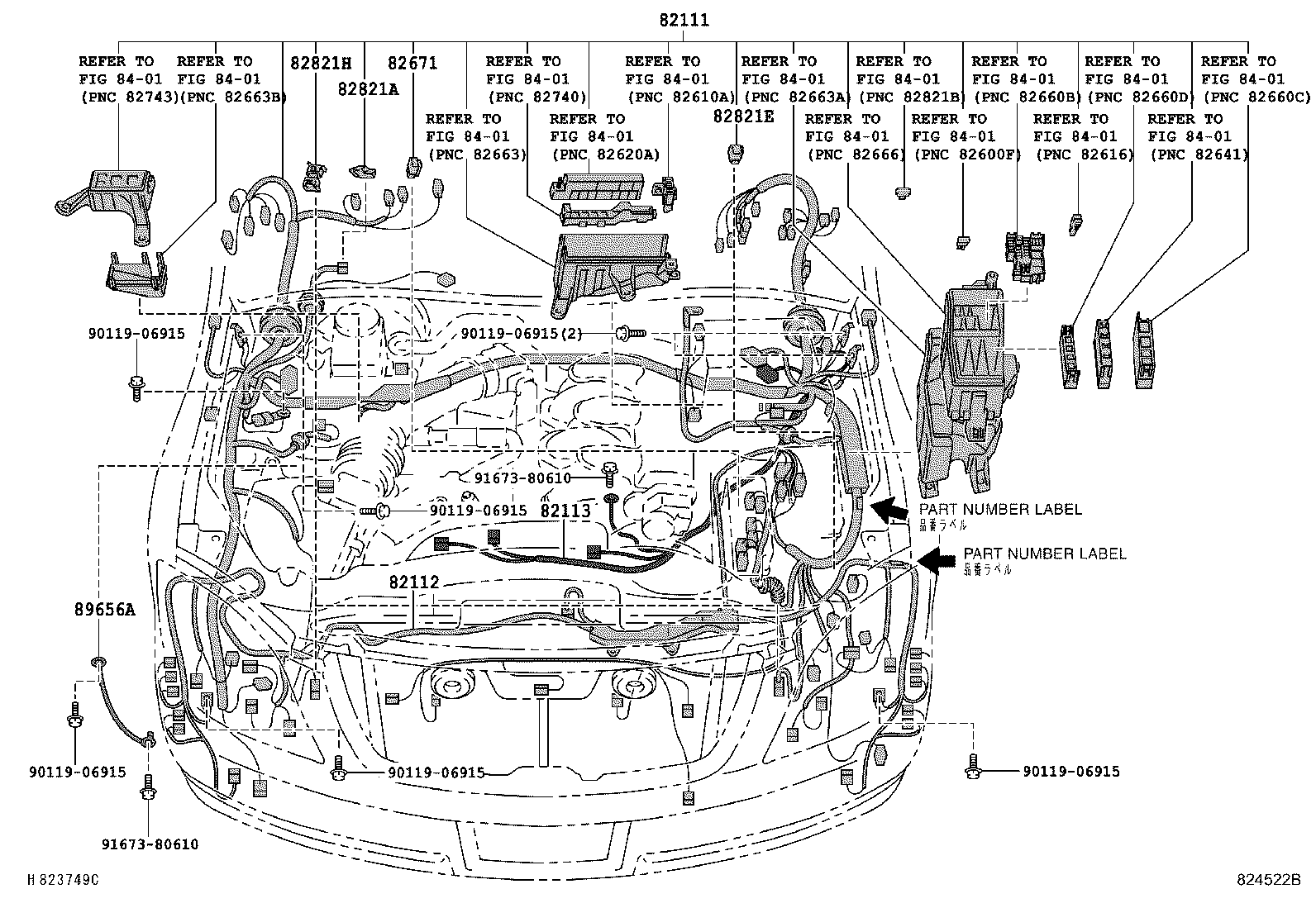

ILLUST NO. 1 OF 9(0411- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-30B00 |
GRS182 |
1 | ||
| 82111-30B00 |
GRS182 PART NUMBER LABEL=82111-30B00 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30780 |
GRS182 W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX) |
1 | ||
| 82112-30790 |
GRS182 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30450 |
GRS182 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30350 |
GRS182 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-22120 |
GRS182 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-35040 |
GRS182 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GRS182 |
2 | ||
| 89656A - WIRE, POWER STEERING EARTH | ||||
| 89656-30010 |
GRS182 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91673-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
