GRS182R-AETQK (2004)

Toyota Crown

Production Nov 2004 - Sep 2005
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411- )

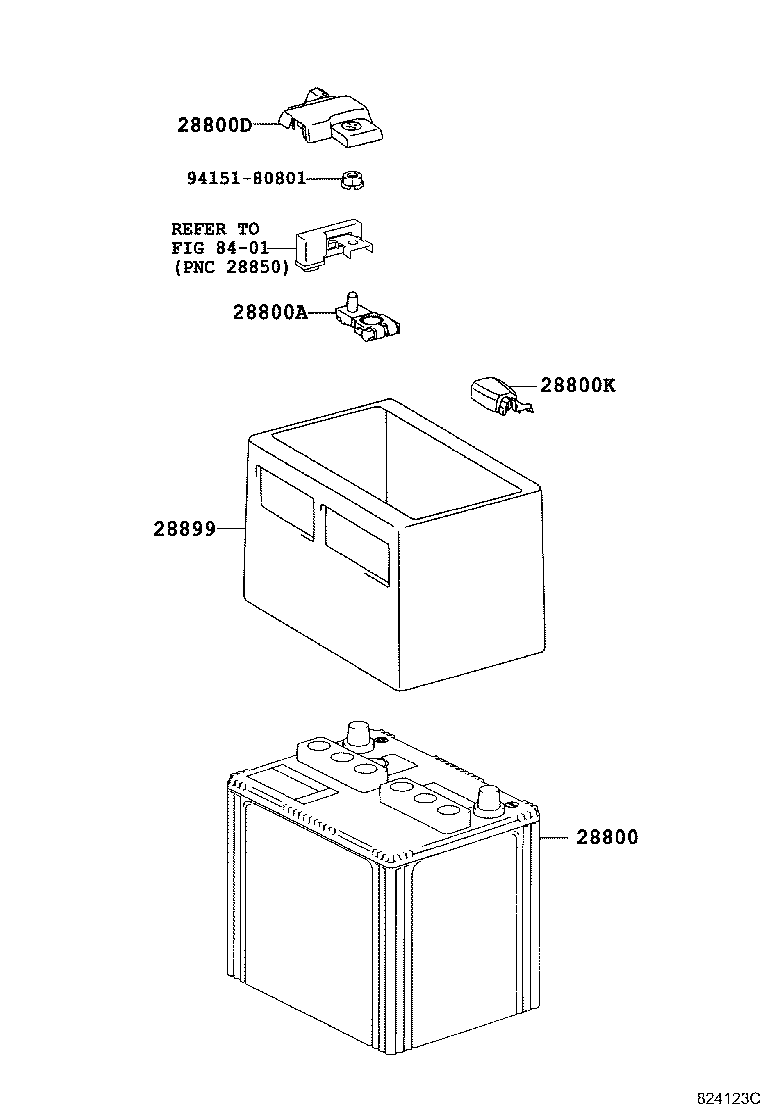

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800K 28899 8401 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-31260

3GRFE..GRS182

55D23L,GS

 1
28800-42041

3GRFE..GRS182

55D23L,YUASA

 1
28800-76090

3GRFE..GRS182

55D23L,PANASONIC

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

3GRFE..GRS182

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-30640

3GRFE..GRS182

 1
28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)
82821-50450

3GRFE..GRS182

 1
28899 - INSULATOR, BATTERY
28899-31010

3GRFE..GRS182

 1
Common parts
94151-80801
Linked diagrams
8401
