GRS182R-AETQK (2004)

Toyota Crown

Production Nov 2004 - Sep 2005
Engine 3GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0411-0802)

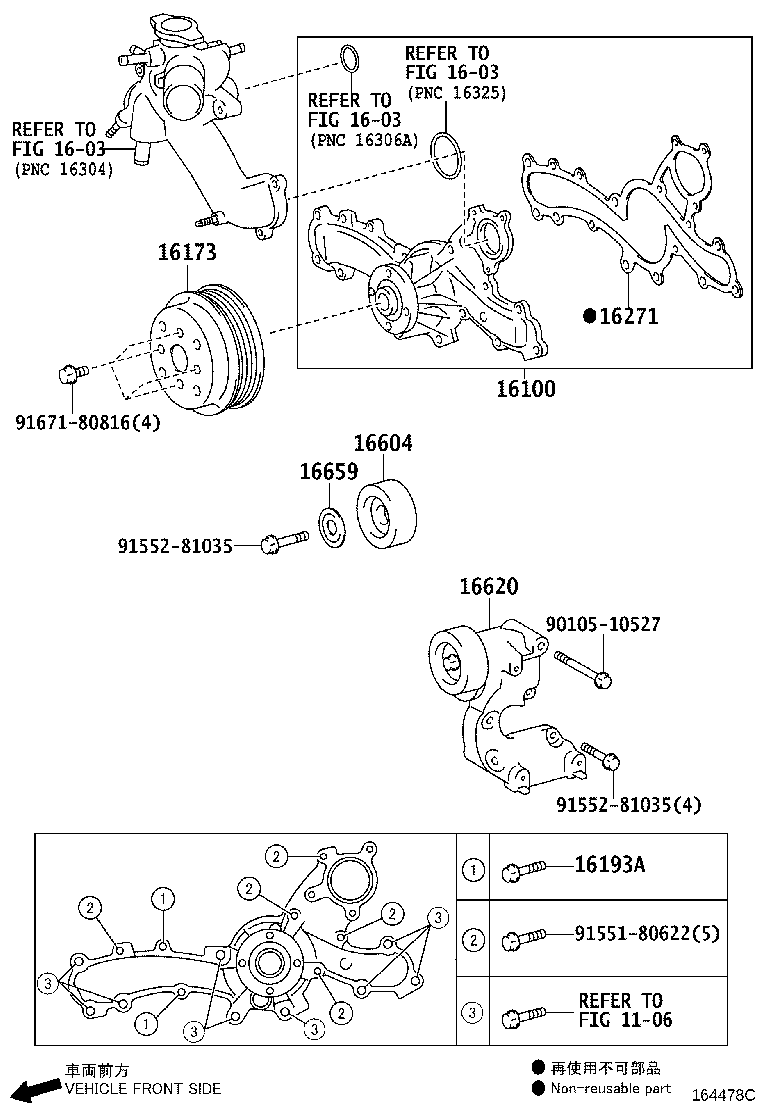

Click highlighted areas on diagram

diagram 1106 1603 1603 1603 16100 16173 16193A 16271 16604 16620 16659 9010510527 9155180622 9155281035 9155281035 9167180816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39435

3GRFE..GRS182

 1
16173 - PULLEY, WATER PUMP
16173-31010

3GRFE..GRS182

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

3GRFE..GRS182

 2
16271 - GASKET, WATER PUMP
16271-31020

3GRFE..GRS182

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31010

3GRFE..GRS182

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31021

3GRFE..GRS182

 1
16620-31020

3GRFE..GRS182

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

3GRFE..GRS182

 1
Common parts
90105-10527
91551-80622
91552-81035
91671-80816
Linked diagrams
1106
1603
