RX73R-XEMNSN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810-9302)

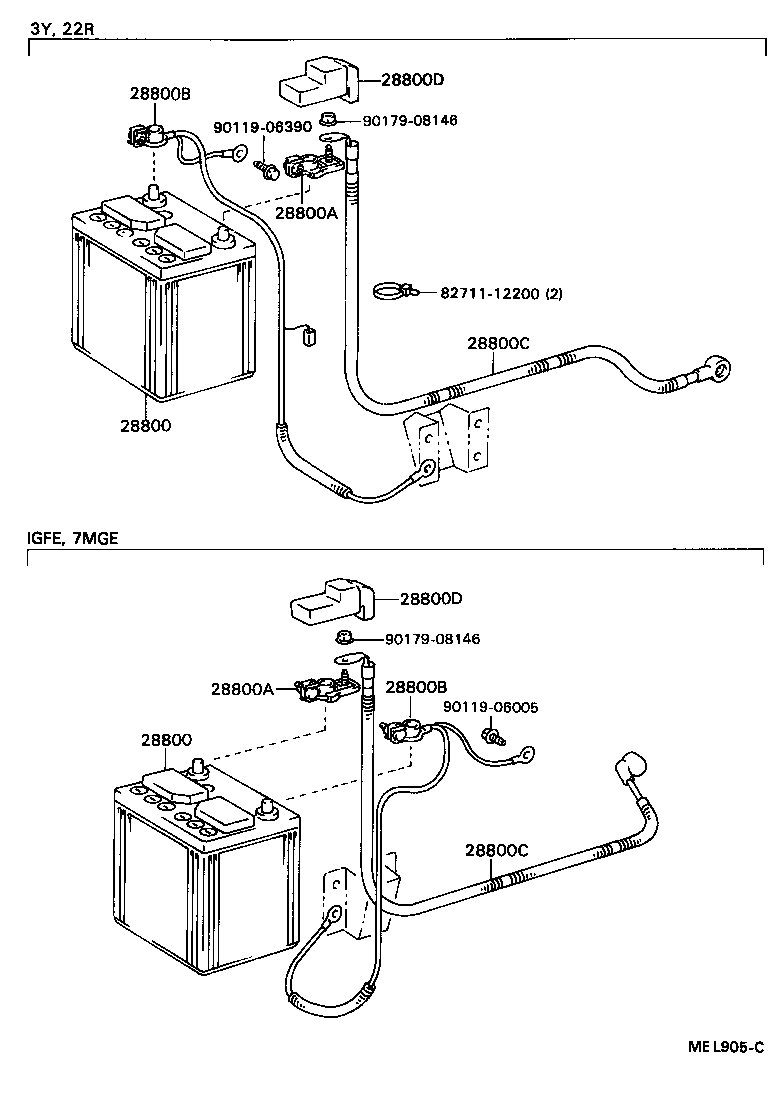

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 8271112200 9011906005 9011906390 9017908146 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-14010

22R,3Y..RX7#,YX72..SA

55D23R

 1
28800 - BATTERY
28800-14010

22R,3Y..RX7#,YX72..SA

55D23R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

22R,3Y..RX7#,YX72..SA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

22R,3Y..RX7#,YX72..SA

 1
28800B - CABLE, BATTERY TO GROUND
90982-02266

22R,3Y..RX7#,YX72..SA

 1
28800B - CABLE, BATTERY TO GROUND
90982-02266

22R,3Y..RX7#,YX72..SA

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-22070

22R,3Y..RX7#,YX72

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-22070

22R,3Y..RX7#,YX72

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72

 1
Common parts
82711-12200
90119-06005
90119-06390
90179-08146
