RX72RG-XWMNSN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8810-9302)RX7#..RHD ; (8812-9205)MX75,YX72..5F

Click highlighted areas on diagram

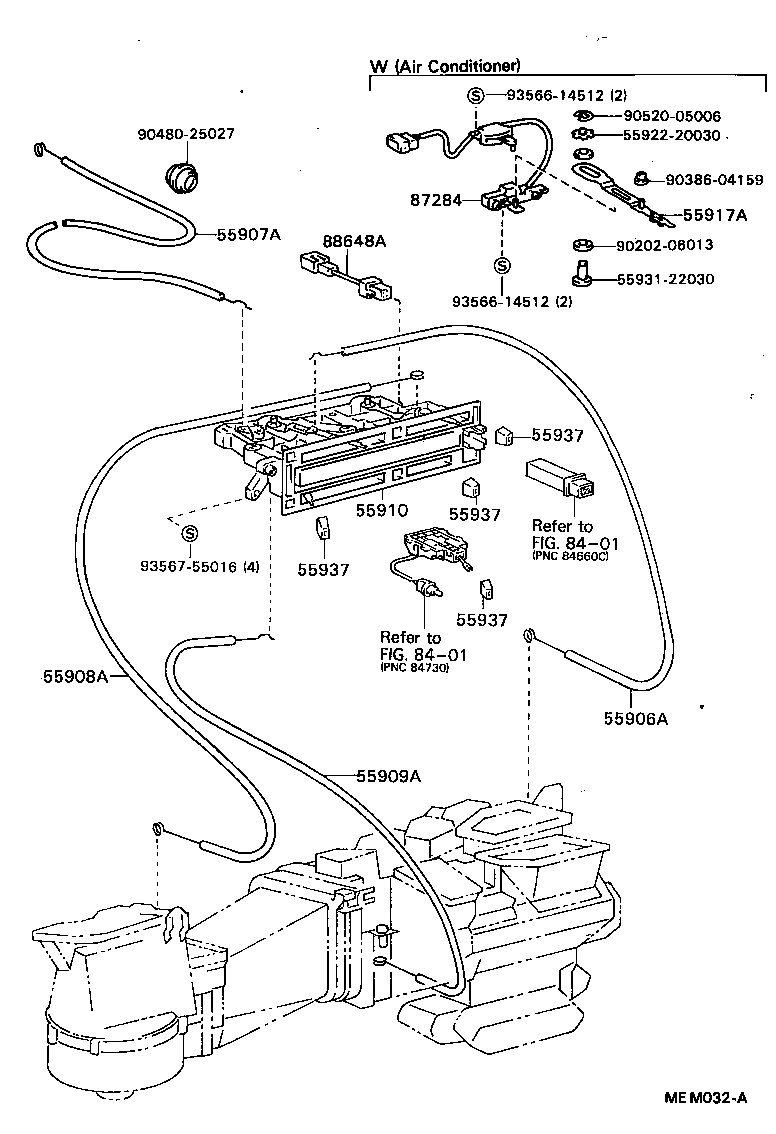

CONTROL PANEL

diagram 55906A 55907A 55908A 55909A 55910 55917A 5592220030 5593122030 55937 55937 55937 55937 8401 8401 87284 88648A 9020206013 9038604159 9048025027 9052005006 9356614512 9356614512 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-22100

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-22160

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-22050

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-22040

MX75,RX7#,YX72..GL,STD,XL

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22290

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-30082

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 4
88648A - WIRING, COOLER
88648-22140

MX75,RX7#,YX72..GL,STD,XL

 1
Common parts
55922-20030
55931-22030
90202-06013
90386-04159
90480-25027
90520-05006
93566-14512
93567-55016
Linked diagrams
8401

ILLUST NO. 3 OF 3(8810-9302)RHD

Click highlighted areas on diagram

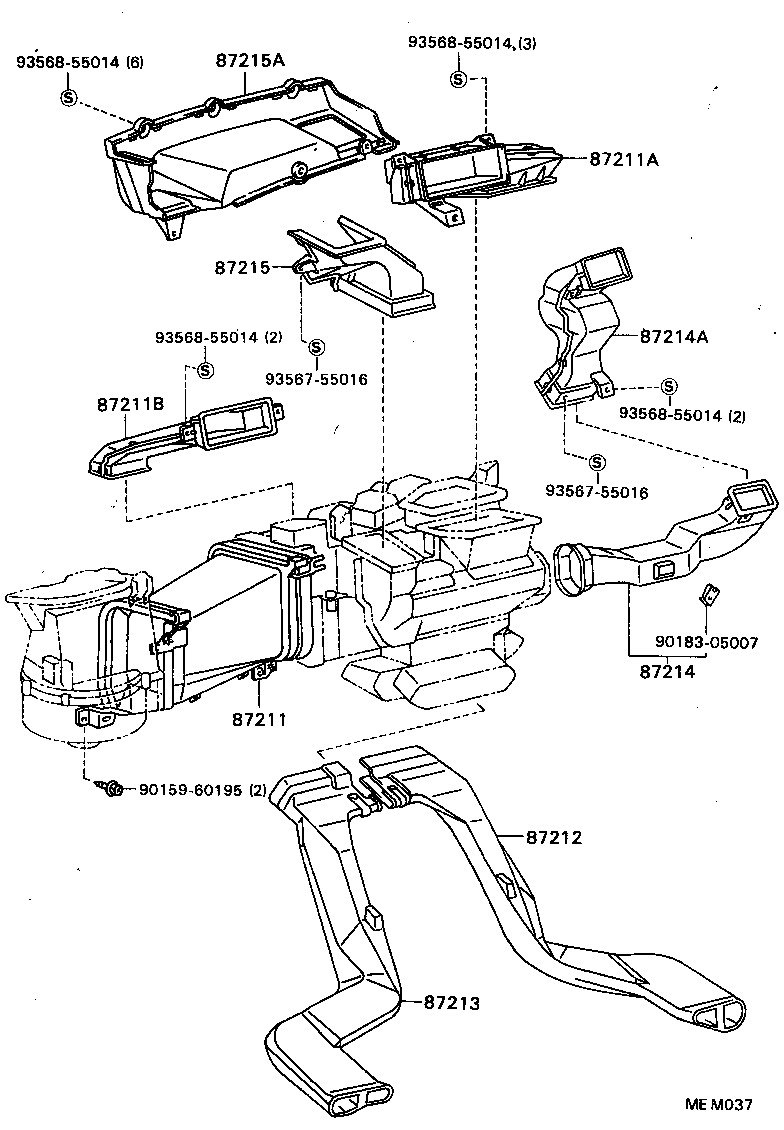

AIR DUCT

diagram 87211 87211A 87211B 87212 87213 87214 87214A 87215 87215A 9015960195 9018305007 9356755016 9356755016 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87211-22100

MX75,RX7#,YX72..RHD..(GL,STD,XL)

 1
87211A - DUCT, AIR, NO.2
55088-22060

GX71,MX75,RX7#,YX72..RHD

 1
87211B - DUCT, AIR, NO.3
55089-22010

GX71,MX75,RX7#,YX72..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87202-22021

GX71,MX75,RX7#,YX72

 1
87202-22021

GX71,MX75,RX7#,YX72

 1
87213 - DUCT, AIR, REAR NO.2
87203-22031

GX71,MX75,RX7#,YX72

 1
87203-22031

GX71,MX75,RX7#,YX72

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-22060

MX75,RX7#,YX72..(GL,STD,XL)..SA

W(AIR CONDITIONER)

 1
55085-22060

GX71,MX75,RX7#,YX72..SA

 1
55085-22070

MX75,RX7#,YX72..(GL,STD,XL)..SA

W(AIR CONDITIONER)

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-22050

GX71,MX75,RX7#,YX72..SA

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-22010

GX71,MX75,RX7#,YX72..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55087-22100

GX71,MX75,RX7#,YX72..RHD

 1
Common parts
90159-60195
90183-05007
93567-55016
93568-55014
