RX72RG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

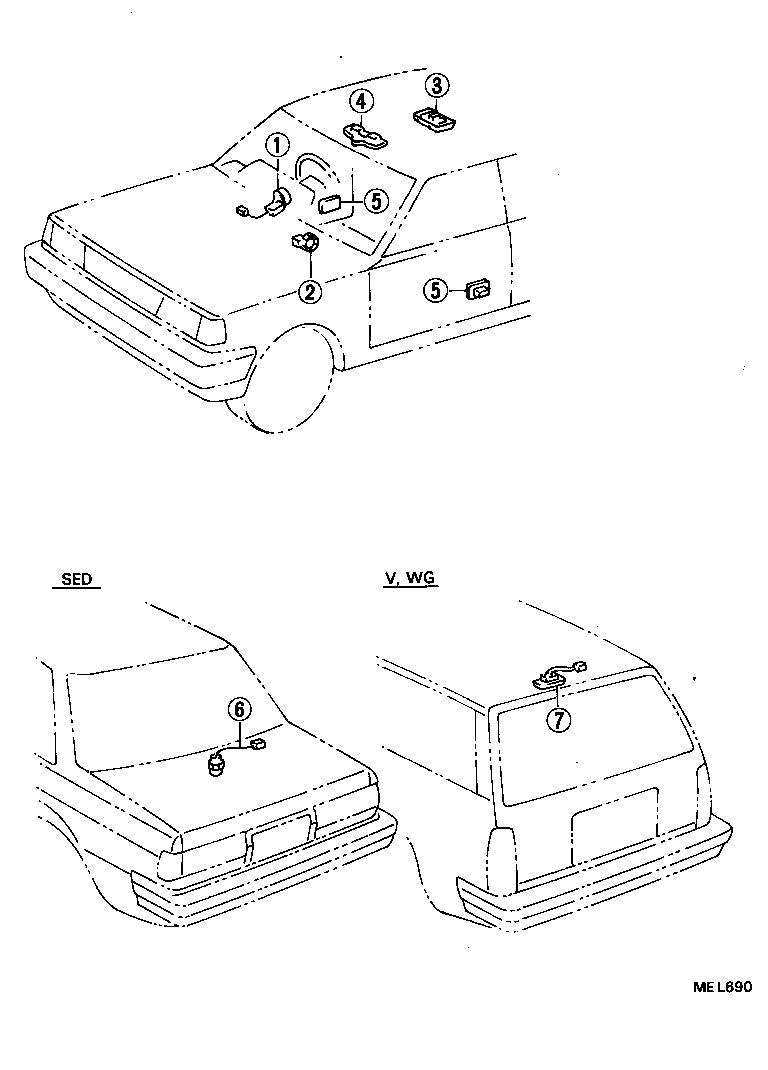

ILLUST NO. 1 OF 2(8810-9302)

Click highlighted areas on diagram

diagram 12530
Part # Description Qty Price

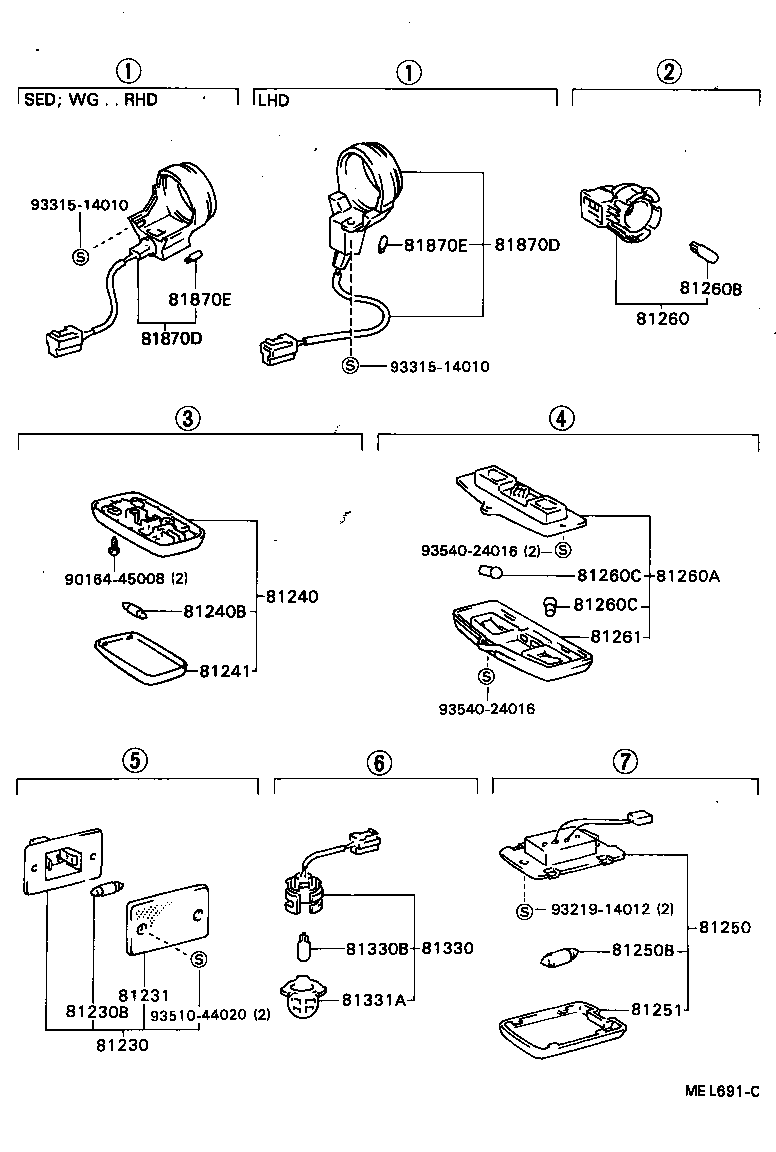

ILLUST NO. 2 OF 2(8810-9302)

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260B 81260C 81260C 81261 81330 81330B 81331A 81870D 81870D 81870E 81870E 9016445008 9321914012 9331514010 9331514010 9351044020 9354024016 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1203014

RX72..XL..(GEN,V)

BLUE,TRIM8#

 1
81240-1203016

RX72..XL..(GEN,V)

SABLE,TRIM3#,4#

 1
81240-1203012

RX72..XL..(GEN,V)

NEW MAROON,TRIM3#

 1
81240-1203016

RX7#,YX72..STD,XL

SABLE,TRIM4#

 1
81240-1203033

RX72..XL..(GEN,V)

MEDIUM GRAY,TRIM1#

 1
81240-1203033

RX7#,YX72..STD,XL

MEDIUM GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX71,MX75,RX7#,YX72

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

RX7#,YX72..STD,XL

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-23020

RX72

 1
81250B - BULB, ROOM LAMP, NO.2
99132-12100

RX72

12V 10W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-23010

RX72

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

GX71,MX75,RX7#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GX71,MX75,RX7#

12V 1.2W W/O SOCKET

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-22010

GX71,MX75,RX7#..RHD

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-22010

GX71,MX75,RX7#..RHD

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

GX71,MX75,RX7#..RHD

14V 1.4W

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

GX71,MX75,RX7#..RHD

14V 1.4W

 1
Common parts
90164-45008
93219-14012
93315-14010
93510-44020
93540-24016
