RX72LG-XWPESV (1988)
Toyota Cressida Wagon
Production
Oct 1988
-
Feb 1993
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8810- )LHD

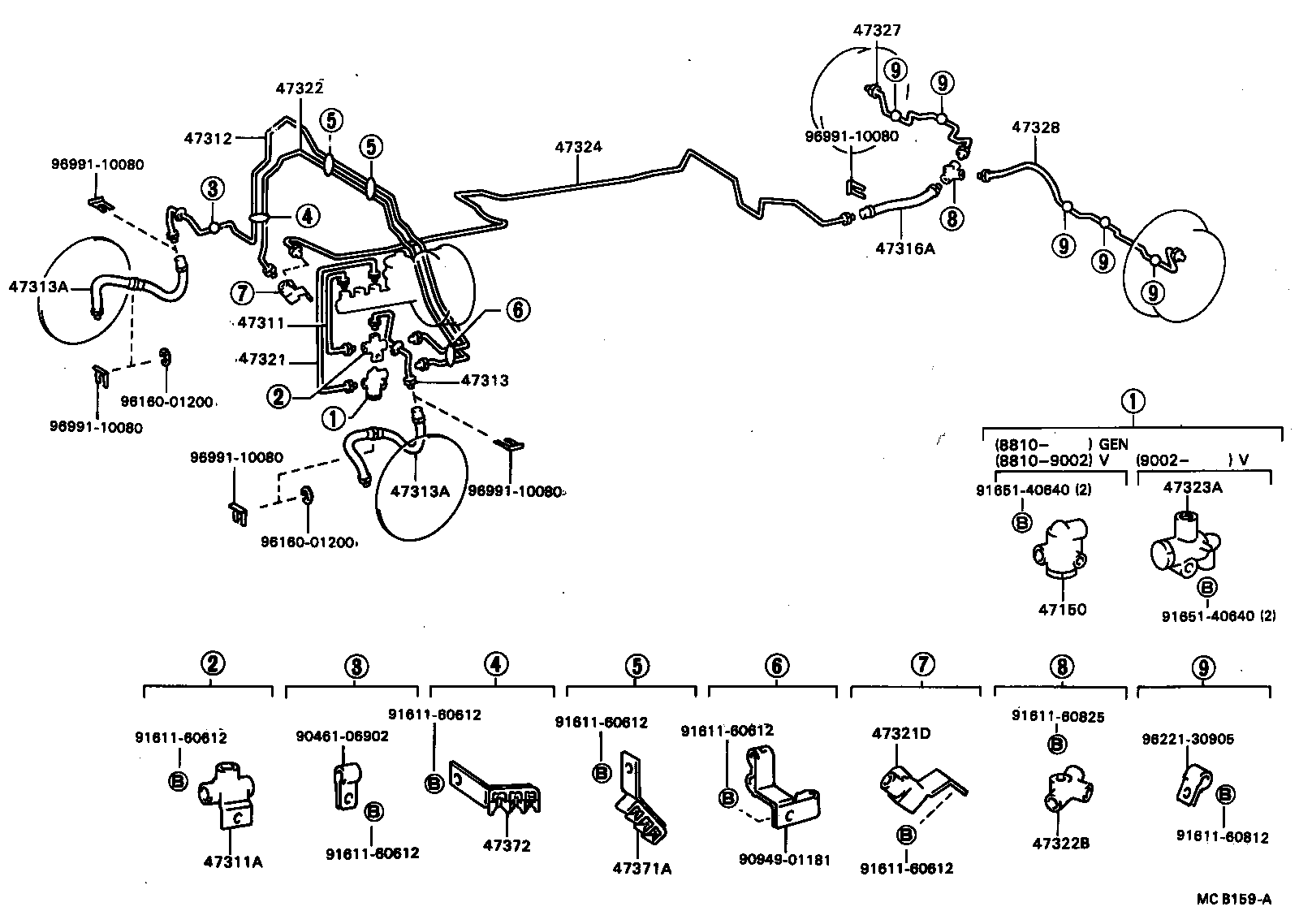

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12031 |
RX72..GEN,V |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-22260 |
RX72..LHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10004 |
RX72..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-22120 |
RX72..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-22260 |
RX72..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02462 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02462 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33055 |
RX72 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-22120 |
RX72..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10119 |
RX7#,YX72 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-22160 |
RX72..LHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
RX72,YX72 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-22010 |
RX72..V |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-23110 |
RX72 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-23070 |
RX72,YX72 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-23060 |
YX72;RX72..4FC |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-22020 |
RX72..LHD |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| Common parts | ||||
| 90461-06902 | ||||
| 90949-01181 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60825 | ||||
| 91651-40640 | ||||
| 96160-01200 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||
