RX72LG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8810- )

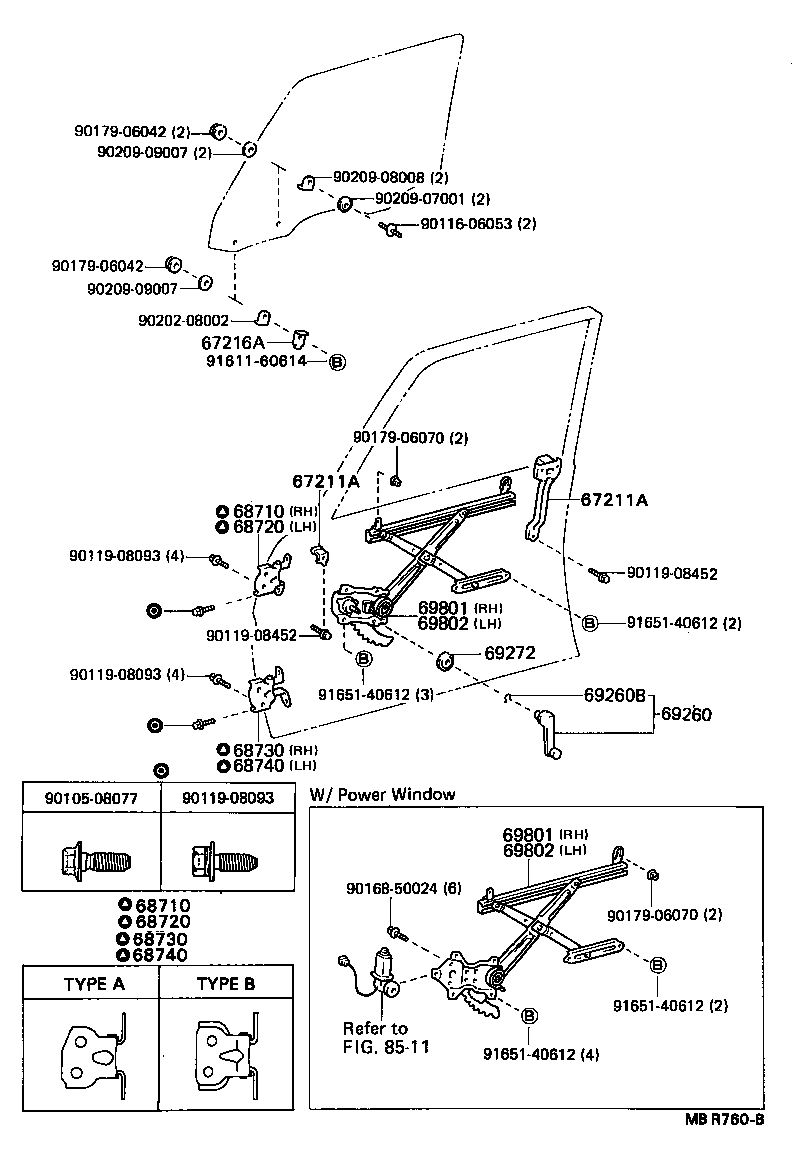

Click highlighted areas on diagram

diagram 67211A 67211A 67216A 68710 68710 68720 68720 68730 68730 68740 68740 69260 69260B 69272 69801 69801 69802 69802 8511 9010508077 9011606053 9011908093 9011908093 9011908093 9011908452 9011908452 9016850024 9017906042 9017906042 9017906070 9017906070 9020208002 9020907001 9020908008 9020909007 9020909007 9161160614 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22010

GX71,MX75,RX7#,YX72

RH-FRONT

 1
67205-22020

GX71,MX75,RX7#,YX72

RH-REAR

 1
67212-22010

RX72..GEN,V

FRONT-LH

 2
67212-22010

GX71,MX75,RX7#,YX72

LH-FRONT

 2
67206-22010

GX71,MX75,RX7#,YX72

LH-REAR

 1
67205-22020

RX72..GEN,V

REAR-RH

 1
67206-22010

RX72..GEN,V

REAR-LH

 1
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22010

GX71,MX75,RX7#,YX72

RH-FRONT

 1
67205-22020

GX71,MX75,RX7#,YX72

RH-REAR

 1
67212-22010

RX72..GEN,V

FRONT-LH

 2
67212-22010

GX71,MX75,RX7#,YX72

LH-FRONT

 2
67206-22010

GX71,MX75,RX7#,YX72

LH-REAR

 1
67205-22020

RX72..GEN,V

REAR-RH

 1
67206-22010

RX72..GEN,V

REAR-LH

 1
67216A - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-22010

GX71,MX75,RX7#,YX72

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

GX71,MX75,RX7#,YX72

 1
68710-22050

RX72..GEN,V

TYPE B

 1
68710-20060

RX72..GEN,V

TYPE A

 1
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

GX71,MX75,RX7#,YX72

 1
68710-22050

RX72..GEN,V

TYPE B

 1
68710-20060

RX72..GEN,V

TYPE A

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

RX72..GEN,V

TYPE A

 1
68720-20050

GX71,MX75,RX7#,YX72

 1
68720-22040

RX72..GEN,V

TYPE B

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

RX72..GEN,V

TYPE A

 1
68720-20050

GX71,MX75,RX7#,YX72

 1
68720-22040

RX72..GEN,V

TYPE B

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

RX72..GEN,V

 1
68730-24010

RX72..GEN,V

TYPE A

 1
68730-32010

RX72..GEN,V

TYPE B

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

RX72..GEN,V

 1
68730-24010

RX72..GEN,V

TYPE A

 1
68730-32010

RX72..GEN,V

TYPE B

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

RX72..GEN,V

TYPE A

 1
68740-24010

RX72..GEN,V

 1
68740-32010

RX72..GEN,V

TYPE B

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

RX72..GEN,V

TYPE A

 1
68740-24010

RX72..GEN,V

 1
68740-32010

RX72..GEN,V

TYPE B

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2203016

RX72..4FC;RX72..XL..(GEN,V)

SABLE,TRIM4#

 2
69260-2203024

RX72..4FC;RX72..XL..(GEN,V)

DARK BLUE,TRIM8#

 2
69260-2203032

RX72..4FC;RX72..XL..(GEN,V)

NEW MAROON,TRIM3#

 2
69260-2203023

RX72..4FC;RX72..XL..(GEN,V)

MEDIUM GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

RX7#..XL

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

RX72..4FC;RX72..XL..(GEN,V)

NATURAL WHITE,TRIM3#,4#,8#

 2
69285-2201008

RX72..4FC;RX72..XL..(GEN,V)

NATURAL WHITE,TRIM1#,3#,4#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-22130

RX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-22130

RX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22120

RX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22120

RX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL

 1
Common parts
90105-08077
90116-06053
90119-08093
90119-08452
90168-50024
90179-06042
90179-06070
90202-08002
90209-07001
90209-08008
90209-09007
91611-60614
91651-40612
Linked diagrams
8511
