RX72LG-XWMNS (1988)
Toyota Cressida Wagon
Production
Oct 1988
-
Feb 1993
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(8810- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2215204 |
RX72..GEN,V BLUE,TRIM8# |
1 | ||
| 46201-2215206 |
MX75..GL;GX71,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 46201-2215213 |
RX72..GEN,V MIDIUM GRAY,TRIM1# |
1 | ||
| 46201-2215213 |
MX75..GL;GX71,RX7#,YX72 MIDIUM GRAY,TRIM1# |
1 | ||
| 46201-2215202 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2203003 |
RX72..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 46217-2203002 |
RX72..GEN,V NEW MAROON,TRIM3# |
1 | ||
| 46217-2203006 |
GX71,MX75,RX7#,YX72 SABLE,TRIM4# |
1 | ||
| 46217-2203003 |
GX71,MX75,RX7#,YX72 MEDIUM GRAY,TRIM1# |
1 | ||
| 46217-2203004 |
RX72..GEN,V DARK BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-22060 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-22020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-22060 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-08037 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46361C - GROMMET(FOR PARKING BRAKE PULL ROD) | ||||
| 90480-01292 |
GX71,MX75,RX7#,YX72 |
1 | ||
| Common parts | ||||
| 90119-08309 | ||||
| 90468-14004 | ||||

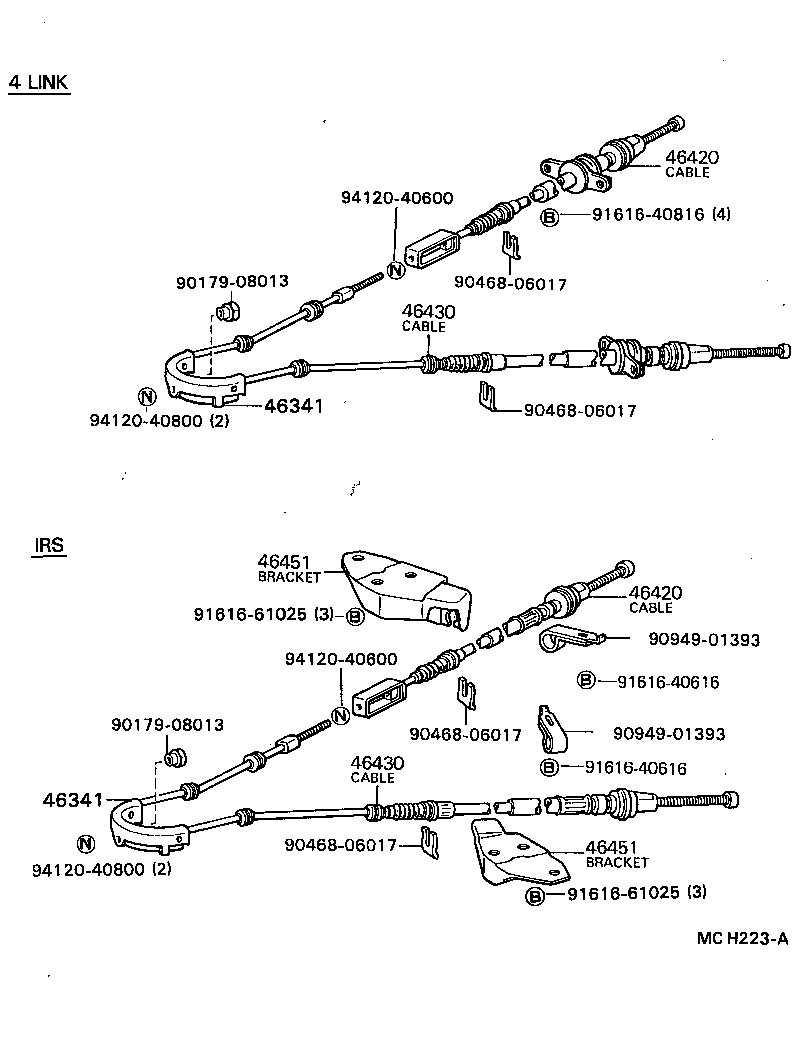

ILLUST NO. 2 OF 3(8810- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-23140 |
RX72 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-23140 |
RX72 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-23100 |
RX72 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-23100 |
RX72 |
1 | ||
| Common parts | ||||
| 90179-08013 | ||||
| 90468-06017 | ||||
| 90949-01393 | ||||
| 91616-40616 | ||||
| 91616-40816 | ||||
| 91616-61025 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
