RX72LG-XWMNS (1988)

Toyota Cressida Wagon

Production Oct 1988 - Feb 1993
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8906-9302)22R

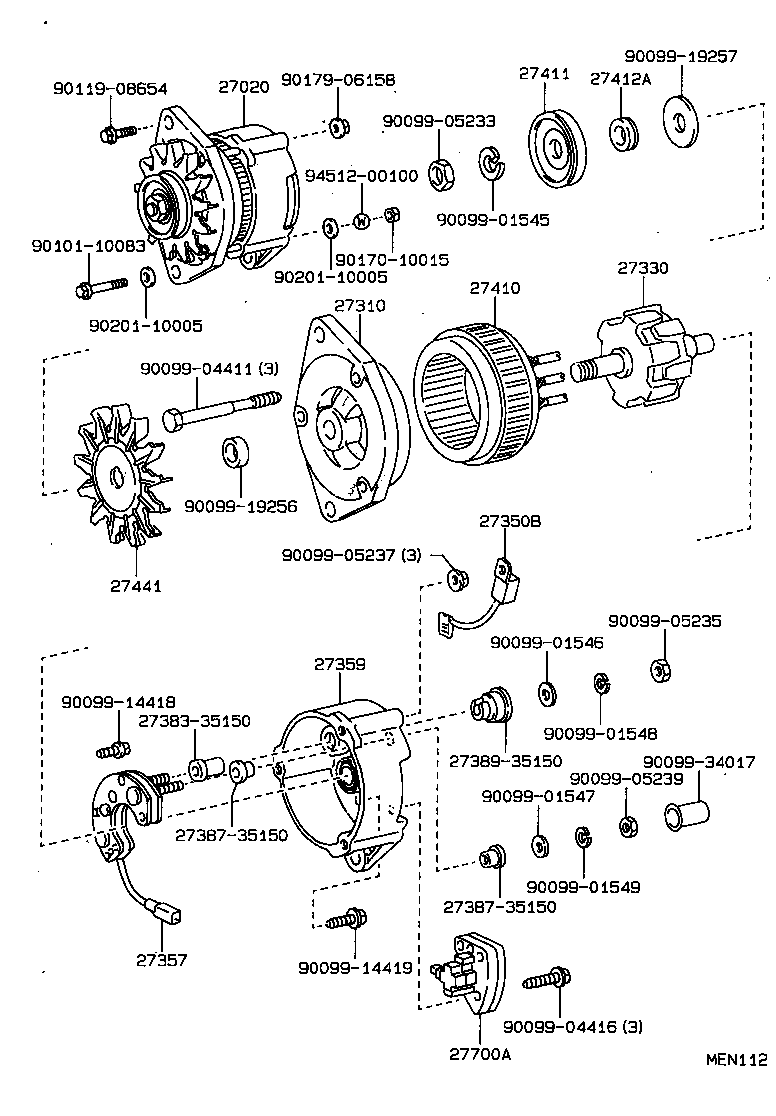

Click highlighted areas on diagram

12V 65A

diagram 27020 27310 27330 27350B 27357 27359 2738335150 2738735150 2738735150 2738935150 27410 27411 27412A 27441 27700A 9009901545 9009901546 9009901547 9009901548 9009901549 9009904411 9009904416 9009905233 9009905235 9009905237 9009905239 9009914418 9009914419 9009919256 9009919257 9009934017 9010110083 9011908654 9017010015 9017906158 9020110005 9020110005 9451200100
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35080

22R..RX7#

12V 65A

 1
27060-34040

22R..RX7#

12V 65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35150

22R..RX7#

 1
27310-35020

22R..RX7#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040

22R..RX7#

 1
27330-35150

22R..RX7#

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R..RX7#

 1
90099-52095

22R..RX7#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-35150

22R..RX7#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-28030

22R..RX7#

 1
27359-35150

22R..RX7#

 1
27410 - STATOR ASSY, ALTERNATOR
27410-35150

22R..RX7#

 1
27410-43040

22R..RX7#

 1
27411 - PULLEY, ALTERNATOR
27411-26111

22R..RX7#

 1
27411-35150

22R..RX7#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-44031

22R..RX7#

 1
27412-35150

22R..RX7#

 1
27441 - FAN, ALTERNATOR
27441-35150

22R..RX7#

 1
27441-34111

22R..RX7#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-35050

22R..RX72

 1
27700-43010

22R..RX7#

 1
27700-35050

22R..RX7#

 1
Common parts
27383-35150
27387-35150
27389-35150
90099-01545
90099-01546
90099-01547
90099-01548
90099-01549
90099-04411
90099-04416
90099-05233
90099-05235
90099-05237
90099-05239
90099-14418
90099-14419
90099-19256
90099-19257
90099-34017
90101-10083
90119-08654
90170-10015
90179-06158
90201-10005
94512-00100

(8810-8906)22R

Click highlighted areas on diagram

12V 60A

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412A 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110083 9011908654 9017010015 9017906158 9020110005 9020110005 9451101400 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35080

22R..RX7#

12V 65A

 1
27060-34040

22R..RX7#

12V 65A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

22R..RX7#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35150

22R..RX7#

 1
27310-35020

22R..RX7#

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

22R..RX7#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

22R..RX7#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-43040

22R..RX7#

 1
27330-35150

22R..RX7#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

22R..RX7#

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

22R..RX7#

 1
90099-52095

22R..RX7#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

22R..RX7#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-28030

22R..RX7#

 1
27359-35150

22R..RX7#

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-43040

22R..RX7#

 1
27371 - BRUSH, ALTERNATOR
27371-31011

22R..RX7#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R..RX7#

 2
27410 - STATOR ASSY, ALTERNATOR
27410-35150

22R..RX7#

 1
27410-43040

22R..RX7#

 1
27411 - PULLEY, ALTERNATOR
27411-26111

22R..RX7#

 1
27411-35150

22R..RX7#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-44031

22R..RX7#

 1
27412-35150

22R..RX7#

 1
27441 - FAN, ALTERNATOR
27441-35150

22R..RX7#

 1
27441-34111

22R..RX7#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-35050

22R..RX72

 1
27700-43010

22R..RX7#

 1
27700-35050

22R..RX7#

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10083
90119-08654
90170-10015
90179-06158
90201-10005
94511-01400
94512-01000
