RX72LG-XWMESV (1988)
Toyota Cressida Wagon
Production
Oct 1988
-
Feb 1993
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

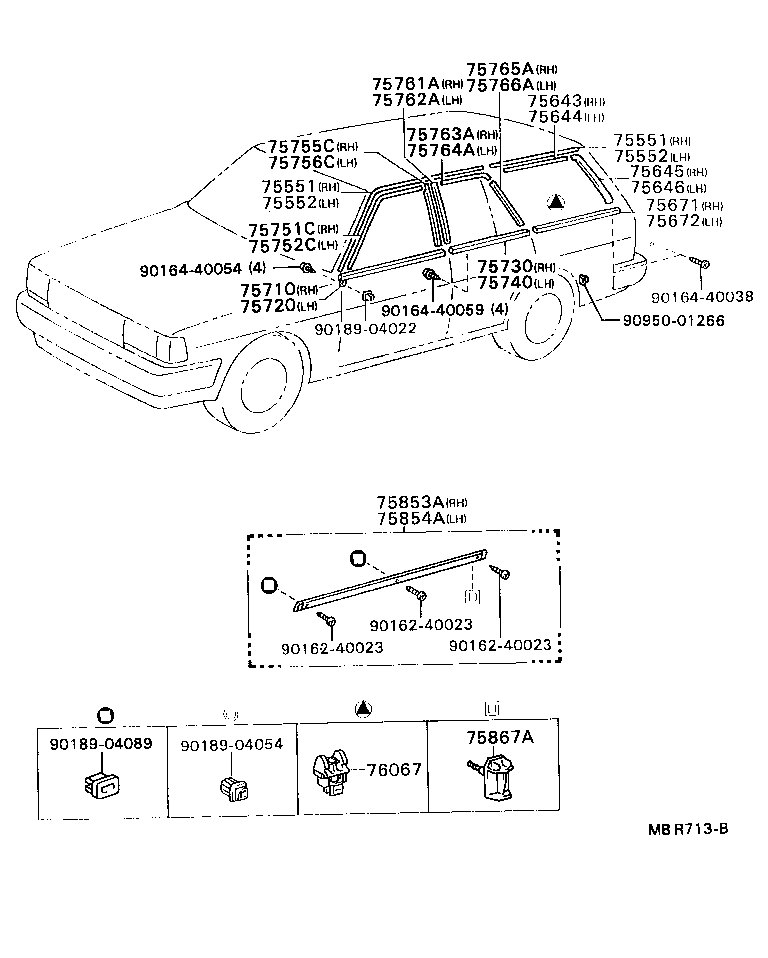

ILLUST NO. 2 OF 2(8810- )RX72
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75505-23010 |
RX72 REAR |
1 | ||
| 75551-23010 |
RX72 FRONT |
1 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75505-23010 |
RX72 REAR |
1 | ||
| 75551-23010 |
RX72 FRONT |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-23010 |
RX72 FRONT |
1 | ||
| 75506-23010 |
RX72 REAR |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-23010 |
RX72 FRONT |
1 | ||
| 75506-23010 |
RX72 REAR |
1 | ||
| 75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH | ||||
| 75643-23010 |
RX72 |
1 | ||
| 75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH | ||||
| 75644-23010 |
RX72 |
1 | ||
| 75645 - MOULDING, QUARTER WINDOW, OUTSIDE REAR RH | ||||
| 75645-23010 |
RX72 |
1 | ||
| 75646 - MOULDING, QUARTER WINDOW, OUTSIDE REAR LH | ||||
| 75646-23010 |
RX72 |
1 | ||
| 75671 - MOULDING, QUARTER BELT, RH | ||||
| 75671-23010 |
RX72 |
1 | ||
| 75672 - MOULDING, QUARTER BELT, LH | ||||
| 75672-23010 |
RX72 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-22061 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-22061 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 75730 - MOULDING ASSY, REAR DOOR BELT, RH | ||||
| 75730-22060 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 75740 - MOULDING ASSY, REAR DOOR BELT, LH | ||||
| 75740-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 75853A - MOULDING, ROCKER PANEL, CENTER RH | ||||
| 75850-29166 |
MX75,RX7#,YX72..GL,STD,XL |
1 | ||
| 75854A - MOULDING, ROCKER PANEL, CENTER LH | ||||
| 75860-29096 |
MX75,RX7#,YX72..GL,STD,XL |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-22050 |
MX75,RX7#,YX72..GL,STD,XL |
6 | ||
| 76067 - CLIP SUB-ASSY, QUARTER BELT MOULDING, NO.1 | ||||
| 76067-23010 |
RX72 |
6 | ||
| Common parts | ||||
| 90162-40023 | ||||
| 90164-40038 | ||||
| 90164-40054 | ||||
| 90164-40059 | ||||
| 90189-04022 | ||||
| 90189-04054 | ||||
| 90189-04089 | ||||
| 90950-01266 | ||||
