RX72LG-XWMESV (1988)
Toyota Cressida Wagon
Production
Oct 1988
-
Feb 1993
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8810- )

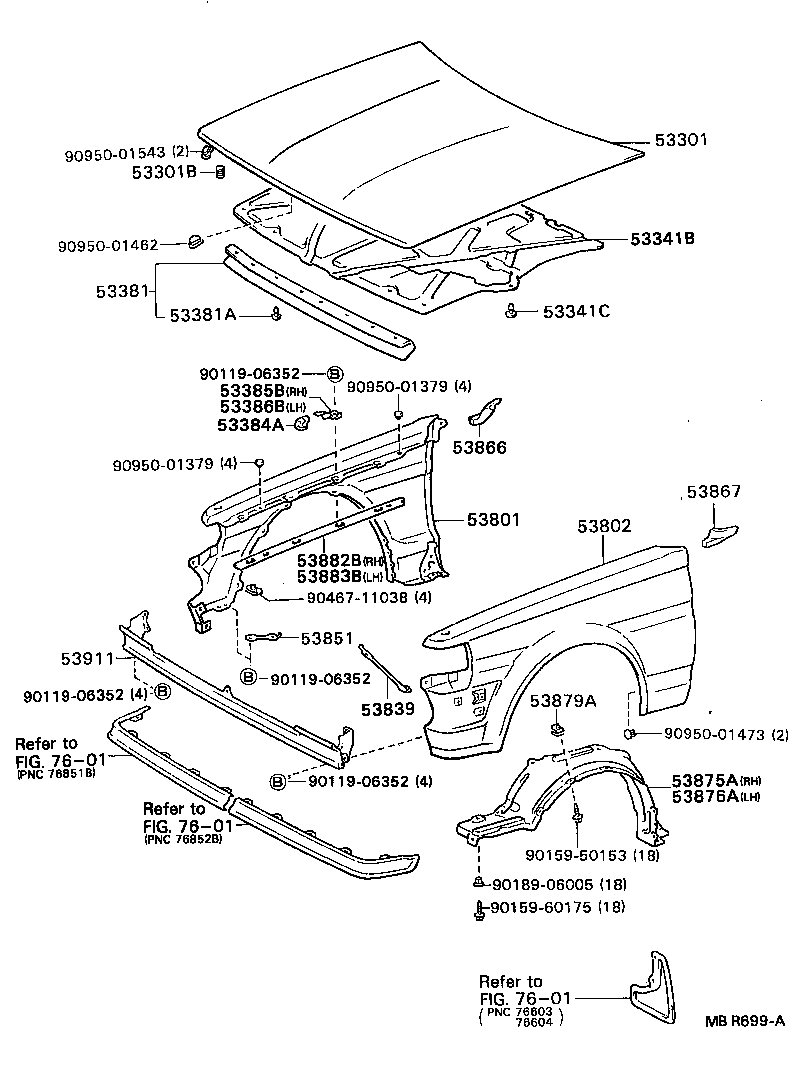

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-91607 |
RX72..V |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15004 |
GX71,MX75,RX7#,YX72 L=29 |
2 | ||
| 90541-15111 |
GX71,MX75,RX7#,YX72 L=26 |
2 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-22071 |
RX72 |
1 | ||
| 53341-22071 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53341-22072 |
RX72 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-0900811 |
RX72..GEN,V BLACK,TRIM3#,4#,8# |
15 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-22060 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GX71,MX75,RX7#,YX72 |
7 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-22050 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-20020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-20020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-22890 |
RX72..GEN,V |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-22860 |
RX72..GEN,V |
1 | ||
| 53839 - BRACE, FRONT FENDER, LH | ||||
| 53852-22020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH | ||||
| 53851-22020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-22050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-22050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-22040 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
GX71,MX75,RX7#,YX72 |
8 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-22050 |
RX72..GEN,V |
1 | ||
| 53882-22060 |
RX72 |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-22060 |
RX72 |
1 | ||
| 53882-22050 |
RX72..GEN,V |
1 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53901-22100 |
RX72..V |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90159-50153 | ||||
| 90159-60175 | ||||
| 90189-06005 | ||||
| 90467-11038 | ||||
| 90950-01379 | ||||
| 90950-01462 | ||||
| 90950-01473 | ||||
| 90950-01543 | ||||
| Linked diagrams | ||||
| 7601 | ||||
