MX75R-XEPGFN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8810-9205)GX71,MX75,RX73,YX72

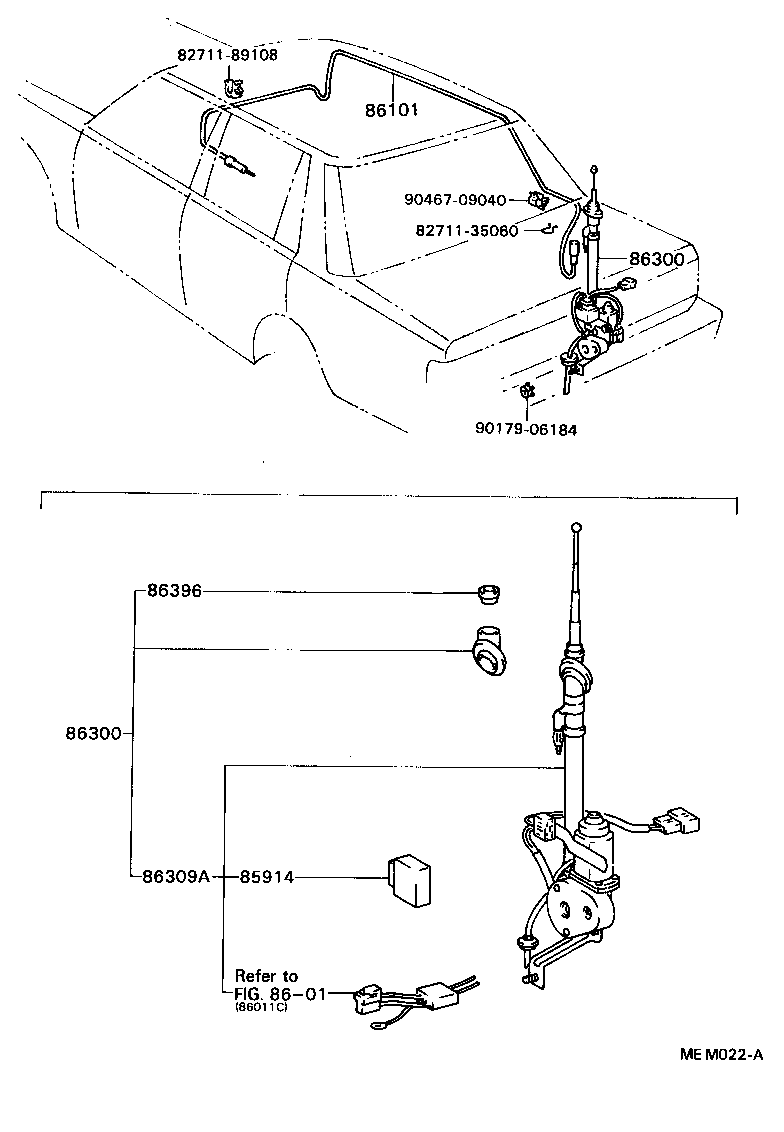

Click highlighted areas on diagram

diagram 8271135060 8271189108 85914 8601 86101 86300 86300 86309A 86396 9017906184 9046709040
Part # Description Qty Price
85914 - RELAY, MOTOR ANTENNA CONTROL
85914-14020

RX72..GEN,V;GX71,MX75..GLX

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-22170

GX71,MX75..GLX

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22211

GX71,MX75..GLX

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22211

GX71,MX75..GLX

 1
86309A - POLE SUB-ASSY, MOTOR ANTENNA
86309-22051

GX71,MX75..GLX

 1
86396 - NUT, ANTENNA
86396-22020

GX71,MX75..GLX

 1
Common parts
82711-35060
82711-89108
90179-06184
90467-09040
Linked diagrams
8601
