MX75R-XEPGFN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8812- )GX71,MX75,RX73,YX72

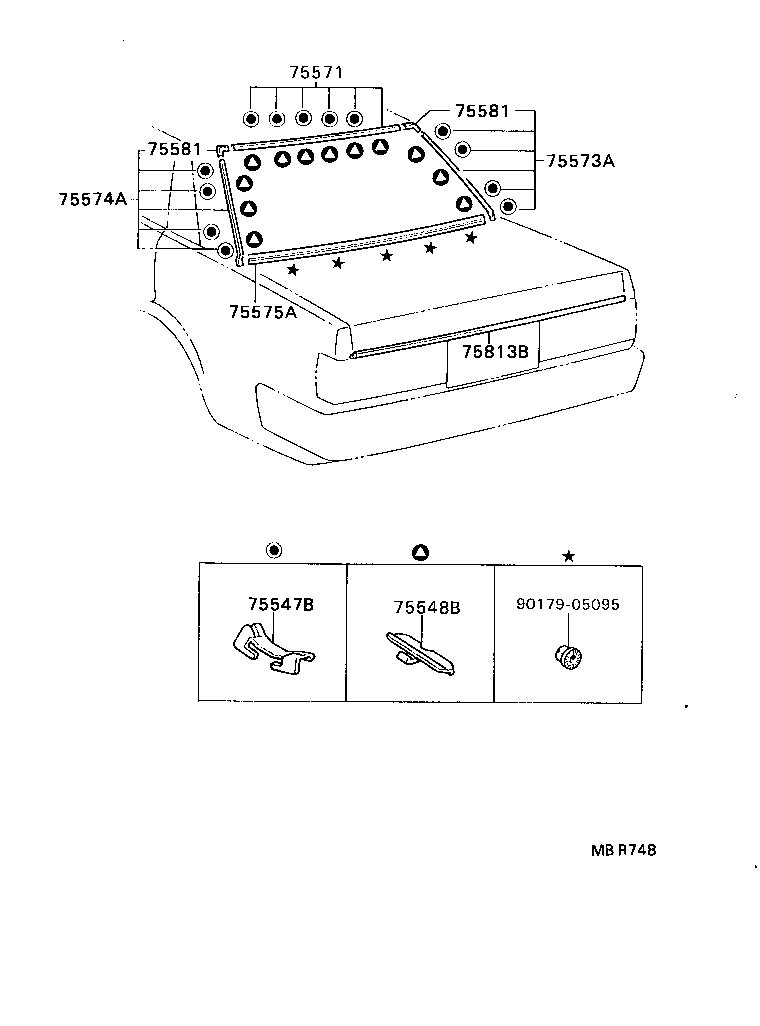

Click highlighted areas on diagram

diagram 75547B 75548B 75571 75573A 75574A 75575A 75581 75581 75813B 9017905095
Part # Description Qty Price
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-22030

GX71,MX75,RX73,YX72

 13
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-22101

GX71,MX75,RX73,YX72

 12
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22110

GX71,MX75,RX73,YX72

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75573-22110

GX71,MX75,RX73,YX72

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75574-22090

GX71,MX75,RX73,YX72

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75507-22060

GX71,MX75,RX73,YX72

 1
75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER
75581-22050

GX71,MX75,RX73,YX72

 2
75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER
75581-22050

GX71,MX75,RX73,YX72

 2
75813B - MOULDING, LUGGAGE COMPARTMENT DOOR
75813-22090

GX71,MX75,RX73,YX72

 1
Common parts
90179-05095
