MX75R-XEPGFN (1988)
Toyota Cressida Wagon
Production
Dec 1988
-
May 1992
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

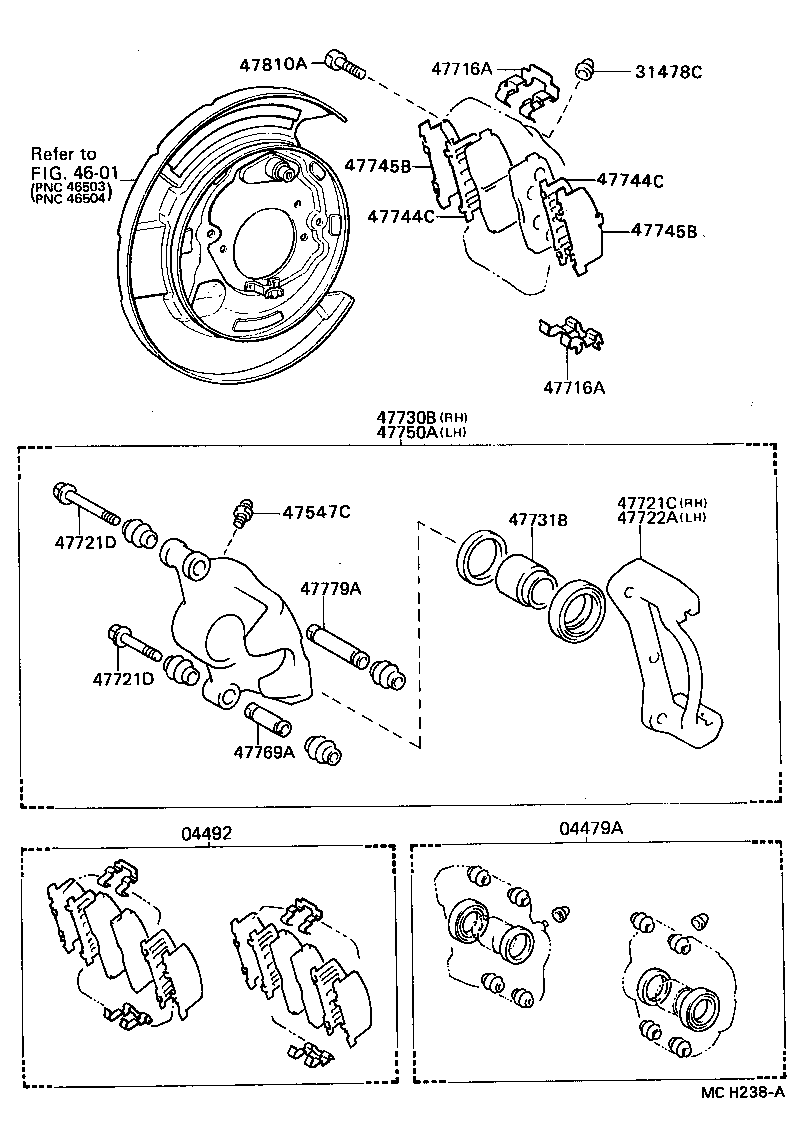

ILLUST NO. 1 OF 2(8812- )MX75
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-30090 |
MX75 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-22070 |
MX75 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MX75 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12040 |
MX75 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-40020 |
MX75 |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-40020 |
MX75 |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-22040 |
MX75 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-09005 |
MX75 *9-1.25PX62.5-20 |
2 | ||
| 90119-09006 |
MX75 *9-1.25PX85-20 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-09005 |
MX75 *9-1.25PX62.5-20 |
2 | ||
| 90119-09006 |
MX75 *9-1.25PX85-20 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-22040 |
MX75 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-22140 |
MX75 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-30060 |
MX75 |
2 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-22091 |
MX75 |
4 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-22091 |
MX75 |
4 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-22051 |
MX75 |
4 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-22051 |
MX75 |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-22140 |
MX75 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-40020 |
MX75 |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-40020 |
MX75 |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10379 |
MX75 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
ILLUST NO. 2 OF 2(8812- )MX75
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-22110 |
MX75 |
1 | ||
