MX75R-XEPGFN (1988)
Toyota Cressida Wagon
Production
Dec 1988
-
May 1992
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8812- )MX75

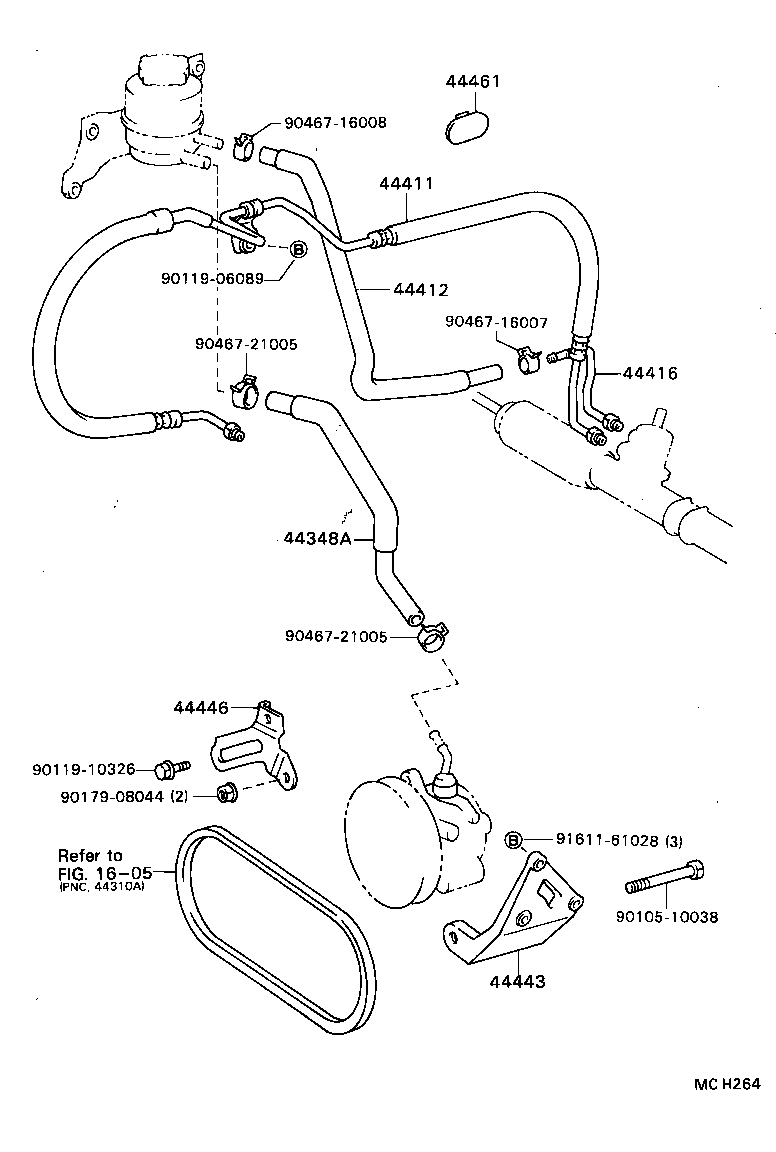

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-22230 |
MX75 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-22600 |
MX75 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-22350 |
GX71,MX75 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-22150 |
GX71,MX75 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-30100 |
MX75 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30100 |
MX75 |
1 | ||
| 44461 - INSULATOR, TUBE REFRIGERANT | ||||
| 44461-22020 |
GX71,MX75,RX7#..RHD |
2 | ||
| Common parts | ||||
| 90105-10038 | ||||
| 90119-06089 | ||||
| 90119-10326 | ||||
| 90179-08044 | ||||
| 90467-16007 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-61028 | ||||
| Linked diagrams | ||||
| 1605 | ||||
